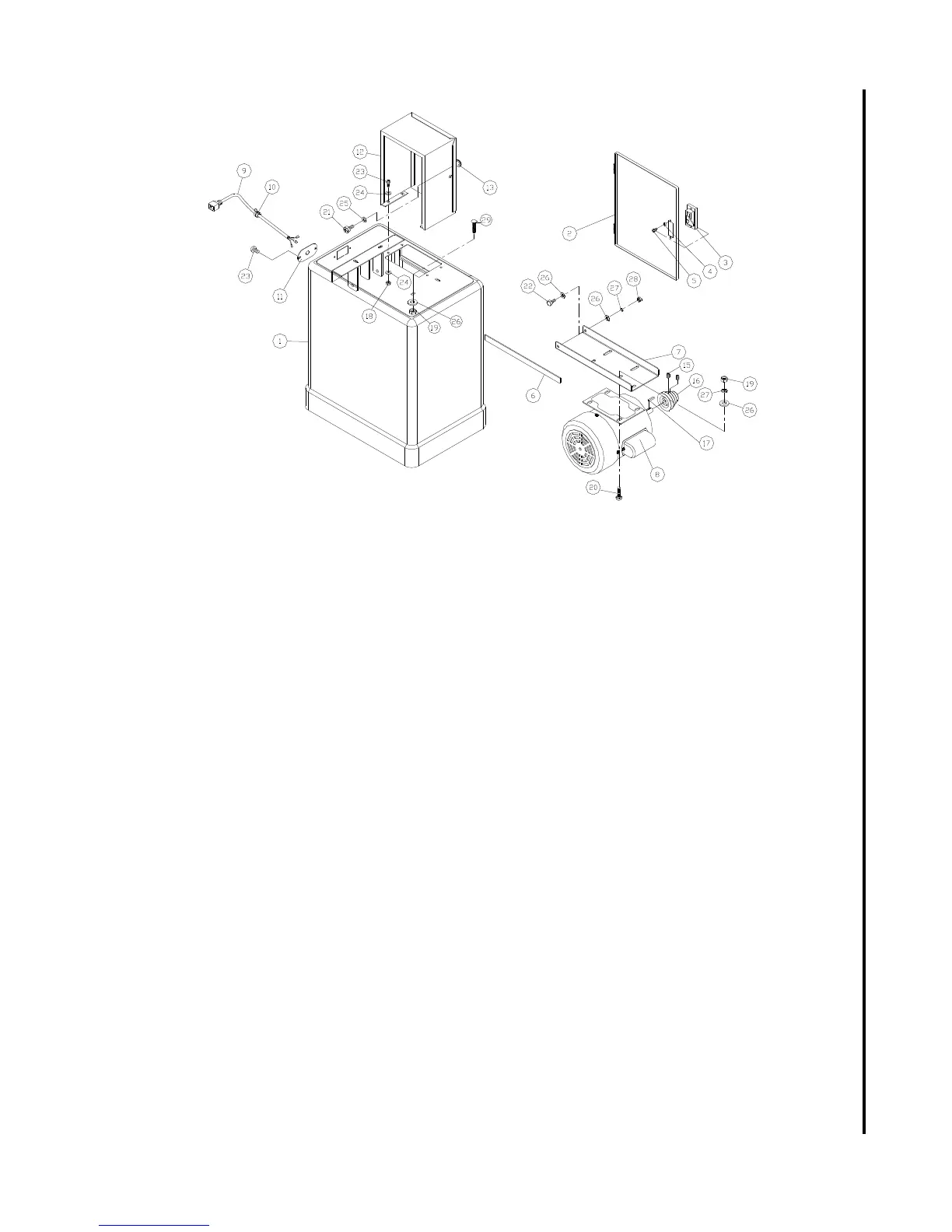

Exploded View and Parts List – Base – Models J-8201 and J-8203
Index No Part No Description Size Qty
1 ................ J-5513834G .............. Closed Stand ........................................................... ..................................... .1
.................. J-5507565G .............. Closed Stand Assembly w/o Motor .......................... ...................................... 1
2 ................ J-5513835G .............. Door ......................................................................... ...................................... 1
3 ................ 5513836 .................... Lock ......................................................................... ...................................... 1
4 ................ 5513837 .................... Washer .................................................................... ...................................... 1
5 ................ 5513838 .................... Pan Head Bolt.......................................................... M4x5 ............................. 2
.................. 5513858 .................... Lock Assembly (includes #3,4 and 5) ...................... ...................................... 1
6 ................ 5513839 .................... Pad .......................................................................... ..................................... 2
7 ................ J-5513861G .............. Motor Bracket ......................................................... ..................................... 1
8 ................ J-5784391 ................. Motor........................................................................ 115/230V, 1Ph .............. 1
.................. J-5784411 ................. Motor........................................................................ 230/460V, 3Ph ............. 1
9 ................ IM148004 .................. Motor Cord ............................................................... 1Ph................................ 1
.................. IM148005 .................. Motor Cord ............................................................... 3Ph 600V ...................... 1
10 .............. 5513842 .................... Strain Relief ............................................................. 6N-4,1PH ...................... 2
.................. 998630 ...................... Strain Relief ............................................................. 7P-2,3PH ...................... 2
11 .............. 5784281 .................... Strain Relief Plate .................................................... 1PH ............................... 1
.................. 612156 ...................... Strain Relief Plate .................................................... 3PH ............................... 1
12 .............. J-5513845G .............. Pulley Cover ............................................................ ...................................... 1
13 .............. 5513846 .................... Knob ........................................................................ ...................................... 1
15 .............. TS-1523011 .............. Set Screw ................................................................ M6x6 ............................. 2
16 .............. 5784682 .................... Pulley ....................................................................... ...................................... 1
17 .............. 5513859 .................... Key........................................................................... 5x5x40 .......................... 1
18 .............. TS-1540031 .............. Hex Nut .................................................................... M5 ................................. 4
19 .............. TS-2311081 .............. Hex Nut .................................................................... M8 ................................. 5
20 .............. 5513849 .................... Carriage Bolt ............................................................ M8x16 ........................... 4
21 .............. 5784331 .................... Hex Head Bolt.......................................................... M6x12 ........................... 1
22 .............. TS-1490041 .............. Hex Head Bolt.......................................................... M8x25 ........................... 2
23 .............. 5782761 .................... Pan Head Bolt.......................................................... M5x12 ..
......................... 6
24 .............. TS-1550031 .............. Flat Washer ............................................................. M5 ................................ 8
25 .............. 5511747 .................... Flat Washer ............................................................. M6 ................................. 1
26 .............. TS-1550061 .............. Flat Washer ............................................................. M8 ................................. 9
27 .............. 5511752 .................... Lock Washer ............................................................ M8 ................................. 6
28 .............. TS-1541031 .............. Nylon Nut ................................................................. M8 ................................. 2
29 .............. 5784683 .................... Carriage Bolt ............................................................ M8x50 ........................... 1
