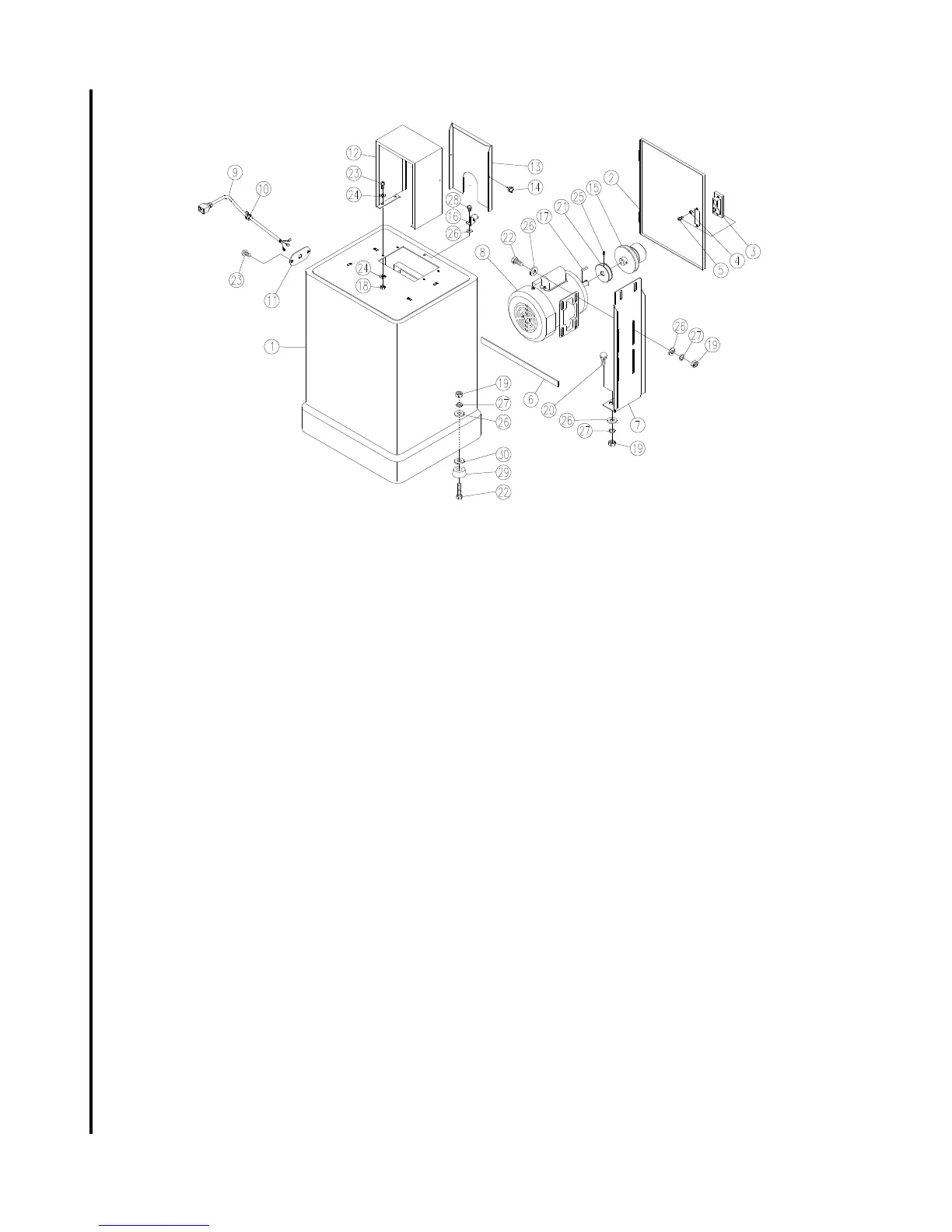

Exploded View and Parts List – Base – Models J-8201VS and J-8203VS
Index No Part No Description Size Qty
1 ................ J-5513860G .............. Closed Stand ........................................................... ...................................... 1
2 ................ J-5513835G .............. Door ......................................................................... ...................................... 1
3 ................ 5513836 .................... Lock ......................................................................... ...................................... 1
4 ................ 5513837 .................... Washer .................................................................... ...................................... 1
.................. 5513858 .................... Lock Assembly (include #3, 4 and 5) ....................... ...................................... 1
5 ................ 5513838 .................... Pan Head Bolt.......................................................... M4x5 ............................. 2
6 ................ 5513839 .................... Pad .......................................................................... ...................................... 2
7 ................ J-5784684G .............. Motor Bracket .......................................................... ...................................... 1
8 ................ J-5784391 ................. Motor........................................................................ 115/230V,1Ph ............... 1
.................. J-5784411 ................. Motor........................................................................ 230/460V,3Ph ............... 1
9 ................ IM148004 .................. Motor Cord ............................................................... 1Ph................................ 1
.................. IM148005 .................. Motor Cord ............................................................... 3Ph 600V ...................... 1
10 .............. 5513842 .................... Strain Relief ............................................................. 6N-4 1PH ...................... 2
.................. 998630 ...................... Strain Relief ............................................................. 7P-2 3PH ...................... 2
11 .............. 5784281 .................... Strain Relief Plate .................................................... 1PH ............................... 1
.................. 5784281 .................... Strain Relief Plate .................................................... 3PH ............................... 1
12 .............. J-5784685G .............. Doorframe ................................................................ ...................................... 1
13 .............. J-5784686G .............. Cover ....................................................................... ...................................... 1
14 .............. 5784687 .................... Knob ........................................................................ M5x12 ........................... 2
15 .............. 5784688 .................... Motor VS Pulley ....................................................... ...................................... 1
16 .............. 5784689 .................... Locate Plate ............................................................. ...................................... 1
17 .............. 5513859 .................... Key........................................................................... 5x5x40 .......................... 1
18 .............. TS-1540031 .............. Hex Nut .................................................................... M5 ................................. 4
19 .............. TS-2311081 .............. Hex Nut .................................................................... M8 ............................... 12
20 .............. 5513849 .................... Carriage Bolt ............................................................ M8x16 ........................... 4
21 .............. 5784690 .................... Motor Pulley ............................................................. ...................................... 1
22 .............. TS-1490041 .............. Hex Cap Screw ........................................................ M8x25 ........................... 8
23 .............. 5782761 .................... Pan Head Bolt.......................................................... M5x12 ........................... 6
24 .............. TS-1550031 .............. Flat Washer ............................................................. M5 ................................. 8
25 .............. TS-1523031 .............. Set Screw ................................................................ M6x10 ........................... 2
26 .............. TS-1550061 .............. Flat Washer ............................................................. M8 ............................... 16
27 .............. 5511752 .................... Lock Washer ............................................................ M8 .............................. 12
28 .............. TS-1490021 .............. Hex Cap S crew ........................................................ M8x16 .......................... 1
29 .............. 5784692 .................... Rubber Foot ............................................................. ...................................... 4
30 .............. 5784693 .................... Special Washer........................................................ ...................................... 4
