7

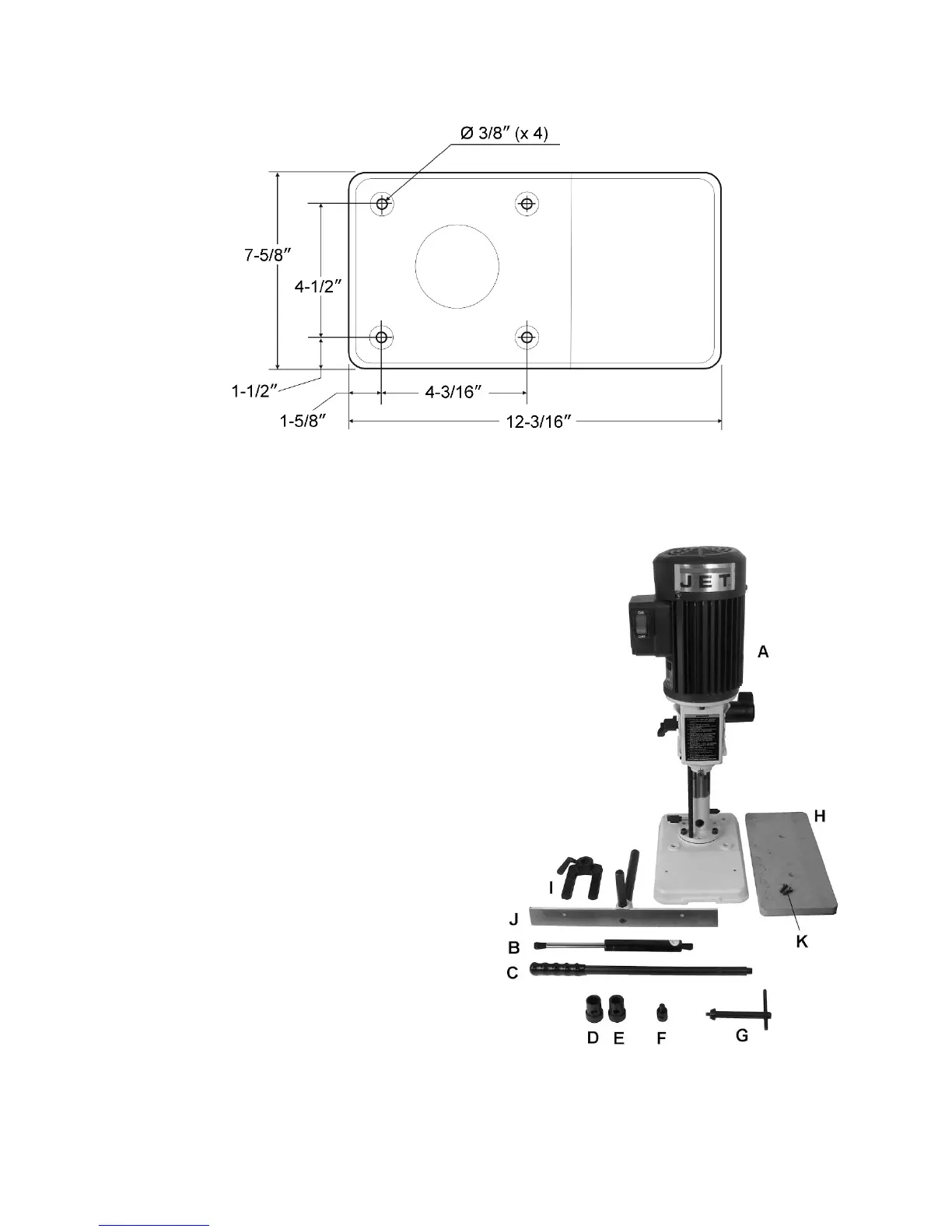

6.1 Mounting dimensions
Figure 6-1
7.0 Unpacking
Open shipping container and check for shipping
damage. Report any damage immediately to your
distributor and shipping agent. Do not discard any
shipping material until the Mortiser is assembled
and running properly.
Compare the contents of your container with the
following parts list to make sure all parts are intact.
Missing parts, if any, should be reported to your
distributor. Read the instruction manual thoroughly
for assembly, maintenance and safety instructions.
7.1 Contents
A. Mortising Machine
B. Hydraulic Cylinder
C. Handle
D. 3/4” Chisel Bushing
E. 5/8” Chisel Bushing
F. Spindle Extension Adapter
G. Chuck Key
H. Table
I. Hold Down
J. Fence Assembly
K. Flat Head Screws (2)
Owner’s Manual (not shown)
Product Registration Card (not shown
Figure 7-1
