7
Insert Plates
1. Always use an insert plate.
2. There are 2 oblong, and 2 round insert plates
included with the machine. The oblong insert
plates are used when the table is tilted for
bevel sanding. Each plate has a notch on the
outer edge to ensure that it is inserted
properly. (See page 9 to determine which
insert plate to use with a particular spindle.)
Setup for 90°
1. Loosen both knobs, (A, Figure 4) and place
the table in the 0° position.
2. Place a square (B, Figure 4) on the table.
Rest the long section of the square against the
sanding drum. The square should be flat
against the table and the sanding drum.
3. If the table needs adjustment loosen both
knobs and tilt the table so that the square is
flat against the table and sanding drum.
4. Make sure the pointer (C, Figure 4) reads 0°.
If the pointer needs adjusting loosen the screw
(D, Figure 4), and adjust to the correct
position.
5. Loosen lock nut (F, Figure 4), adjust the 90°
stop bolt (E, Figure 4) with a 13mm open
wrench so that it rests against the bottom side
of the table, and re-tighten the lock nut (F,
Figure 4) with a 12mm open wrench.
Setup for Bevel Sanding
1. Loosen both knobs (A, Figure 5) and adjust
the table to the desired angle.
2. Tighten both knobs.
Dust Collection
The dust port (B, Figure 5) can be hooked directly
to a 2” hose for dust collection.
See your local JET distributor for the complete line
of dust collectors, as well as Hoses and
Accessories. Customize your installation and
obtain maximum performance with JET dust
hoods, hoses, clamps, fittings, and blast gates.

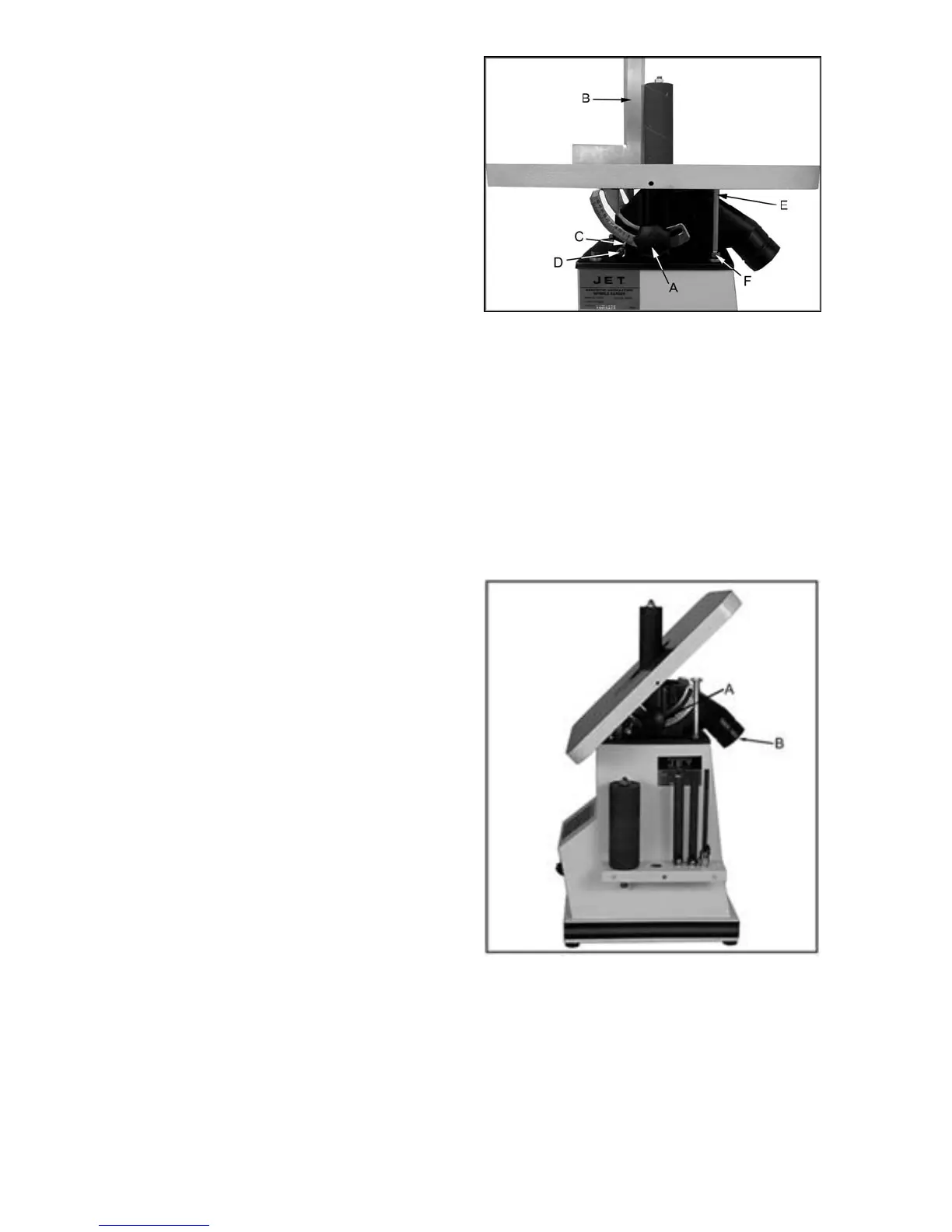

Figure 4
Figure 5
