8
Turning the Sander On & Off
Note: Before hooking the sander to the power
source, make sure the switch is in off position.
The sander can be turned on by flipping the switch
to the on position.
There is a removable key in the tip of the switch
that can be removed in the off position. When the
key has been removed the dust collector cannot be
used.

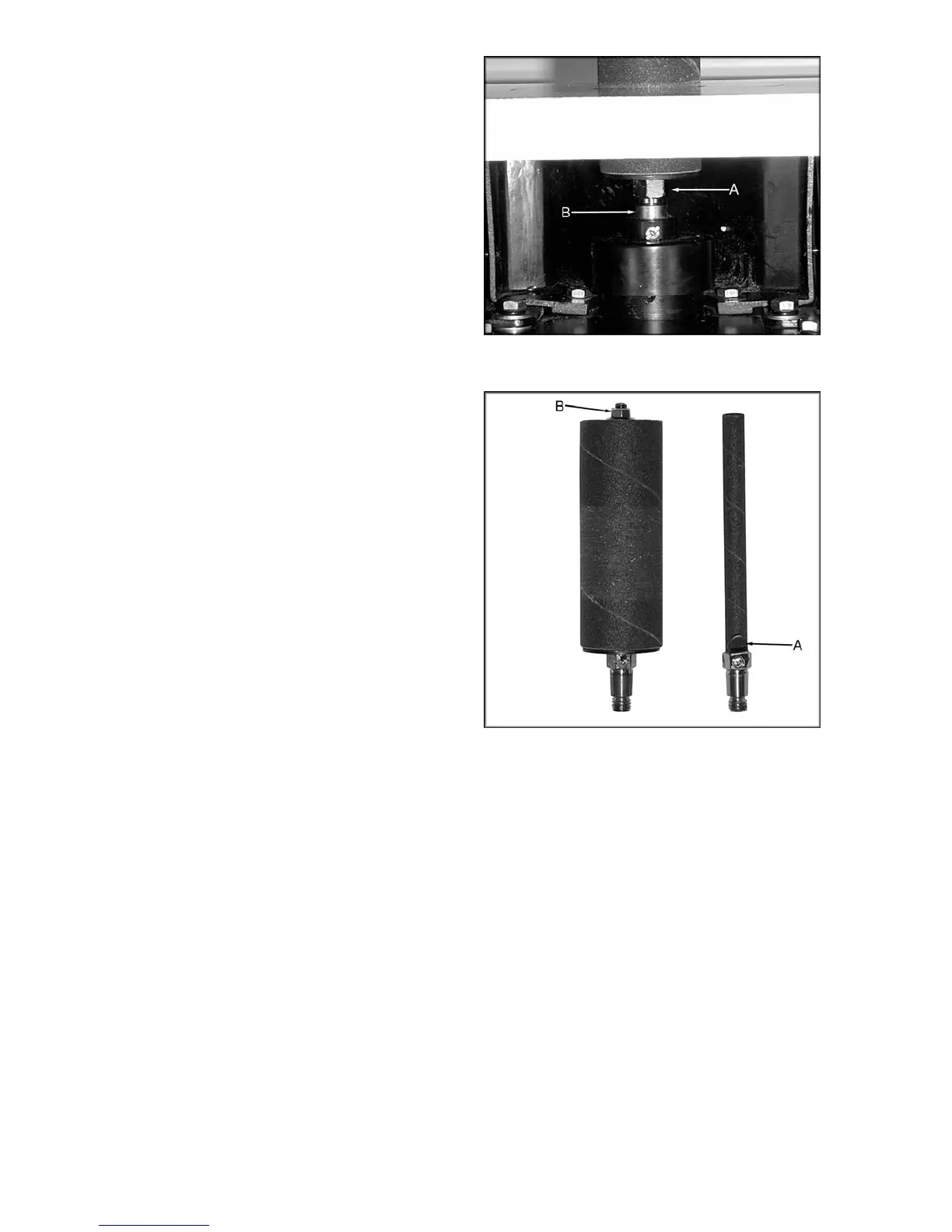

Removing Spindles
Using the provided wrenches, loosen the spindle
nut (A, Figure 6) clockwise while holding the
spindle housing flat (B, Figure 6) with the other
wrench.
Changing Sanding Sleeves
1/4", 1/2" and 5/8"
1. Loosen the clamp (A, Figure 7) with a cross
point screwdriver.
2. Remove the sanding sleeve from the spindle
shaft.
3. Install the new sleeve, making sure to re-
tighten the clamp.
1-1/2" and 2" (optional 3")
1. Loosen the nut (B, Figure 7) with the provided
wrench.
2. Remove the sanding sleeve from the spindle
shaft.
3. Reverse these steps to install the new sanding
sleeve.
Figure 6
Figure 7
