11
Jointer-Planer Assembly
Referring to Figure 9:
Fence
1. Attach jointer fence (A) to back of jointer
outfeed table (D
3
) with two each socket head
cap screws (Q) and lock washers (S). Tighten
screws with 5mm hex wrench (provided).
Lock Knobs
The JJP-8BT Jointer-Planer comes equipped with
two lock knobs to secure the position of the jointer
infeed table.
2. Install jointer infeed table lock knobs (K, T).
Note: The shaft length of each lock knob (refer
to Figure 2) are different. Be sure to install
each in the correct location.
Extension Table
3. Attach the planer outfeed extension table (F) to
the planer table (D
5
) with three socket head cap
screws (R), six flat washers (T), three lock
washers (S) and three hex nuts (U).
Screws (R) and flat washers T1 are inserted
through the extension table (F) and planer
table (D
5
), then fastened from inside the planer
table (D
5
) with flat washers (T
2
), lock washers
(S) and hex nuts (U).
4. Tighten screws with 5mm hex wrench and
10mm open end wrench.
Extension Table Adjustment
Two setscrews located underneath the extension
table (F) are used to adjust the height position of
the outer (protruding) edge, which must be slightly
higher than the main table (D
5
) in order to minimize
snipe (see Avoiding Snipe on page 21).
5. Using a 4mm hex wrench (provided), turn
setscrews slightly clockwise to raise the table
or counterclockwise to lower the table.
Lock Handle
Referring to Figure 10:
Attach planer table lock handle (N) and flat washer (M).
Cutterhead Guard
6. Install cutterhead guard (C) by securing the
bracket (C
1
) to the side of the jointer infeed
table (D
5
) with two each pan head machine
screws (O) and hex nuts (P).

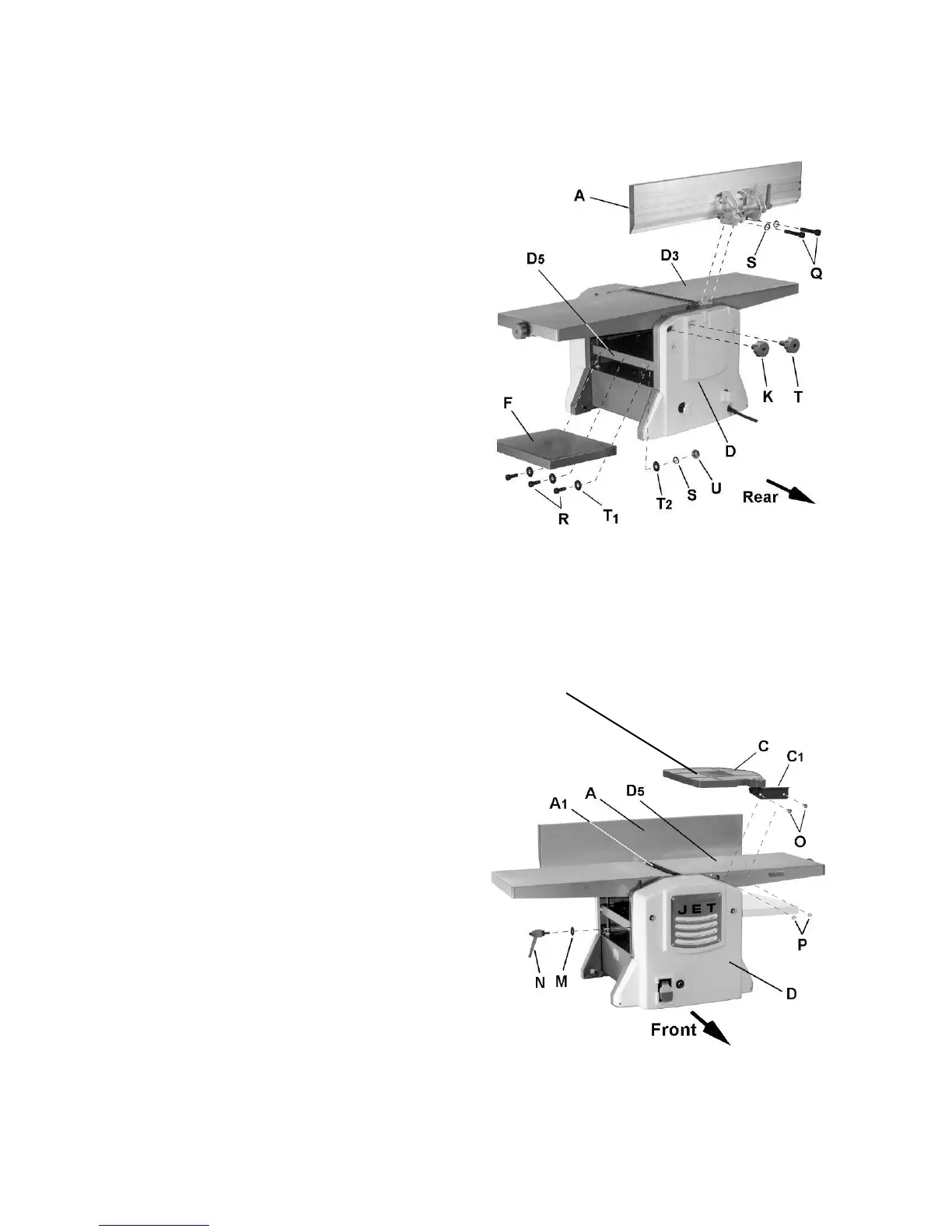

Figure 9
Important: It is extremely important that spring
action causes the cutterguard (C) to retract against
the fence (A), concealing the cutterhead (A
1
). If
spring return tension is not enough, adjust the
spring located on the cutterhead pivot shaft
accordingly.
Figure 10
