Conveyor:
Conveyor speed……………………………………infinitely variable within 0 to 10 FPM (0-3 MPM) .............................
Conveyor table dimensions……………………………..17-15/16 x 16-17/32 in. (456 x 420 mm).................................
Conveyor height from floor…………………………………………..31-31/32 in. (812 mm) ...........................................
Dust collection:
Dust port outside diameter ............................................ 4 in. (100mm) ................................................. 4 in. (100mm)
Minimum extraction volume required ................ 400 CFM (11.3 CMM) .................................... 400 CFM (11.3 CMM)
Dimensions:
Shipping carton, base machine………………………..38-25/32 x 22-7/16 x 20-1/16 in. (985 x 570 x 510 mm) ..........
Shipping carton, open stand…………………………………33-7/8 x 16-3/8 x 4-3/4 in. (860 x 415 x120 mm) .............
Assembled dimensions…………………………………….20 x 49-15/16 x 39-5/8 in. (508 x 1269 x 1007 mm .............
Weights:
Net weight ..................................................................... 156 lb. (71 kg) ................................................ 164 lb. (75 kg)
Shipping weight ............................................................ 182 lb. (83 kg) ................................................ 190 lb. (87 kg)
The specifications in this manual were current at time of publication, but because of our policy of continuous
improvement, JET reserves the right to change specifications at any time and without prior notice, without
incurring obligations.
5.0 Features and Terminology
The illustration below shows the major components and features of the JWDS-series Sanders. These are
referenced throughout the manual and will help to familiarize you with the operation and functions of the machine.

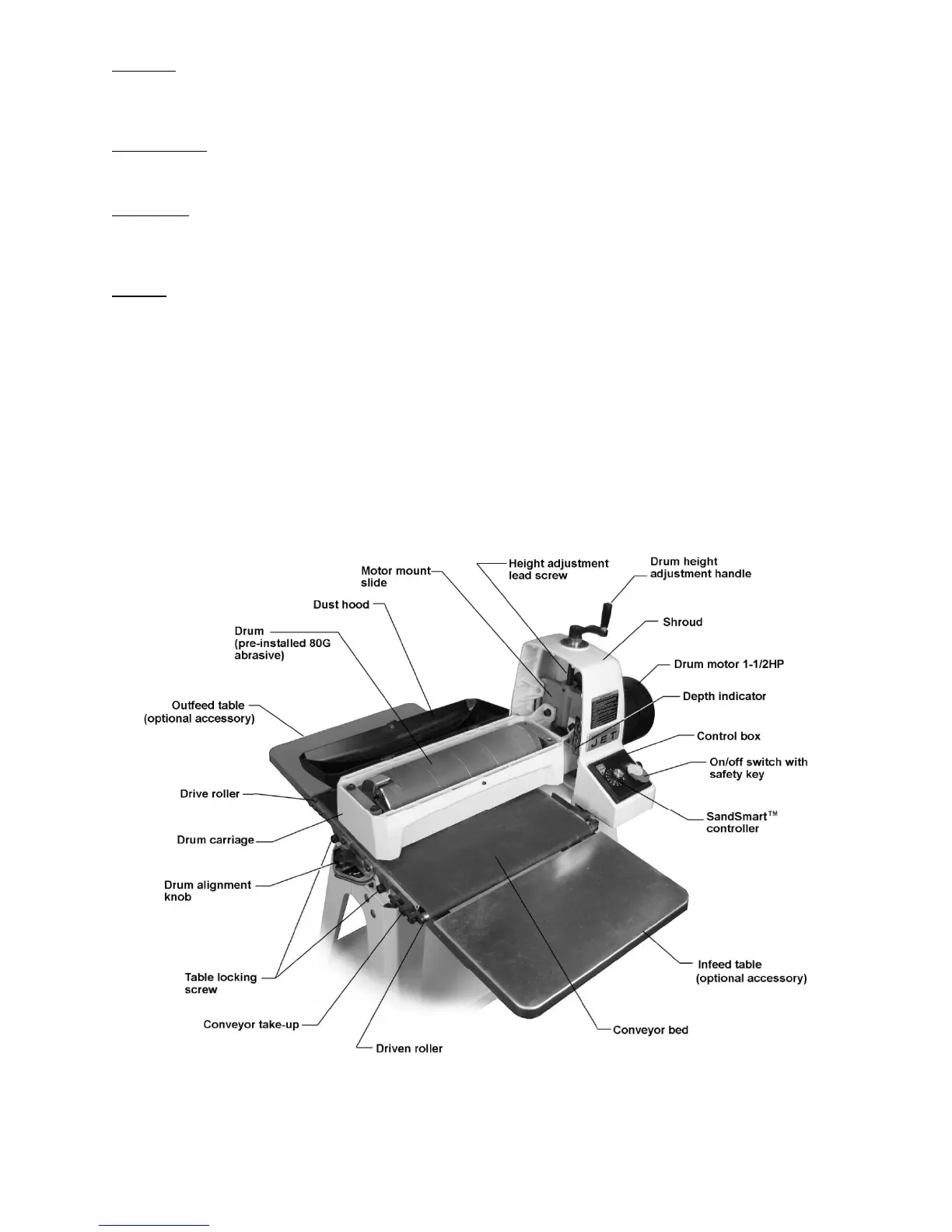

Figure 5-1
