7
Read and understand the
entire contents of this manual before
attempting set-up or operation! Failure to
comply may cause serious injury.
6.0 Setup and assembly
Open boxes and check for shipping damage. Report
any damage immediately to your distributor and
shipping agent. Do not discard any shipping
material until the Drum Sander is assembled and
running properly.
Compare the contents of your boxes with the
following parts list to make sure all parts are intact.
Any missing parts should be reported to your
distributor. Read this instruction manual thoroughly
for assembly, maintenance and safety instructions.
6.1 Shipping contents
Box #1: (see Figure 6-1)
1 Sander with conveyor table (A)
1 Handle (B)
1 Instruction manual (not shown)
1 Warranty card (not shown)
Box #2: (see Figure 6-2)
1 Stand assembly including:
1 Shelf (C)
2 Short rails (D)
2 Long rails (E)
4 Legs (F)
4 Leveling feet (G)
8 Flat washers (H)
4 Hex nuts (I)
24 Carriage Bolts, M8x16 (J)
24 Flanged Lock Nuts, M8 (K)
6.2 Tools required for assembly
12mm and 14mm wrenches
3mm and 6mm hex wrenches
Straight edge (such as straight steel bar or carefully
jointed board)

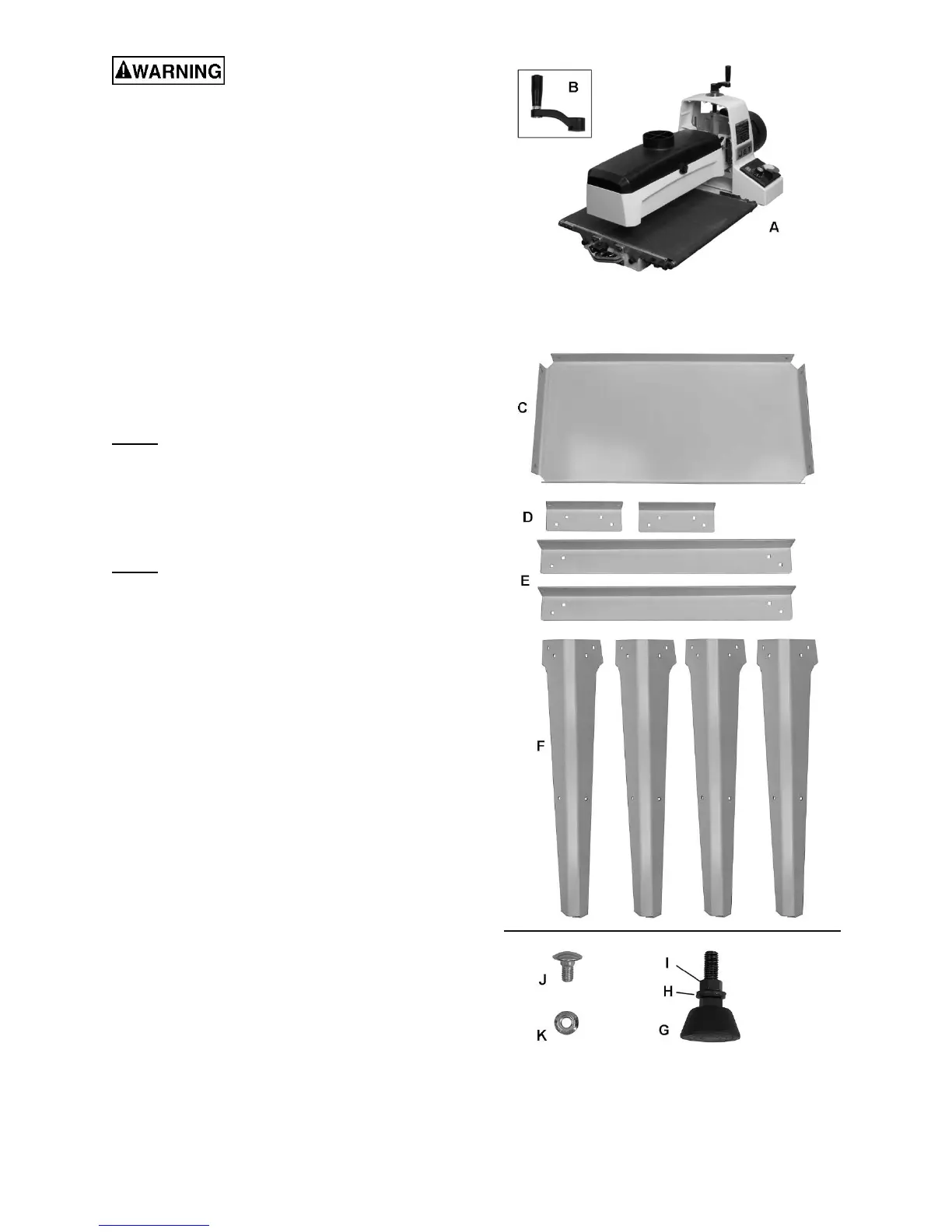

Figure 6-1: box #1 (main unit)
Figure 6-2: box #2 (stand assembly)
