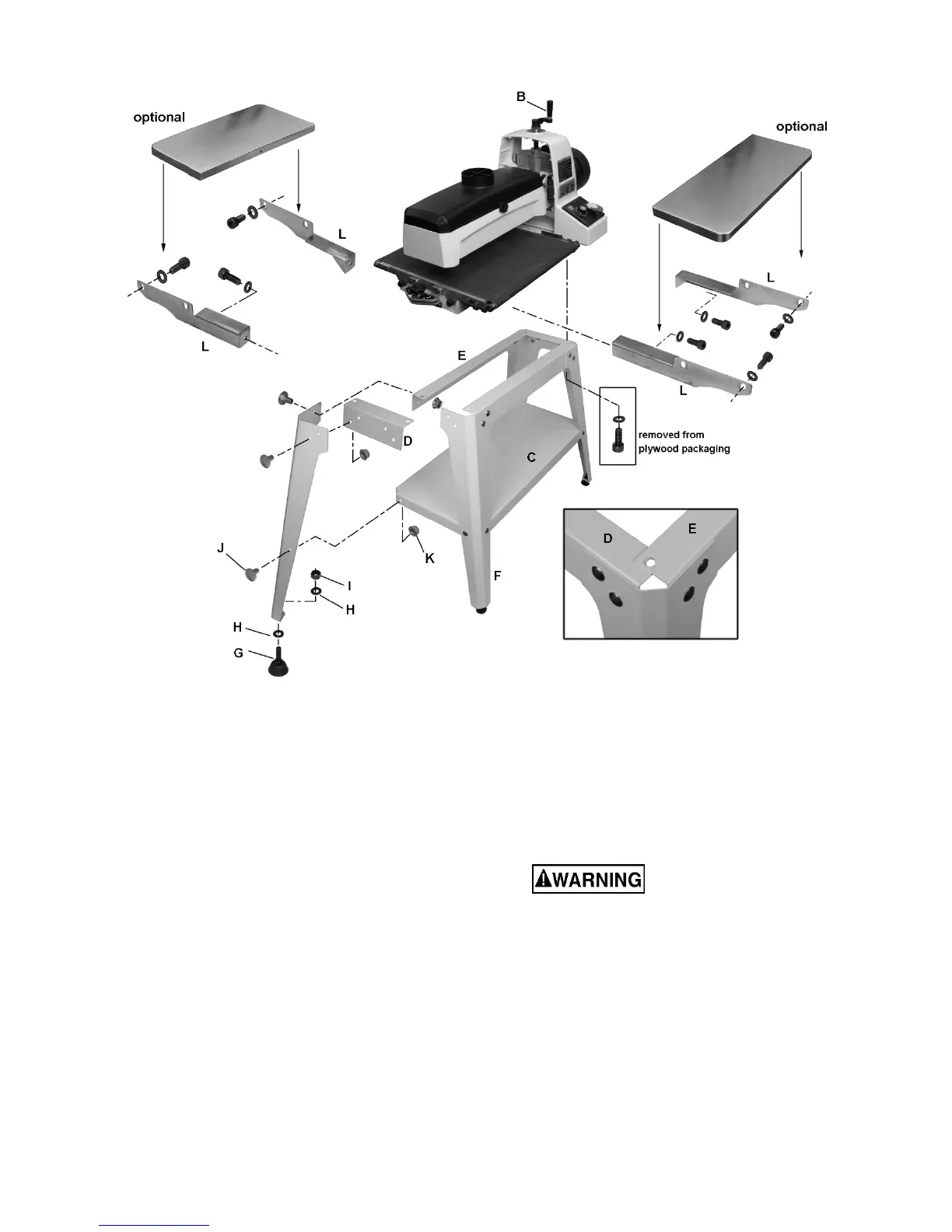

Figure 6-3: Assembly
6.3 Assembling stand
(Refer to Figure 6-3. If further clarification is needed,
consult parts breakdown at back of this manual.
1. Assemble legs (F) to outside of Short Rails (D)
using carriage bolts (J) and flanged lock nuts
(K). Finger tighten only.
2. Assemble Long Rail (E) on inside of legs and
on top of Short Rails (D). Finger tighten only.
NOTE: Flange of Long Rail overlaps flange of
Short Rail. See inset, Figure 6-3.
3. Turn stand upside down. Install shelf (C) into
legs using carriage bolts and lock nuts.
4. Fully tighten all flanged lock nuts in shelf and
legs.
5. Insert leveling foot (G) into bottom hole of leg
with flat washers and hex nut.
6. Turn stand right-side up, and push down on it to
settle it. Tighten all flanged lock nuts on stand.
7. Level the stand using the leveling feet. Tighten
the hex nuts against the leg flange.
6.4 Mounting sander to stand
1. Lift drum head assembly out of the box, and
temporarily rest it crosswise on top of stand.
Use an assistant to help lift
the sander.
2. Install height adjustment handle (B), and tighten
set screw.
3. Rotate height adjustment handle counter-
clockwise to raise drum and free the wood
support block.
4. Remove the socket head cap screws and
washers which secure the plywood boards to
the bottom of sander base. Retain these screws
and washers for step 6.
