10
Hardware
The shipping carton includes two hardware bags
with parts for assembling the JWTS-10 Table Saw.
Hardware bag JWTS10-HP contains six packets of
parts and JWTS10-SHP contains three packets of
parts. If either bag is missing the proper number of
packets, contact customer service (phone number
on cover and back pages).

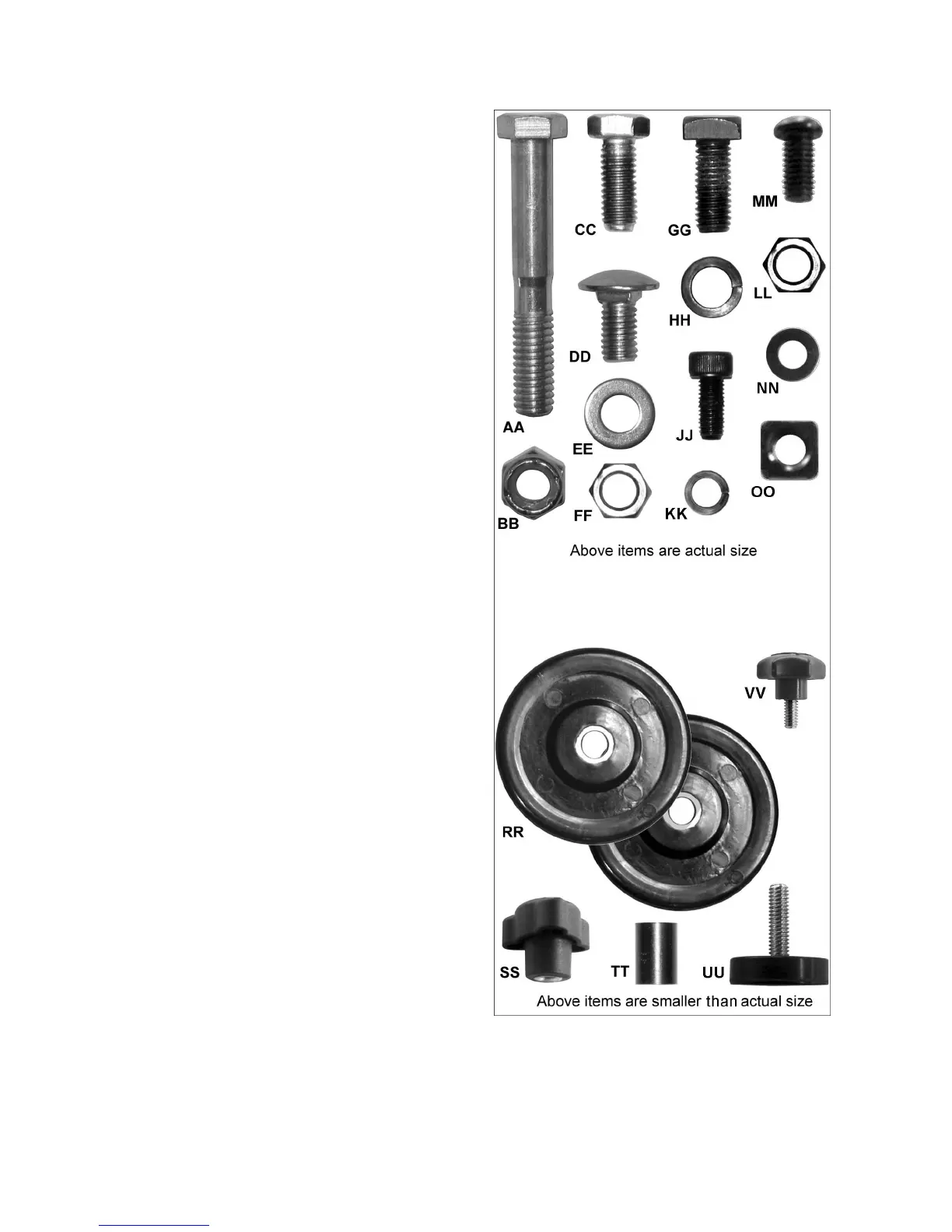

Remove contents from all packets and sort.
Hardware contents can be identified by the
illustration to the right and quantities can be verified
from the list below.
02 3/8”-16 x 2.5” Hex Cap Screw (AA)
02 3/8” Nylon Insert Lock Nut (BB)
18 M8x20 Hex Cap Screw (CC)
24 M8x12 Carriage Bolt (DD)
36 M8 Flat Washer (EE)
40 M8 Hex Nut (FF)
06 M8 Square Head Bolt (GG)
20 M8 Lock Washer (HH)
01 M5x12 Socket Head Cap Screw (JJ)
01 M5 Lock Washer (KK)
04 5/16" Hex Nut (LL)
02 M6x10 Pan Head Screw (MM)
02 M6 Washer (NN)
02 M6 Square Nut (OO)
02 Wheel (RR)
01 Lock Knob for Front Handwheel (SS)
01 Bushing (TT)
02 Foot Pad (UU)
02 Lock Knob for Wheels (VV)
Tools Included for Assembly
2 Arbor/Blade Guard Bracket Wrench
1 Hex Wrench (2.5mm)
1 12-14mm Open End Wrench
Additional Tools Required
1 No. 1 and No. 2 Cross Point Screwdrivers
1 6"– 8" Adjustable Wrench
1 Accurate Straight Edge (approximately 2 ft)
1 4mm Hex Wrench
1 13mm Box Wrench
Note: Use of sockets and ratchets will speed
assembly time but are not required.
Hardware Contents
