9
Shipping Contents

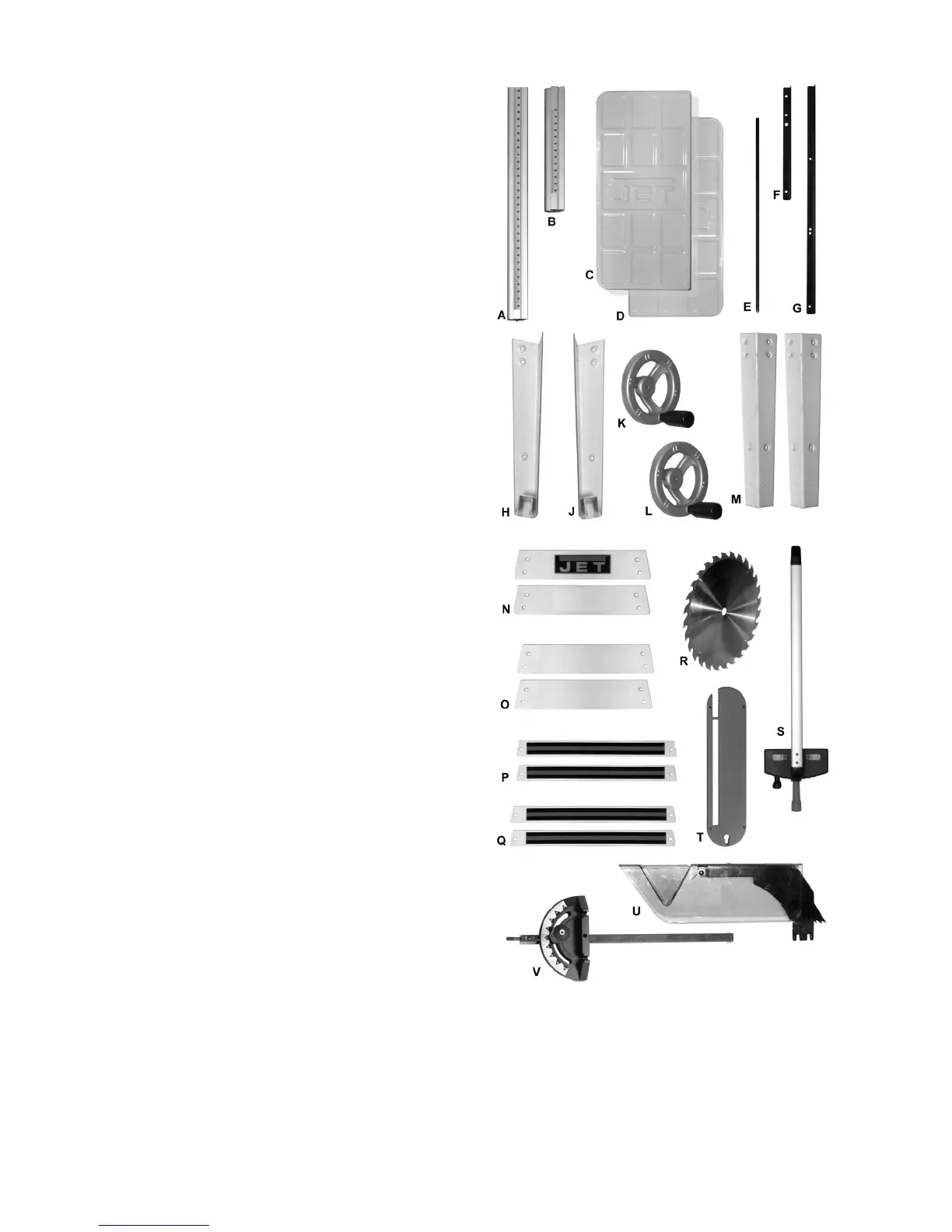

Carton Contents
1 ea Table Saw (not shown)
1 ea Front Rail – Long (A)
1 ea Front Rail – Short (B)
1 ea Extension Wing – Left (C)
1 ea Extension Wing – Right (D)
1 ea Support Rod with mounting screw
and washer (E)
1 ea Rear Rail – Short (F)
1 ea Rear Rail – Long (G)
1 ea Left Leg – Rear (H)
1 ea Left Leg – Front (J)
1 ea Handwheel – Large Mounting Hole (K)
1 ea Handwheel – Small Mounting Hole (L)
2 ea Right Leg (M)
2 ea Top Plate – Short (N)
2 ea Top Plate – Long (O)
2 ea Support Plate – Short (P)
2 ea Support Plate – Long (Q)
1 ea Saw Blade (R)
1 ea Fence (S)
1 ea Table Insert (T)
1 ea Blade Guard Assembly (U)
1 ea Miter (V)
Carton Contents

Jet JWTS-10 Specifications

General

Blade Diameter	10 inch
Table Size	20 x 27 inch
Max Rip Capacity	30 inch
Arbor Size	5/8 inch
Max Rip to Left of Blade	12 in
