Jet JWTS-10 - Stand Assembly Parts and View

36

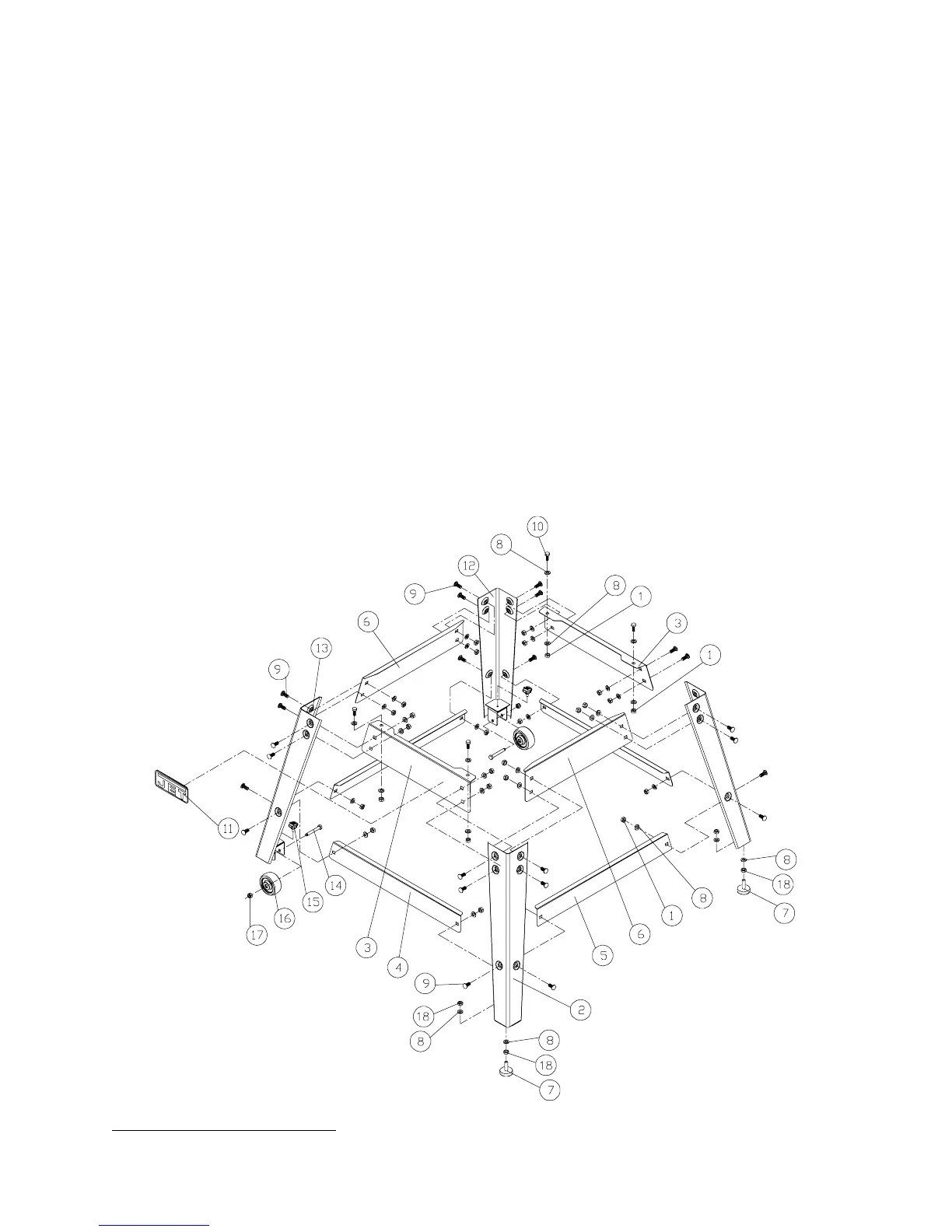

Stand Assembly Parts List and Exploded View
Index No. Part No. Description Size Qty
1...............TS-1540061 ............ Hex Nut
1
** ......................................................... M8............................28
2...............JWTS10-402........... Leg.................................................................... ...................................2
3...............JWTS10-403........... Top Plate, Short................................................. ...................................2
4...............JWTS10-404........... Support Plate, Short........................................... ...................................2
5...............JWTS10-405........... Support Plate, Long........................................... ...................................2
6...............JWTS10-406........... Top Plate, Long ................................................. ...................................2
7...............JWTS10-407........... Pad **................................................................ ...................................2
8...............TS-1550061 ............ Flat Washer ** ................................................... M8............................36
9...............JWTS10-409........... Carriage Bolt **.................................................. M8x12 ......................24
10.............TS-1490031 ............ Hex Cap Screw **.............................................. M8x20 ........................4
11.............JWBS18-140........... JET Nameplate.................................................. ...................................1
12.............JWTS10-412........... Caster Mount Leg, Rear..................................... ...................................1
13.............JWTS10-413........... Caster Mount Leg, Front.................................... ...................................1
14.............TS-0060111 ............ Hex Cap Screw **.............................................. 3/8"-16x2.5"................2
15.............JWTS10-415........... Lock Knob **...................................................... ...................................2
16.............JWTS10-416........... Wheel ** ............................................................ ...................................2
17.............TS-0640091 ............ Nylon Insert Lock Nut **..................................... 3/8”-16........................2
18.............TS-0561021 ............ Hex Nut **.......................................................... 5/16”-18......................4
.................JWTS10-SHP.......... Hardware Package (not shown) ......................... .....................................
1
** Included in JWTS10-SHP Stand Hardware Package
