1.3 Attaching the Handlebar
YOU WILL NEED THE 4MM ALLEN KEY.

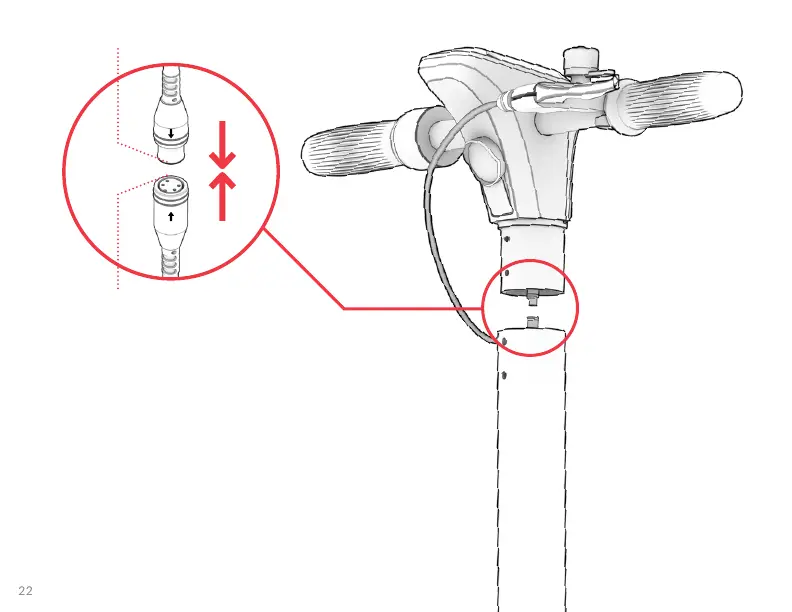

1. ALIGN THE ARROWS ON THE TIP OF THE HANDLEBAR WIRE A
AND THE RECEPTOR ON THE STEM WIRE. PUSH A INTO B.
2. HOLD THE HANDLEBAR OVER THE STEM SUCH THAT THE
FOLLOWING CONDITIONS ARE MET:
• THE HANDLEBAR POST IS POINTED DOWN
• THE NFC SENSOR IS FACING THE BACK OF THE SCOOTER
3. SLIDE THE HANDLEBAR POST INTO THE STEM UNTIL THE 4 HOLES IN
THE POST ARE ALIGNED WITH THE 4 HOLES IN THE STEM.
IMPORTANT: TAKE CARE NOT TO PINCH THE WIRES WHEN SLIDING
THE POST INTO THE STEM. GUIDE THE WIRES AS NECESSARY SO
THEY ARE OUT OF THE WAY OF BOTH FRAME PIECES.
HANDLEBAR WIRE TIP A
STEM WIRE RECEPTOR B
