Operation Manual
38
Installation
1. Install a new O-ring (Figure 56) onto the gland
nut.
2. Install the guide bushing (Figure 57) and
plunger into the gland nut.
3. Place the new packing and guide bushing onto
the plunger. Orient the packing as shown in
(Figure 54) for 15K/20K and (Figure 55) for
40K.
4. Lubricate the gland nut with anti-seize com-
pound. Apply the compound to the threads
and on the small face that contacts the inside
of the stufng box (Figure 58). Place the as-
sembly into the stufng box. Hand-tighten the
gland.

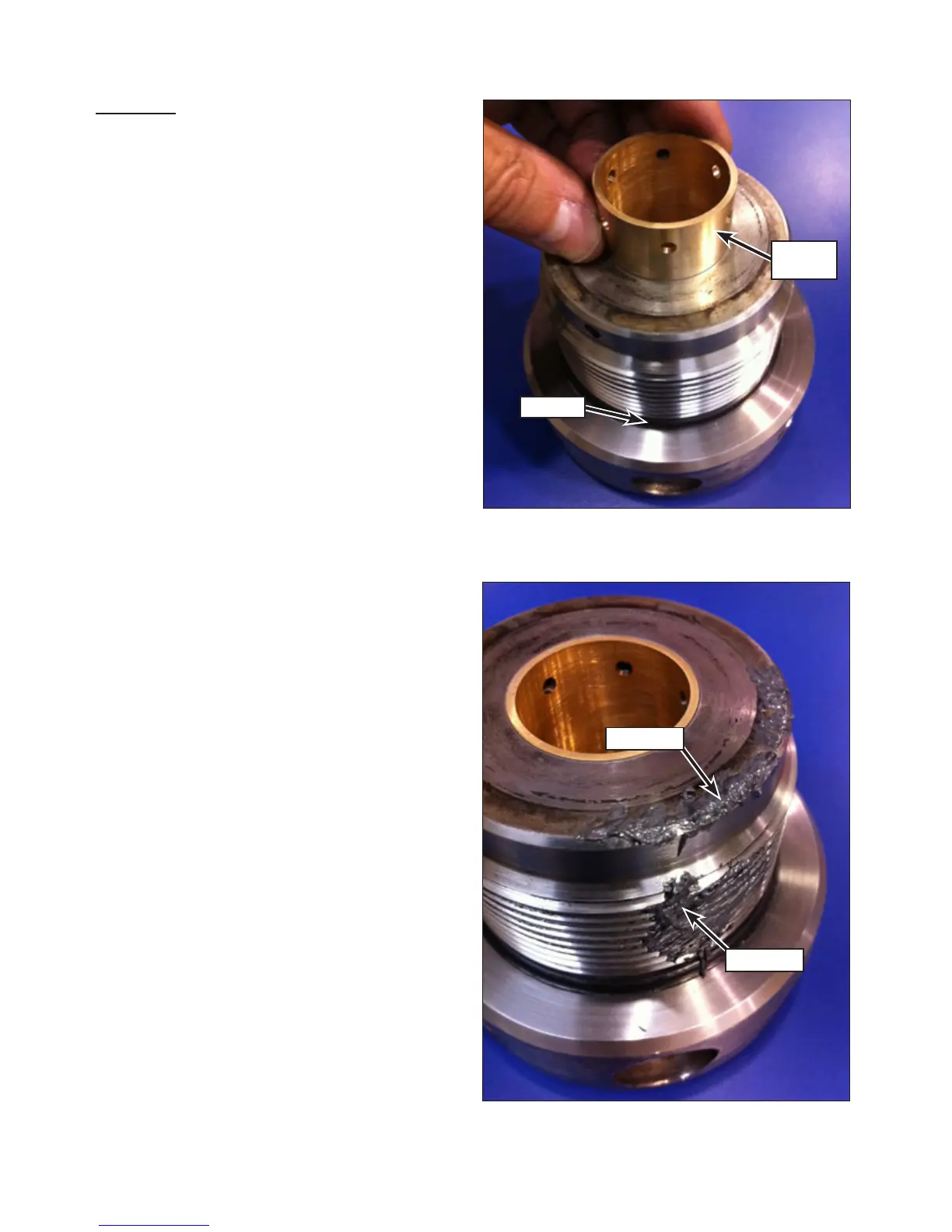

Figure 58: Applying Anti-Seize.
Figure 57: Guide Bushing Installation.
Guide
Bushing
O-Ring
Anti-Seize
Anti-Seize
