40K Hose Connections
1. Remove the supply hose (Figure 41) (supply
from charge pump) from the suction elbow
tting on the 15K/20K manifold.
2. Install the 40K manifold as outlined earlier in
this chapter.
3. Remove the plug from the lter outlet hose
(Figure 42). Connect the hose to the elbow on
the 40K manifold.
4. Remove the cap from the secondary lter inlet
coupling (Figure 43).
5. Install the charge pump supply hose on the
secondary lter inlet coupling.
!
CAUTION
When ushing the system before operation,
purge the secondary lter of air. Failure to do so
could cause pump cavitation and damage. Use
the bleed valve (Figure 43) on the lter to purge
the air from the lter.
Bleed Valve

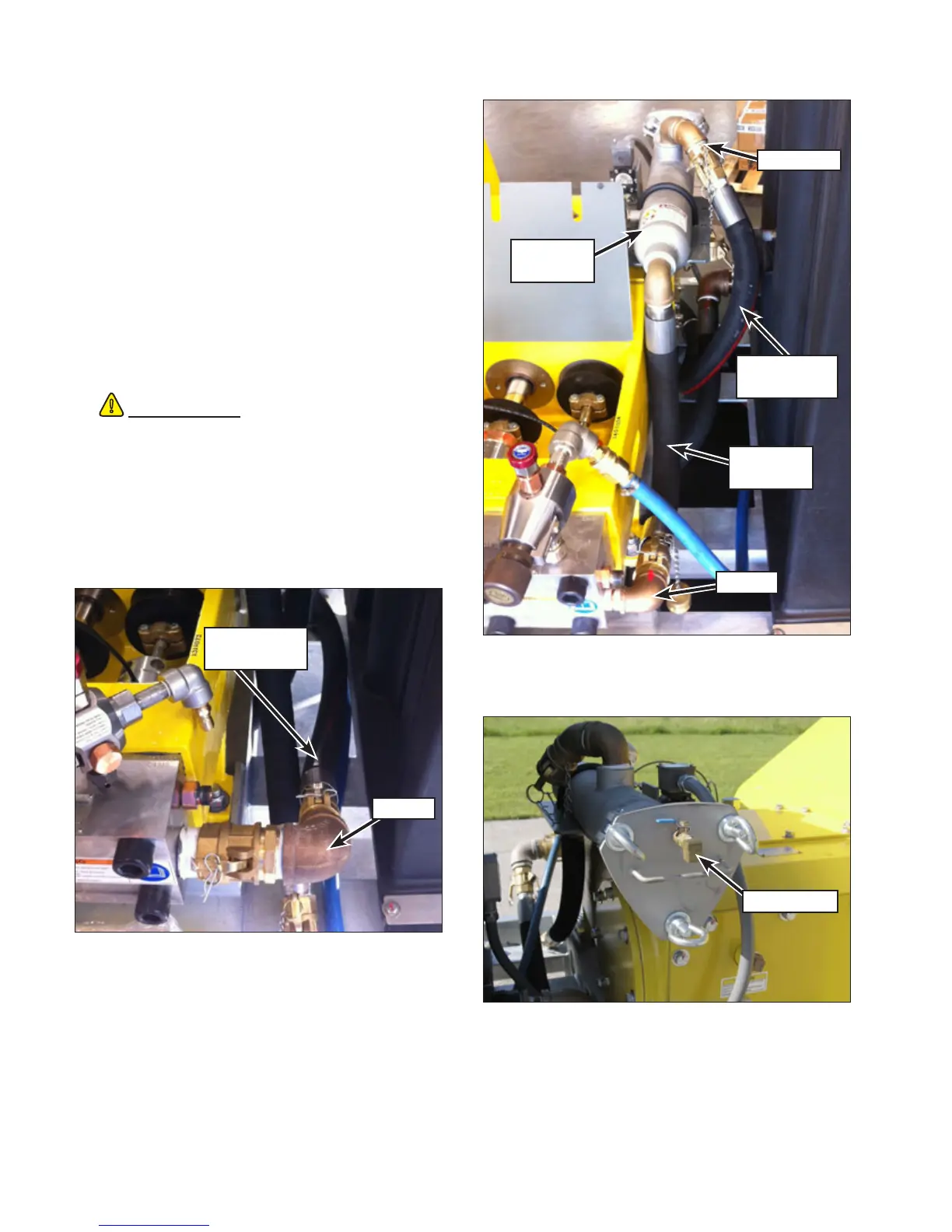

Figure 43: Secondary Filter Bleed Valve.
Figure 41: Supply Hose from Charge Pump.
Elbow
Supply from
Charge Pump
Figure 42: Plumbing.
Elbow
Filter Outlet
Hose
Supply from
Charge Pump
Secondary
Filter
Filter Inlet
