JETStream 3000 series - Valve Inspection; Valve Lapping

Operation Manual
42
Installation

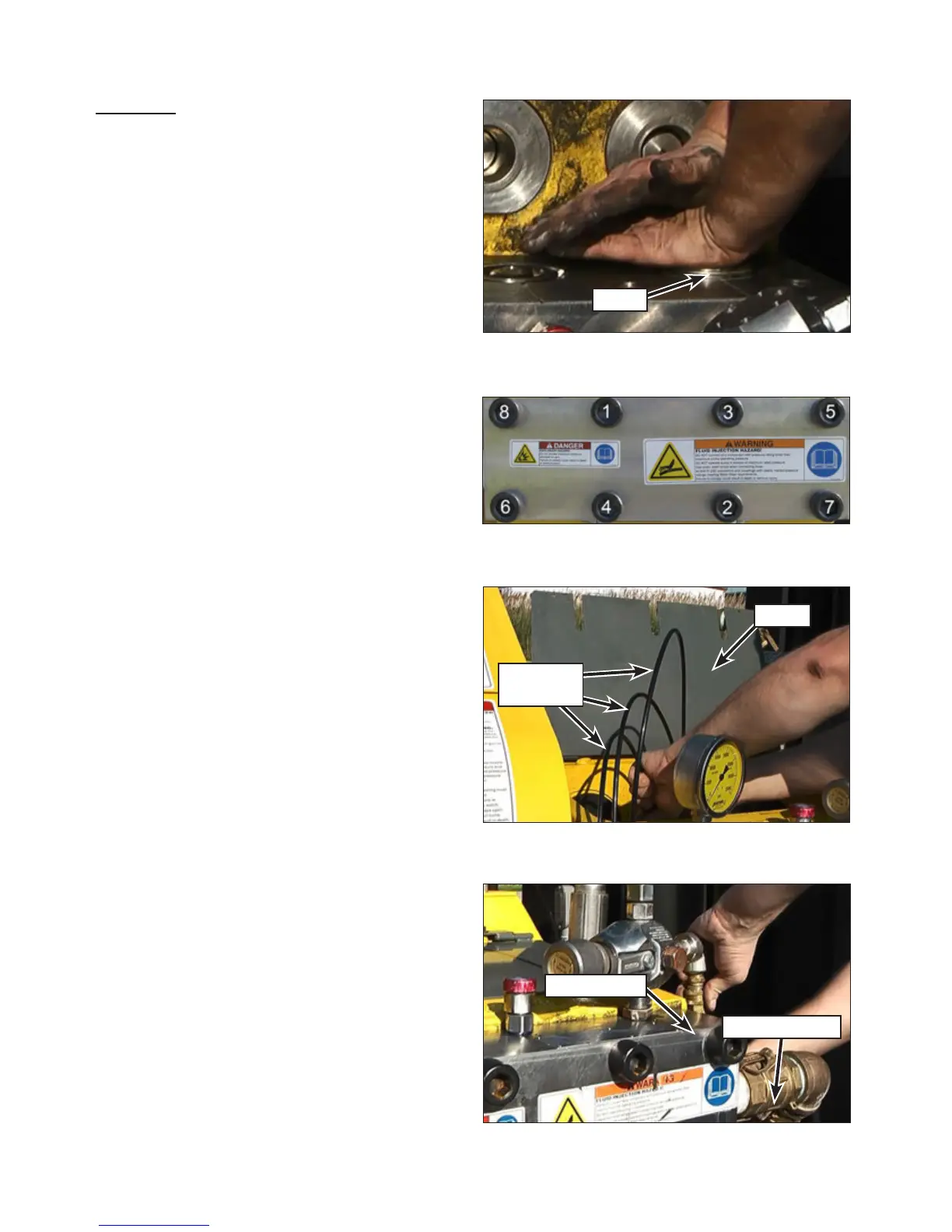

1. Place the valve into position on the manifold.
Using the palms of your hands, press the
valve into the manifold as shown (Figure 68).
2. Install the remaining valves.
3. Swing the manifold upward to install the bolts.
4. Install the manifold bolts and tighten in a criss-
cross sequence starting with the center bolts
(Figure 69). Proper torque is 350 ft.-lb. (470
N·m).
5. Connect the water lubrication lines (Figure 70)
to the stufng boxes and close the rod box
cover.
6. Connect the supply coupling (Figure 71) and
the bypass hose to the manifold.
Figure 69: Tightening Sequence.
Cover
Lubrication
Lines
Figure 70: Connecting the Water Lubrication Lines.
Bypass Hose
Supply Coupling
Figure 71: Hose Connections.
Figure 68: Installing the Valves.
Valve
