JLG RT2669 - 3.7 PLATFORM CONTROL STATION

SECTION 3 - MACHINE CONTROLS, INDICATORS, AND MACHINE OPERATION
31217162 3-11

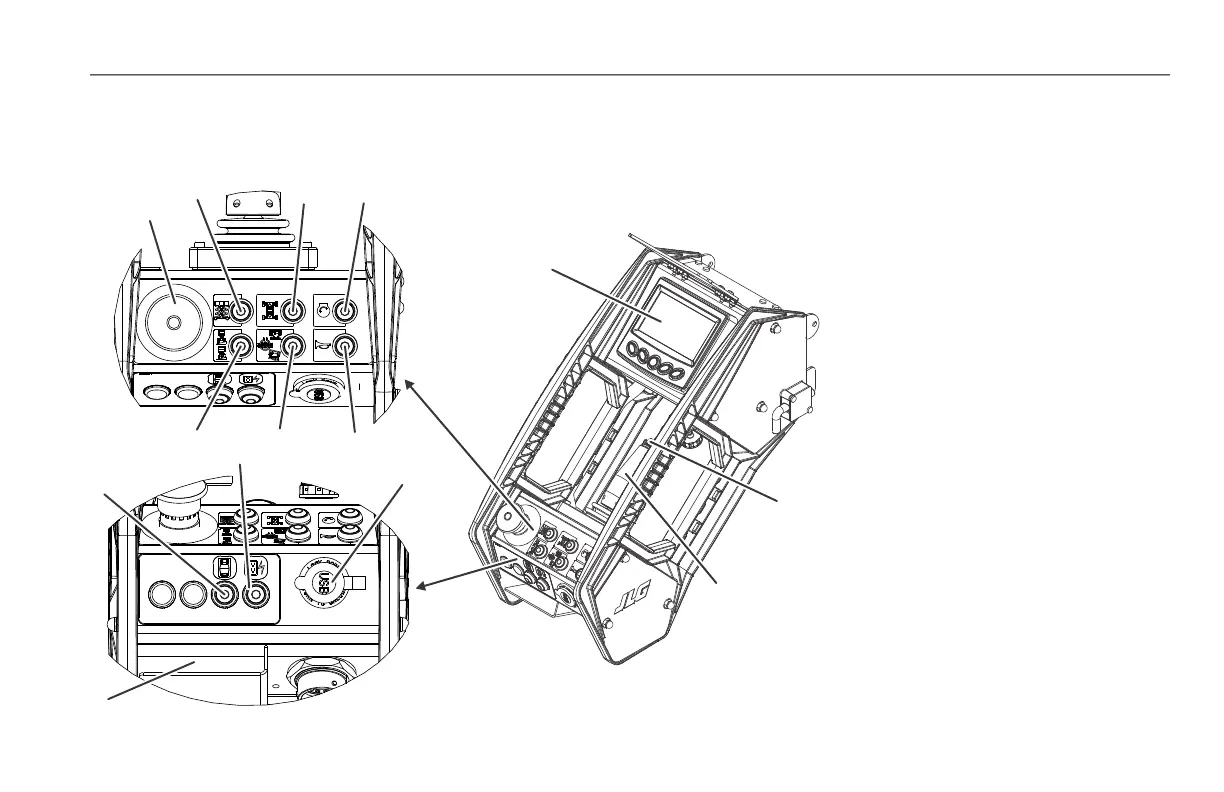

3.7 PLATFORM CONTROL STATION
RT Machines
1. Emergency Stop Switch
2. Lift Select Switch
3. Drive Select Switch
4. Engine Start Switch
5. Horn
6. Speed Select Switch
7. Leveling Jacks OR
QuikLevel Advanced Switch
8. Mobile Phone Slot
9. Dual Fuel Selection (If Equipped)
10. Generator Start Switch (If Equipped)
11. USB Charge Port
12. Indicator Display
13. Steer Control Switch
14. Joystick Controller with Trigger
(Enable) Switch
15. Not Used
