SECTION 3 - MACHINE CONTROLS, INDICATORS, AND MACHINE OPERATION
31217162 3-15
3.8 INDICATOR DISPLAY

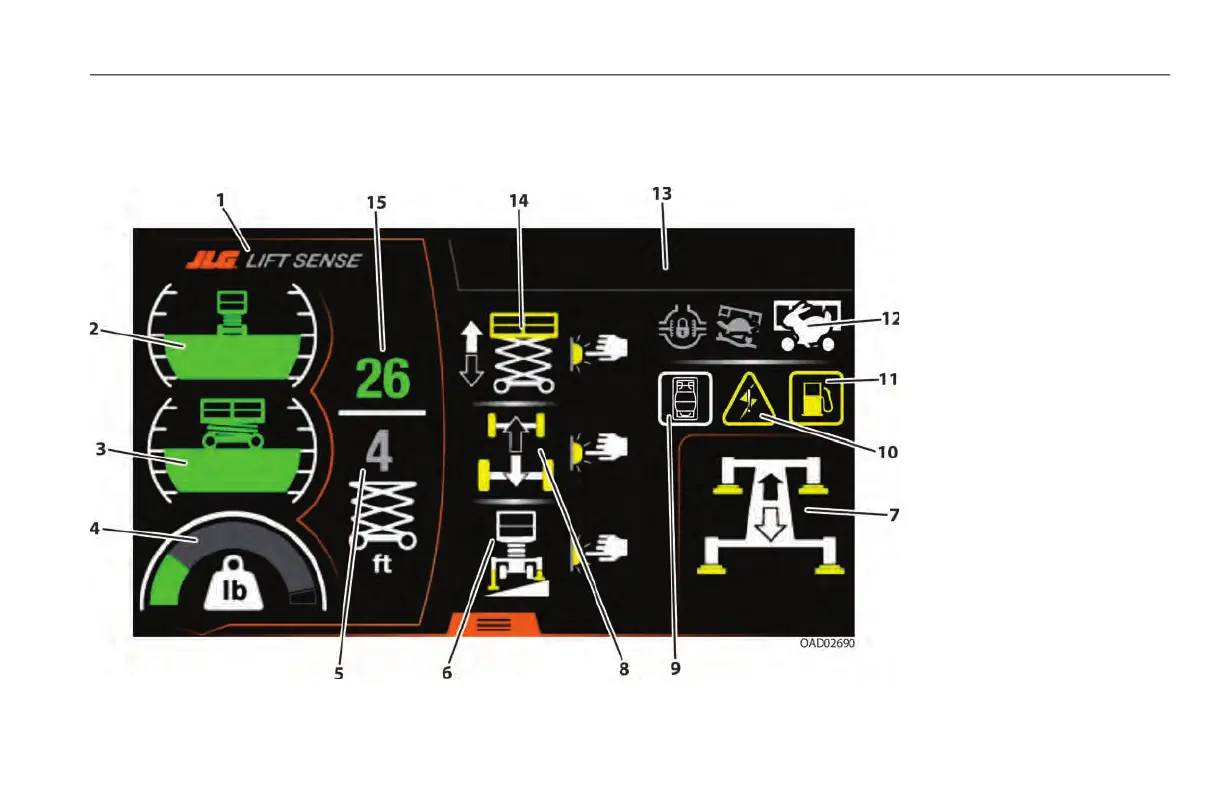

RT Machines (If Equipped with Leveling Jacks)
1. Lift Sense Pane
2. Side to Side Tilt
3. Front to Back Tilt
4. Platform Load Gauge
5. Current Platform Height
6. Leveling Jacks Indicator (If Equipped)
7. Leveling Jacks Status (If Equipped)
8. Drive Select Indicator
9. Dual Fuel (LP Selection)
10. System Fault Indicator
11. Low Fuel Indicator
12. Drive Speed
13. DTC Messages Display
14. Lift/Lower Indicator
15. Maximum Allowed Platform Height
16. Not Used
17. Not Used
18. Not Used
