SECTION 3 - MACHINE CONTROLS, INDICATORS, AND MACHINE OPERATION
31217162 3-19

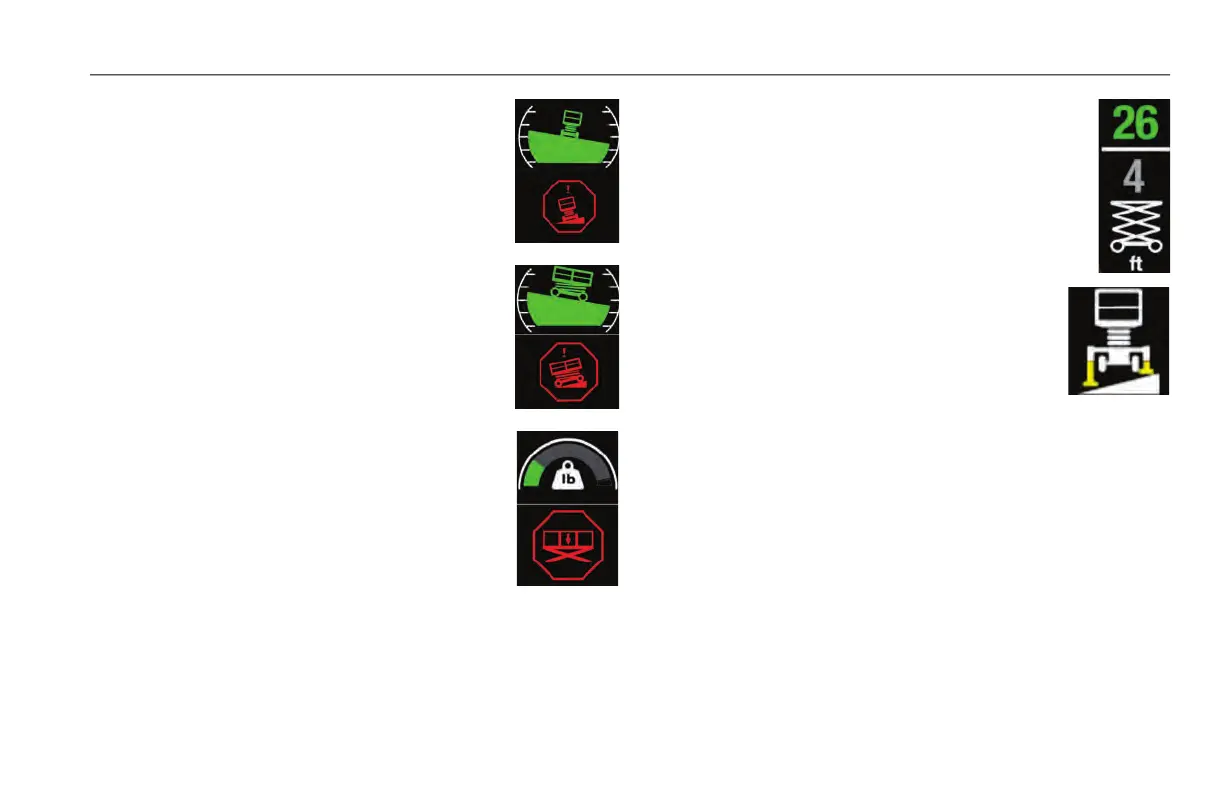

2. Side to Side Tilt - Shows the current level of
side to side tilt. A red warning light on the
display illuminates and an audible alarm
sounds when the chassis is at or beyond the
tilt cutout settings.
3. Front to Back Tilt - Shows the current level
of front to back tilt. A red warning light on
the display illuminates and an audible alarm
sounds when the chassis is at or beyond the
tilt cutout settings.
4. Platform Load Gauge - Displays the calcu-
lated load on the platform. The gauge bar
remains green if platform load is less than
the rated capacity. If the platform is deter-
mined to be overloaded, a red warning light
on the display illuminates and an audible
alarm sounds.
NOTE: If the Overload Indicator is illuminated, further elevation will be
prevented. Reduce the weight in the platform so as to not exceed
the rated workload indicated on the capacity decal, then the
controls will work again.
5. Current Height - Current platform height (bot-
tom number).
6. Leveling Jacks Indicator (If Equipped) -
Indicates when the leveling jacks function
has been selected on the platform control
console.
