15

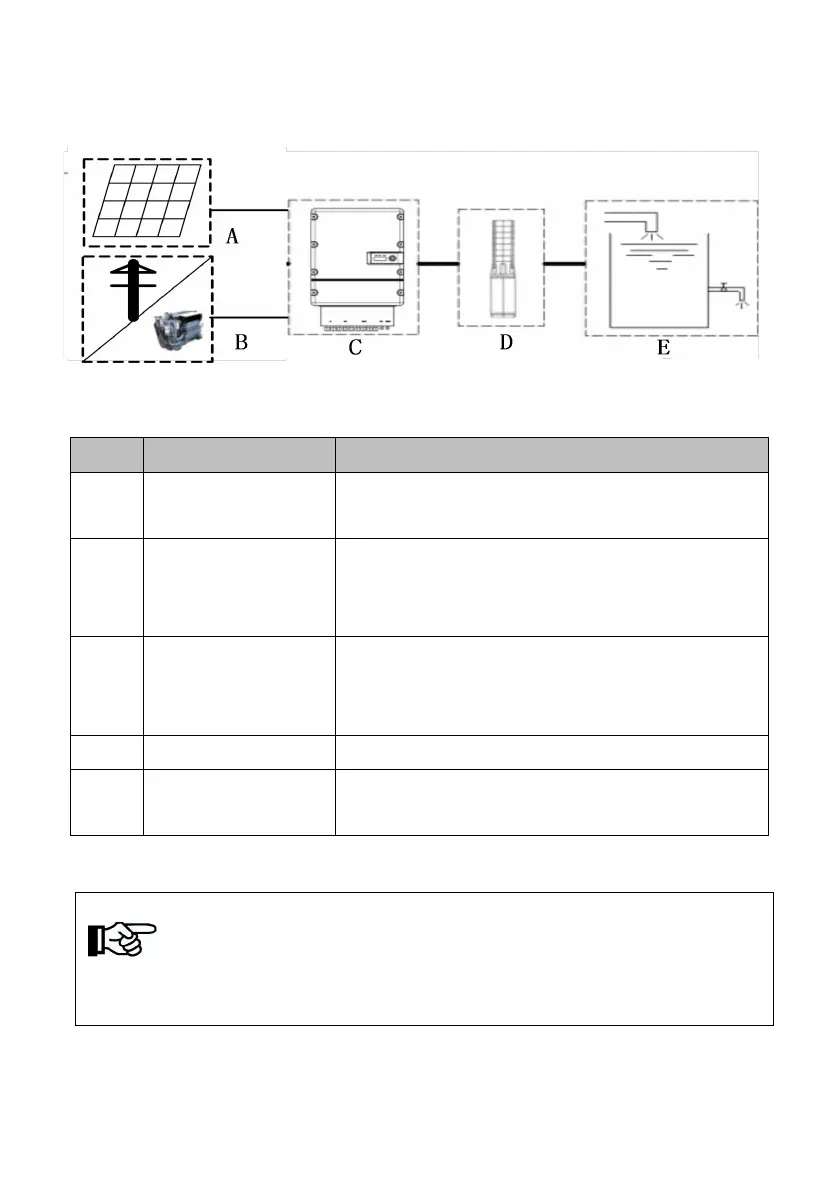

Figure 2-1 Photovoltaic pump inverter application system
Table 2-1 Application system list of pv pump inverter
No.
Name
Description
A
PV array
Monocrystalline silicon, Polycrystalline
silicon.
B
Grid/Diesel
generator
Single phase or three phase AC source.(see
the appendix of each model for specific
requirements)
C
Solar pump
inverter
JNP22KH、JNP30KH、JNP37KH、JNP45KH、
JNP55KH
D
AC pump
Three-phase AC pump
E
Water storage
device
Can be the reservoir, fields etc.
Explain!
Photovoltaic pump system configuration need to ensure that the maximum
power point of pv array voltage Vmp with ac rectifier voltage Vmp 1.414 * U
