30

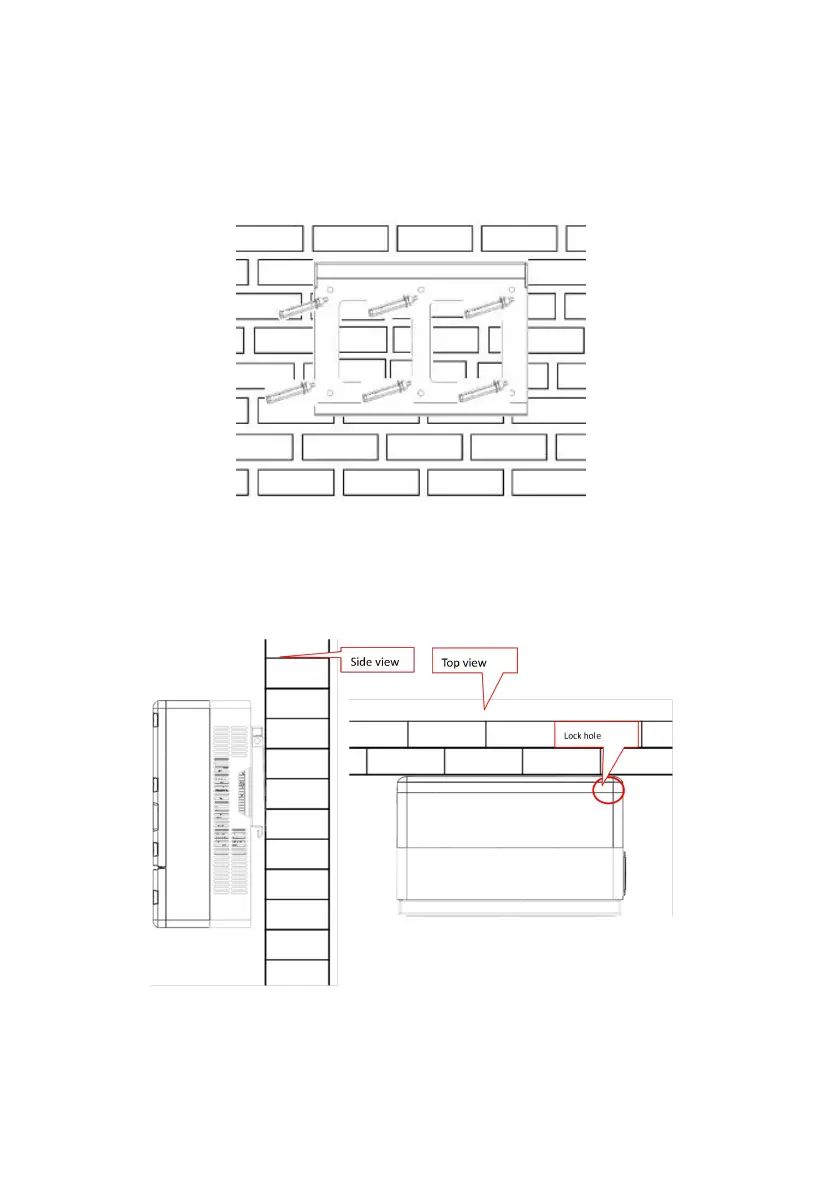

Step 2: Use expansion bolts to fix the mounting sheet metal to the wall. Lock
the expansion bolt until the expansion bolt is attached to the wall.
Figure 5-4 Installation of expansion bolts
Step 3: Hang the mounting lug on the back of the inverter onto the mounting
sheet metal until the inverter is firmly installed on the panel, then release the
inverter.11 Appendix B
Figure 5-5 Completion effect of installation
