184
7-24
7-25
7-26
7-27
7-28
8
8
Operation

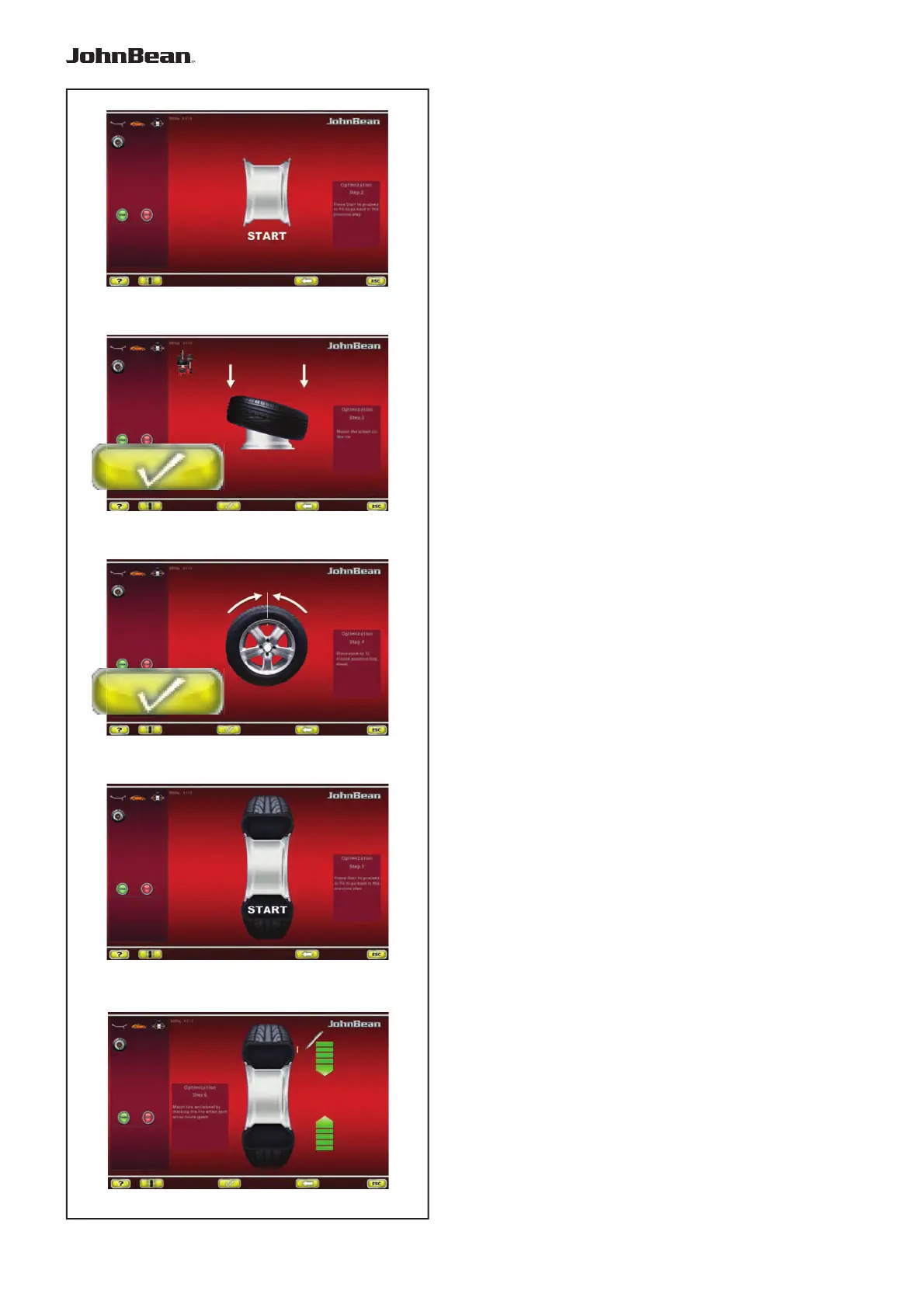

Fig. 7-24 OPTIMISATION “2”
START is signalled on the screen.
— Spinn the wheel.
A compensation run is performed.
The screen “3” as shown in Fig. 7-25 is displayed.
Fig. 7-25 OPTIMISATION “3”
—
Mount the tyre correctly on the rim and in! ate
to speci" ed in! ation pressure (make sure the
mounting guide rim of the tyre is correctly
seated).
— Con" rm by pressing key 8.
The OPTIMISATION “4” screen (Fig. 7-26) is
displayed.
Fig. 7-26 OPTIMISATION “4”
(" rst measuring run of tyre/rim assembly)
— Clamp the wheel on the balancer.
— Readjust the wheel such that the valve is
exactly perpendicular to and above the main
shaft.
— Enter the valve position by pressing key 8.
The OPTIMISATION “5” screen (Fig. 7-27) is displayed.
Fig. 7-27 OPTIMISATION “5”
START is signalled on the screen.
— Perform the measuring run.
A measuring run is performed.
The OPTIMISATION “6” screen (Fig.7-28) is displayed.
..
