Operation

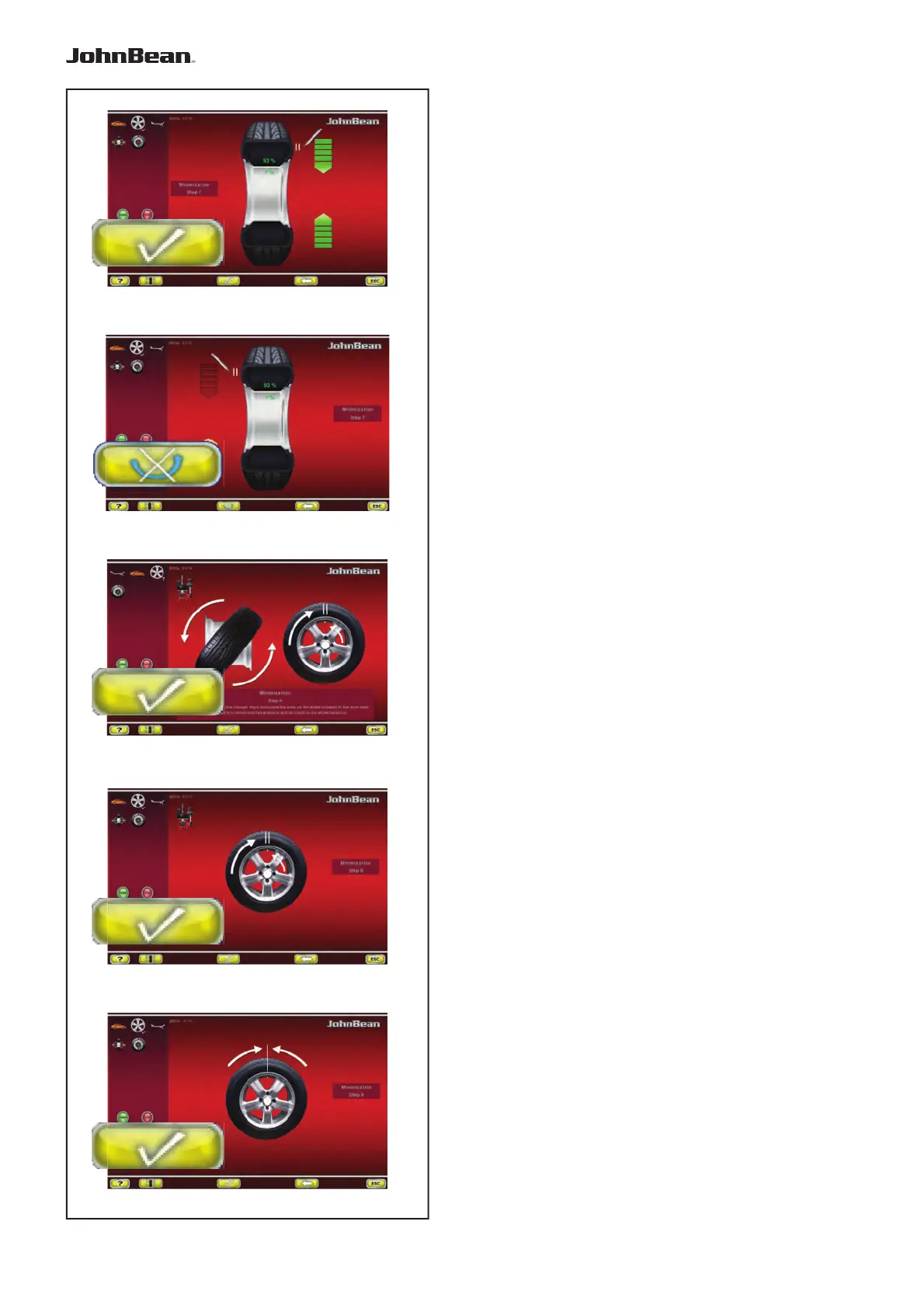

Fig. 7-52 MINIMISATION “7”, outside
— Rotate the wheel into marking position following the
arrows.
— In this position provide a double mark on the tyre
outer side exactly perpendicular to and above the
main shaft.
— Confi rm by pressing key 8.
The MINIMISATION “8” screen (Fig. 7-54) is displayed.
Fig. 7-53 MINIMISATION “7”, inside
If the tyre cannot be turned over on the rim (e.g.:
Asymmetrical and Directional),
— press key (A, Fig. 7-53), then
— continue as shown on screen MINIMISATION
“7” outside (Fig. 7-52).
If the wheel can be turned over on the rim;
— Rotate the wheel into marking position following the
arrows.
— In this position provide a double mark on the tyre,
on the inside of the wheel, exactly above the main
shaft.
— Turn over the tyre on the rim (tyre changer).
— Confi rm by pressing key 8.
The MINIMISATION “8” screen (Fig. 7-54b) is
displayed.
Fig. 7-54b MINIMISATION “8”
— Readjust the tyre on the rim such that the double
mark coincides with the valve (use tyre changer).
— Confi rm by pressing key 8.
The MINIMISATION “9” screen (Fig. 7-55) is displayed.
..
