John Bean VPI System - Standard Accessories; Optional Accessories

Page 6

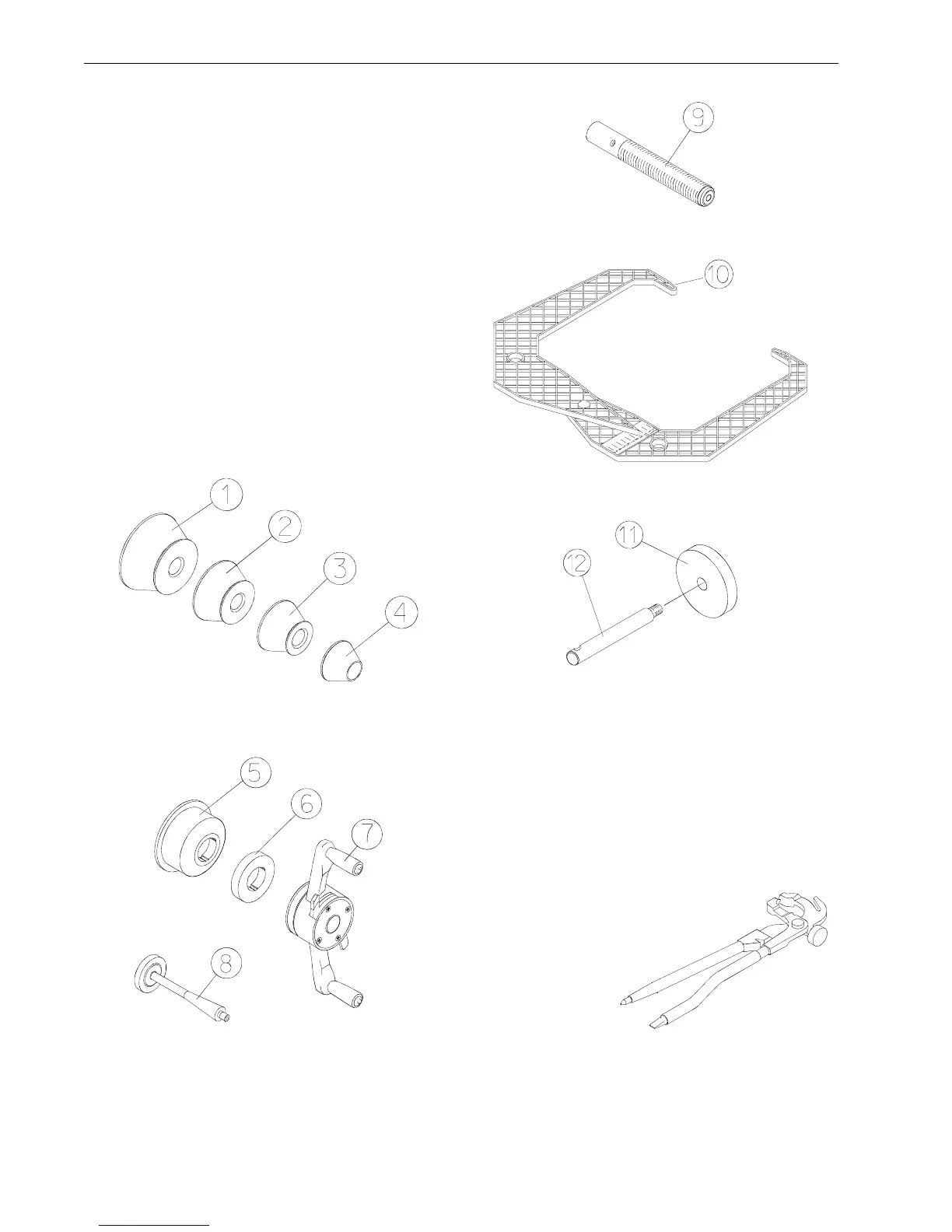

1.5 STANDARD ACCESSORIES
Standard accessories included with the VPI System I
are:
1 EAM0003J08A Cone, 85-132 mm / 3.3”-5.2”
2 EAM0003J07A Cone, 71-99 mm / 2.8”-3.9”
3 EAM0003J06A Cone, 56-84 mm / 2.2”-3.3”
4 EAM0003J05A Cone, 43-63 mm / 1.7” - 2.5”
5 8 - 02040A2 Cup - Pressure
6 8 - 02040A1 Disk - Pressure
7 8 - 02140A Quick Nut
8 EAM0005D40A Weight - Calibration
9 EAM0005D15A Stub Shaft
10 EAA0247G21A Caliper - Rim Width
11 EAC0060G02A Flange - Cover, Hook
12 EAM0006G01A Pin - Accessory
Figure 1
Figure 2
1.6 OPTIONAL ACCESSORIES
Weight Pliers P/N 26 (Figure3).
Versatile weight hammer/plier. In addition to ham-
mering on weight and used weight removal, the model
26 hammer/plier can be used to reshape worn weight
clips and trim weight to size.
Figure 3
