Network Control Module 300 Series Technical Bulletin 45
Definition Window
Identify the NCM to the system by entering data into the attribute
fields on the Definition window. The figure below shows the window
as seen on the OWS; a description of each attribute follows.
If the Definition window is brought up from an existing object, then all
of the fields are filled in with the data from that object.
Fields that allow the data to be modified have the field value boxed in.
When a field entry is modified, the new value is immediately verified
when the field is exited.
For information on how to define the NCM with Graphic
Programming Language (GPL) or JC-BASIC, refer to the Graphic
Programming Language Programmer’s Manual and JC-BASIC
Programmer’s Manual.
I tem E dit V iew A ction Go To Accessory
H elp
Graphic Symbol #
Operating Instr. #
0
0
HDQTRS
NCM Definition
DEVICES DEVICES
Object Name
Expanded ID
NC Language
NCM-1
NCM-1 IN MECH ROOM
ENG
Hardware
NC Subnet Address
NC Node Address
Port 1 Type
Port 2 Type
NT Baud Rate
1
3
N2
9600
Port 1 Baud Rate
Port 2 Baud Rate
200tc2
2

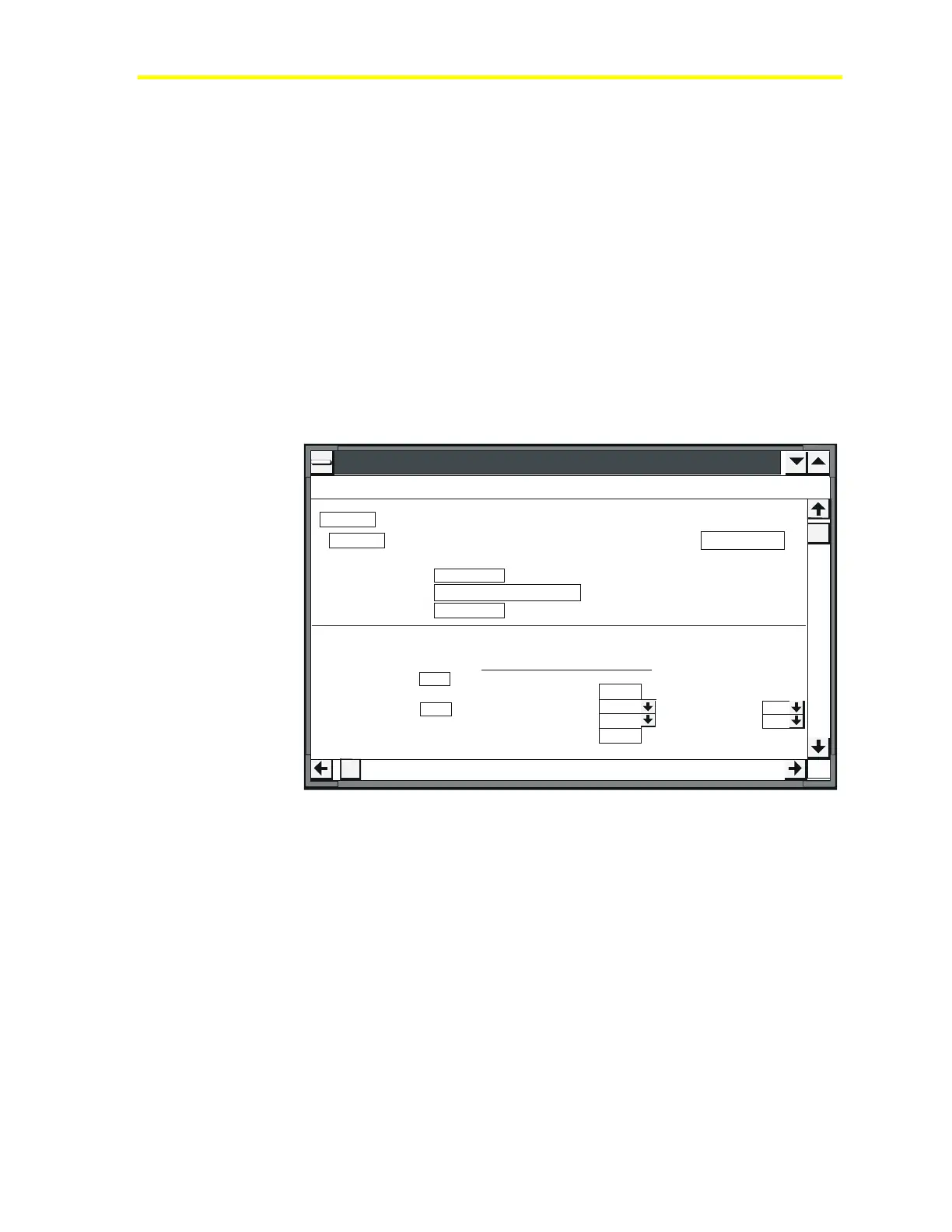

Figure 21: NCM Definition Window
