Johnson Controls 300 Series User Manual

Network Control Module 300 Series Technical Bulletin 83
Top View
Battery Power Supply
Fire-Net NCM
Base
N1 LAN ARCNET Board
topview2
Use the last terminal
for an earth ground.
MIB-OWS-W-0

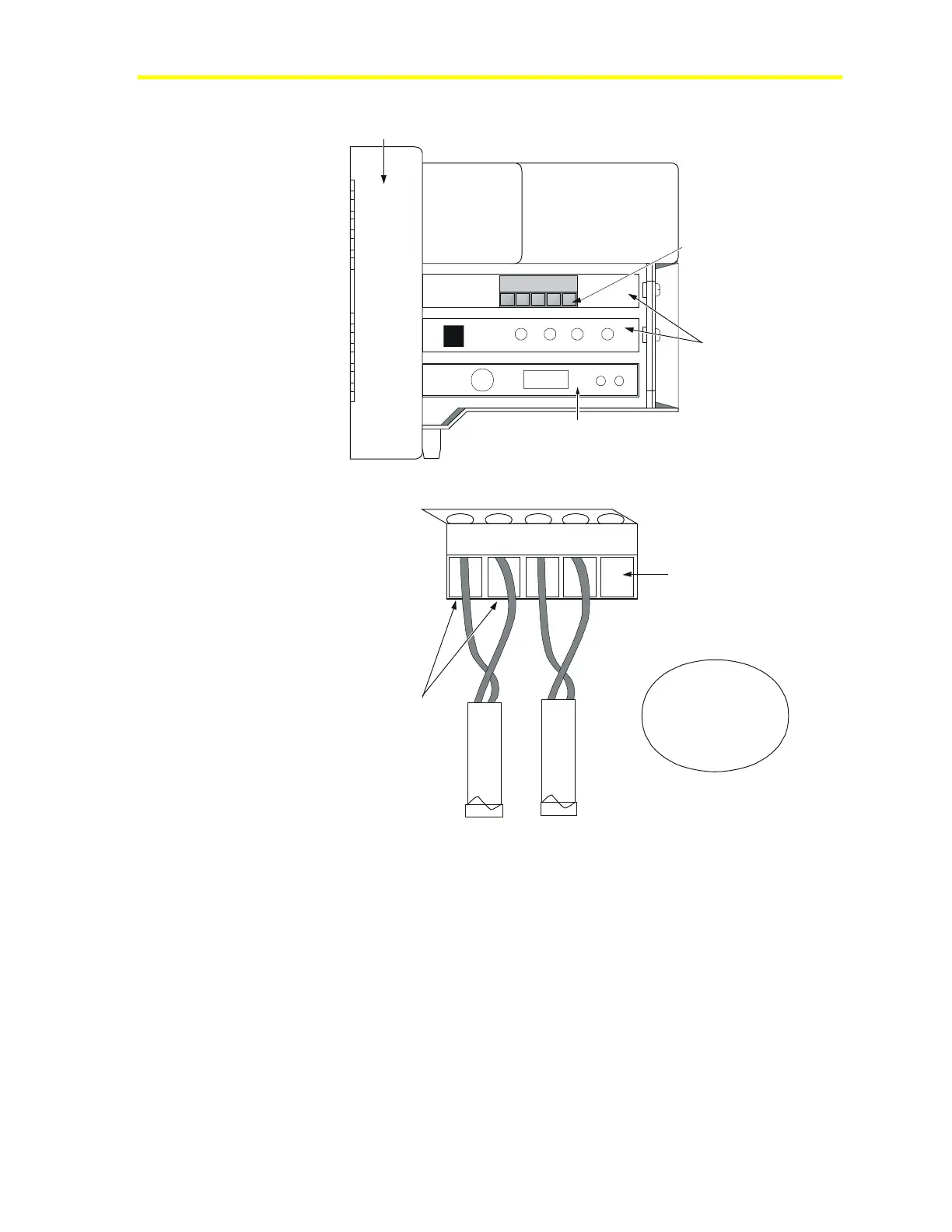

Figure 28: Orientation of the MIB-OWS Terminal Block
ncterm
Use the last terminal
for an earth ground.
Viewed above the
Fire-Net NCM with
the connector
installed.
If the Fire-NET
NCM is at the
end of the line,
use the first
two terminals
from the left to
connect to the FN.
Figure 29: Installing the Twisted Pair into the MIB-OWS Terminal Block
2. Earth ground the terminal block using the far right terminal
(Figure 28).
