CK721-A Network Controller Hardware Installation
24-10025-237 Rev. –
10
NOTE: You have three chances to login to the CK721-A panel. After three attempts, the CK721-A
disables login for about five minutes, after which time you may try again. (Both login and password are
case-sensitive.)

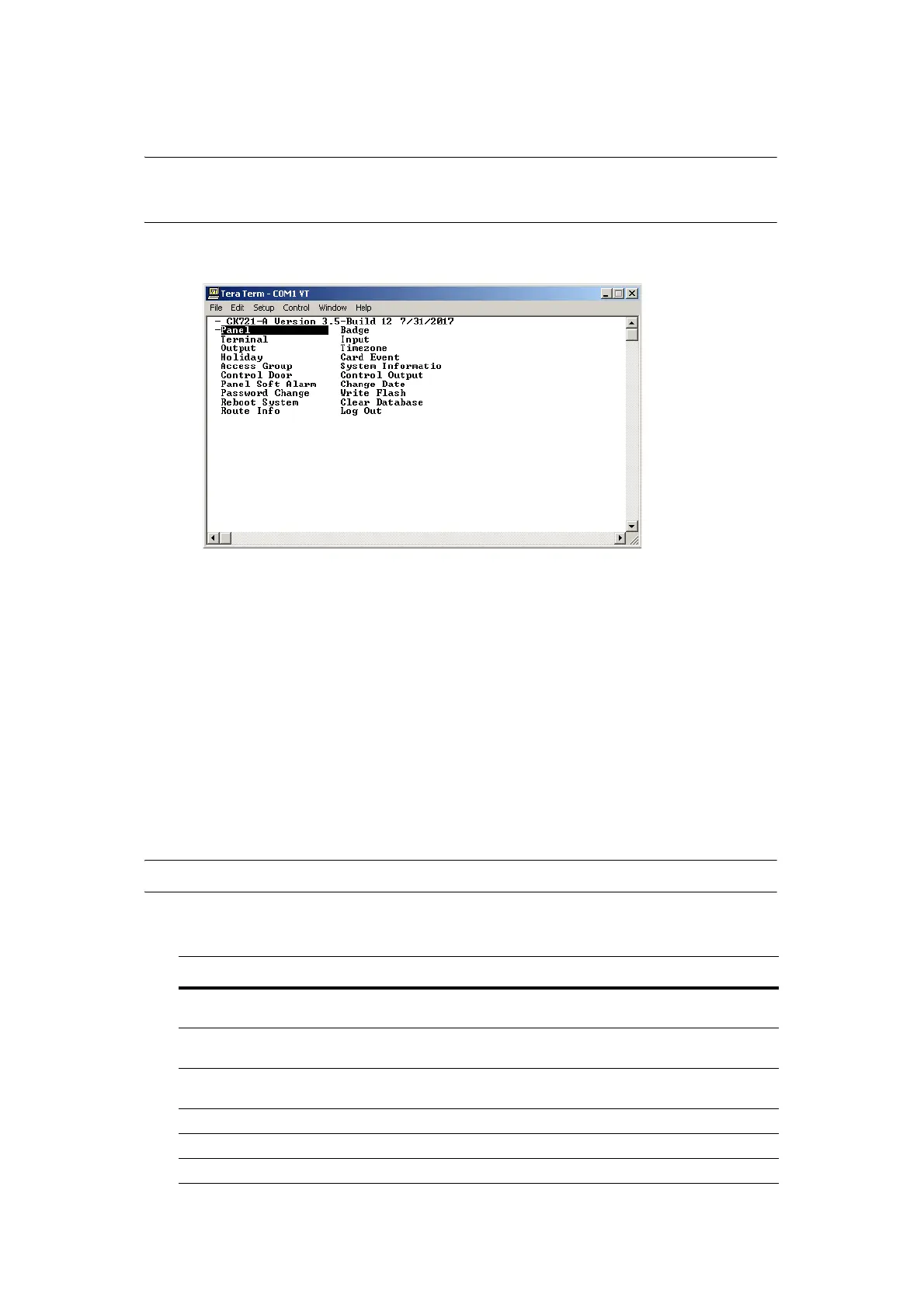

7. The CK721-A panel Main menu appears as shown.
Log Out
After configuring or viewing system parameters, always log out, and then remove the serial
cable. To log out from the CK721-A user interface, select Log Out, and press <Enter>.
Basic Panel Configuration
Panel Menu
Perform the following steps at every CK721-A controller in your system that communicates
with the P2000 server Version 3.8 Build 57 with SP2, or later.
These steps set the IP address and netmask, the preferred primary comm path, and the network
polling of the CK721-A, which are required for communication with the above servers. The
following table shows the required settings for proper operation.
NOTE: These settings must be identical in the P2000 software Panel window.
Table 6: Required Settings - Panel Menu
Setting Value (Direct Connect)
Controller Primary IP Address Enter the IP address for this CK721-A panel (must be a unique value).
Default value: 192.168.2.2.
Controller Primary IP netmask Enter the IP netmask.
Default value: 255.255.255.0.
Primary Host IP Address Enter the IP address of the server. Default value for P2000 server:
192.168.2.1.
Controller Secondary IP Address N/A
Alternate Host IP Address N/A
Preferred Primary Comm Path (Y/N) Y
