Johnson Controls DWCR2 User Manual

Wired Controller DWCR2
36
4.3 Installation Methods

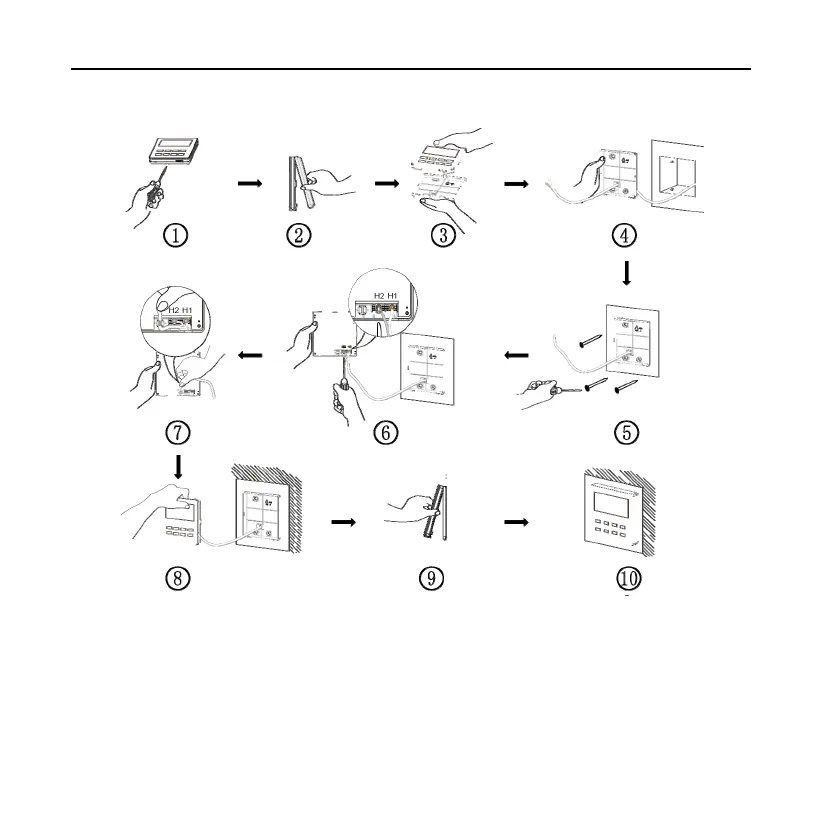

Fig. 23 Installation diagram for wired controller
Fig. 23 is the simple installation process of wired controller; please pay attention
to the following
items:
(1). Before installation, please cut off the power for indoor unit;
(2).
Pull out the 2-conductor twisted pair wire from the installation hole on wall, and pull
