3.10 Timer Setting
The wired controller can set 6 kinds of timers: one time clock timer, everyday
timer, one week timer, two week timer, countdown timer on, and countdown timer off.
Select timer symbol after entering menu page. Press MENU button to enter timer
setting page. Press “
∧
” or “
∨
” button to select one kind of timer. Press “
＜
” or “
＞
”
button to turn on or turn off this timer. Please refer to Fig. 11.

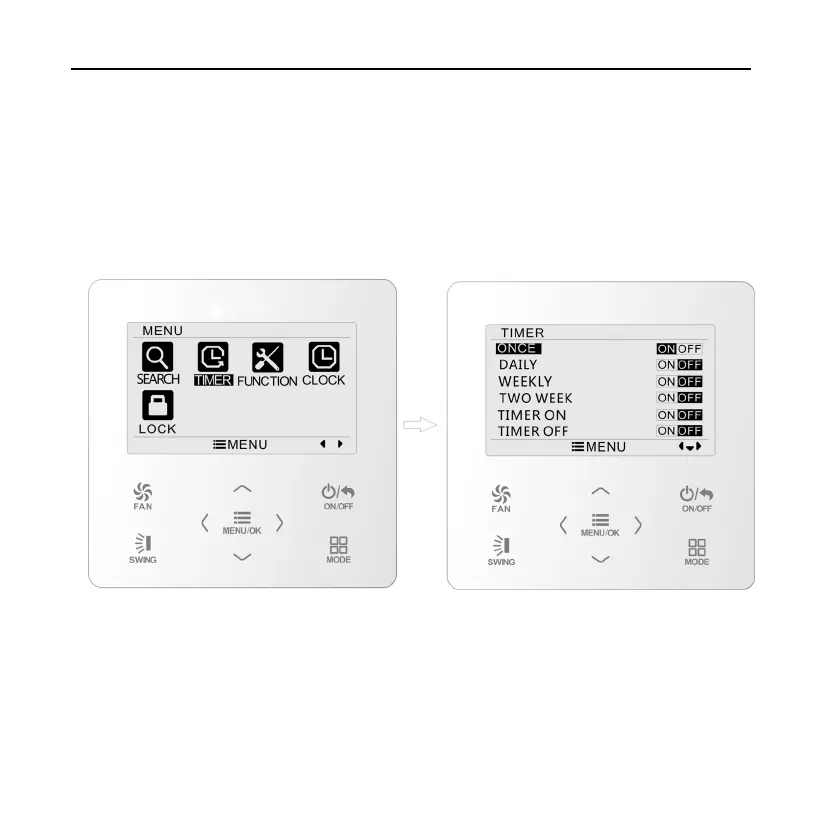

Fig. 11 Turn on or turn off timer
3.10.1 One Time Clock Timer
The wired controller can set one time clock timer. If the unit is off, timer on can be
set. If the unit is on, timer off can be set. This timer is carried out for only once
when timer time is reached and then the timer is turned off automatically.
