3.4 Temperature Setting
Under unit on status, pressing “ ” or “∧∨” button on the main page increases or
decreases set temperature by 1℉(1℃); holding “∧” or “∨” button increases or
decreases
set temperature by 1℃(1℉) every 0.3s.
In cooling, dry, fan and heating mode, temperature setting range is 61
℉～
86
℉
(16℃~30℃). Under auto mode, set temperature cannot be adjusted.
3.5 Fan Setting
Under On status, pressing FAN button can set fan speed circularly as:
Low→Medium low→Medium→Medium high→High→Turbo→Auto→Low

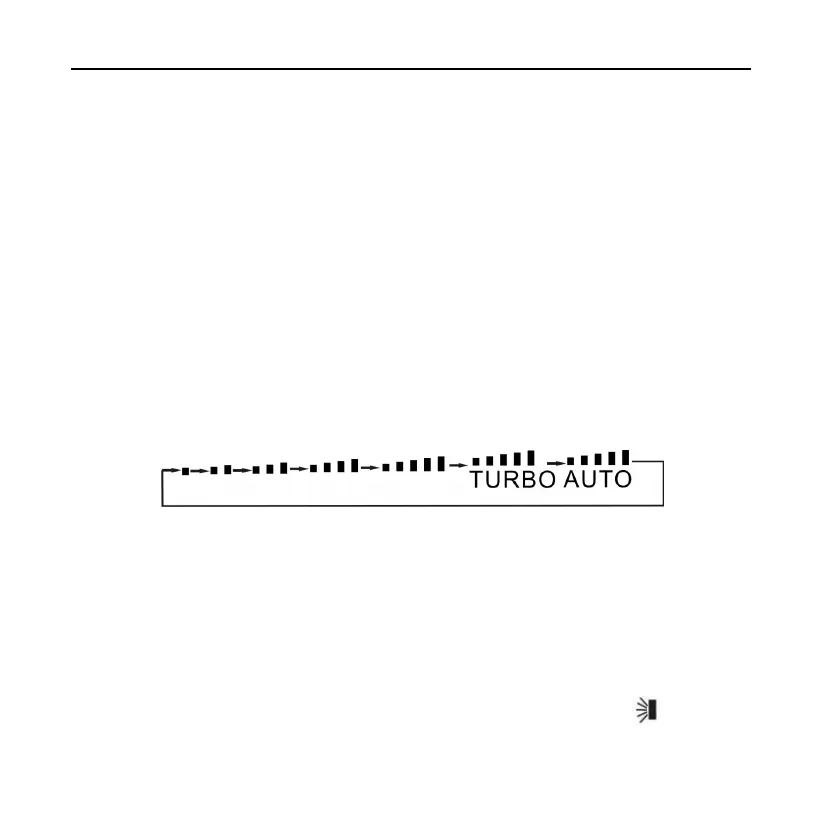

Symbols displayed are as shown in Fig. 6.
Fig. 6 Fan setting
3.6 Swing Setting
In unit on status, press SWING button for louver setting. Two louver modes are
available: fixed-angle louver and simple louver.
When fixed-angle louver mode is set, louver operation is as follows:
In unit on status, press SWING button to select up&down louver. Up&down
swing angle is adjusted as below:
