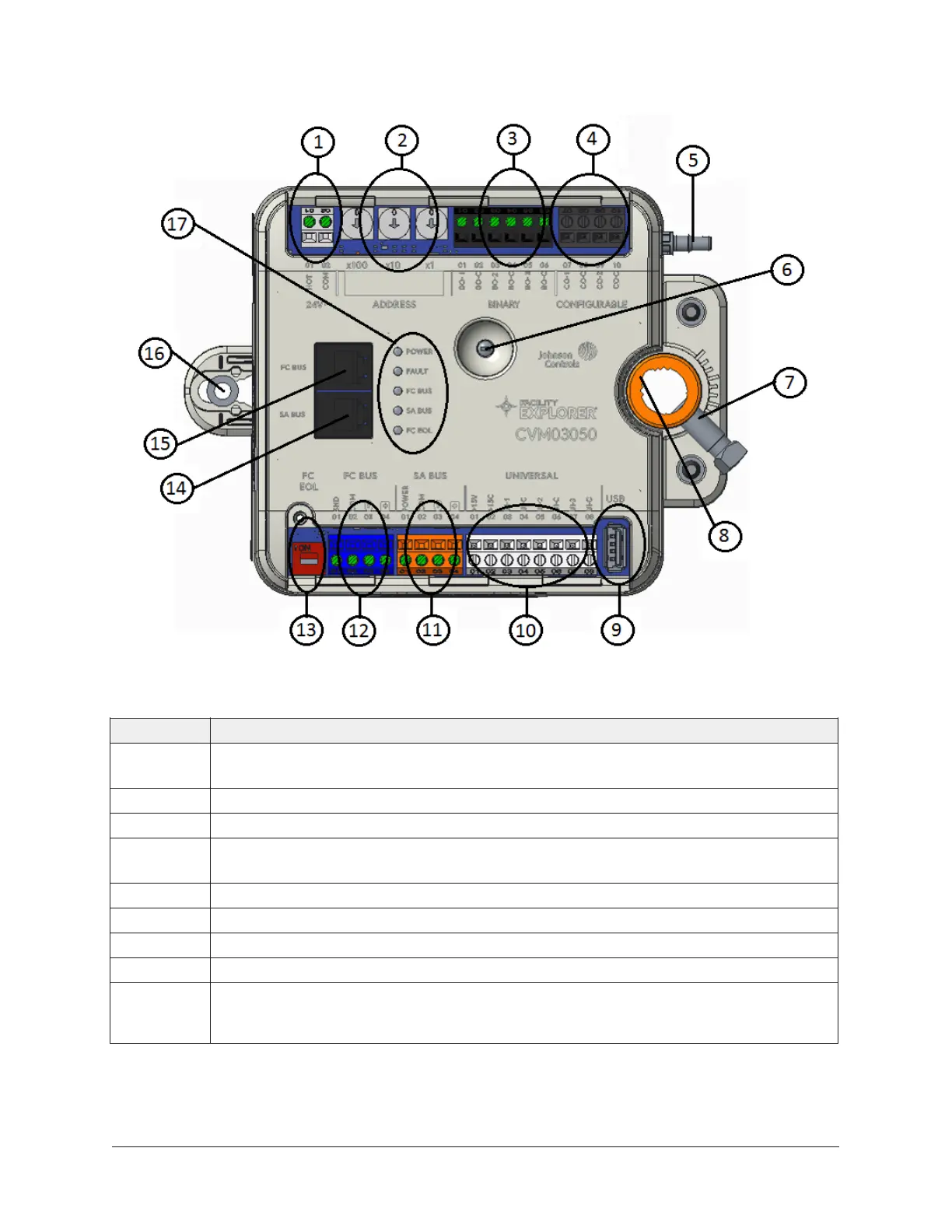

Figure 3: CVM03050 physical features
Table 1: CVM03050 physical features
Callout Physical features: description and references
1
Supply Power Terminal Block: Gray terminal; 24 VAC, Class 2 (see Supply power
terminal block)
2 Device Address Rotary Switches (see Setting the device address)
3 Binary Output (BO) Terminal Block: Black terminals; 24 VAC Triacs (see Table 3)
4
Configurable Outputs (CO) Terminal Block: Black terminals; can be defined as
Voltage Analog Output (0–10 VDC) or Binary Output (24 VAC Triac) (see Table 3)
5 Dual Port Fitting
6 Manual Override Button (see Mounting)
7 Coupler Bolt
8 Controller Coupler (see Mounting)
9
Universal Serial Bus (USB) 2.0 Host Type A Port
Note: The USB feature is not currently supported.
F4-CVM VAV Terminal Equipment Controllers Installation Instructions6

Johnson Controls F4-CVM03050-0 Specifications

General

Brand	Johnson Controls
Model	F4-CVM03050-0
Category	Controller
Language	English
