Johnson Controls FAC2611 User Manual

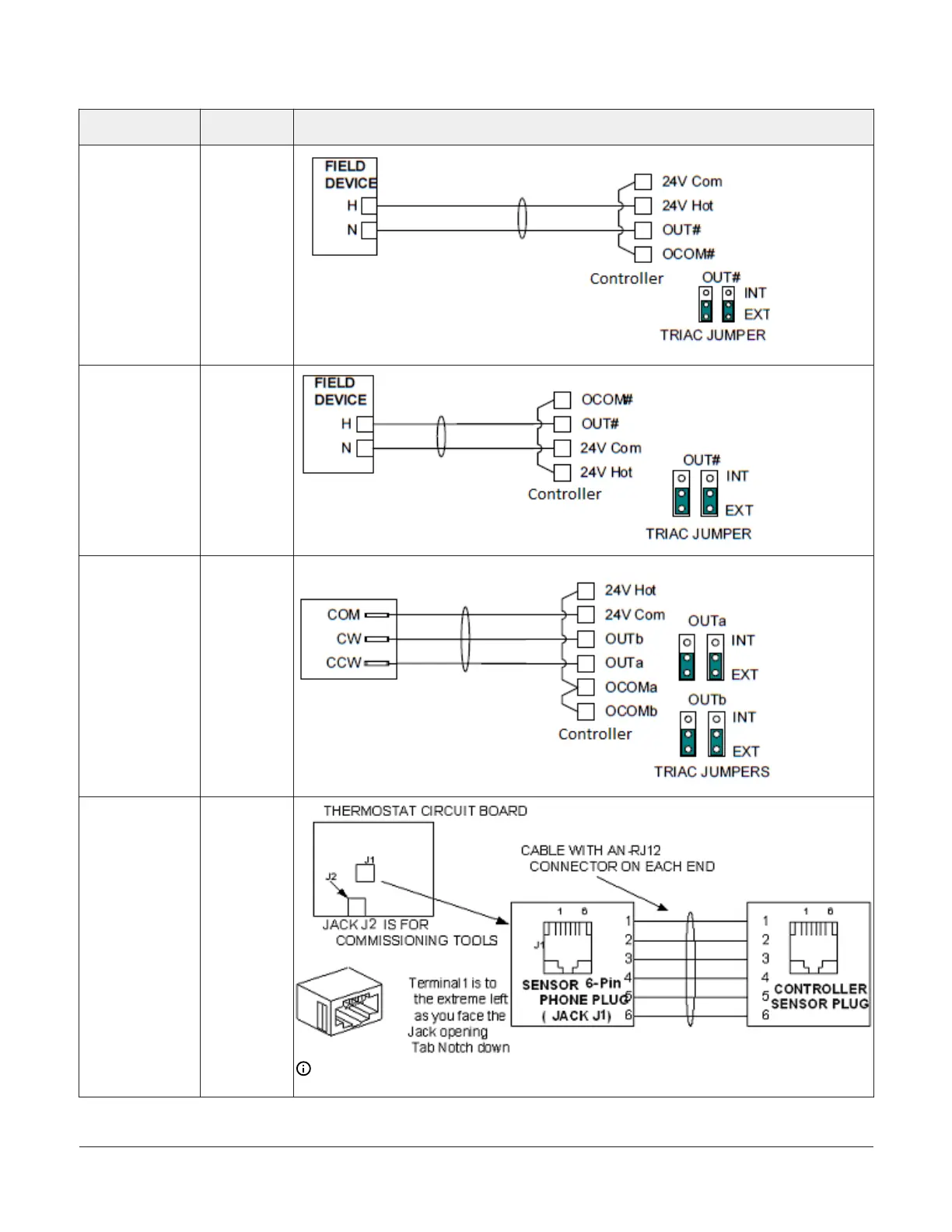

Table 5: Termination details
Type of field
device
Type of Input/
Output
Termination diagrams
24 VAC Binary
Output (Switch
Low, Externally
Sourced)
(Triac Jumpers
Where Applicable)
BO
24 VAC Binary
Output (Switch
High, Externally
Sourced)
(Triac Jumpers
Where Applicable)
BO
Incremental
Control to
Actuator (Switch
High, Externally
Sourced)
(Triac Jumpers
Where Applicable)
BO
Network Stat with
Phone Jack (Fixed
Address = 199)
SA Bus
Note: The bottom jack (J2) on the TE-700 and TE-6x00 Series Sensors is not usable as a zone
bus or an SAB connection.
FAC2611 Advanced Application Field Equipment Controller Installation Guide 15
