Johnson Controls FAC2611 User Manual

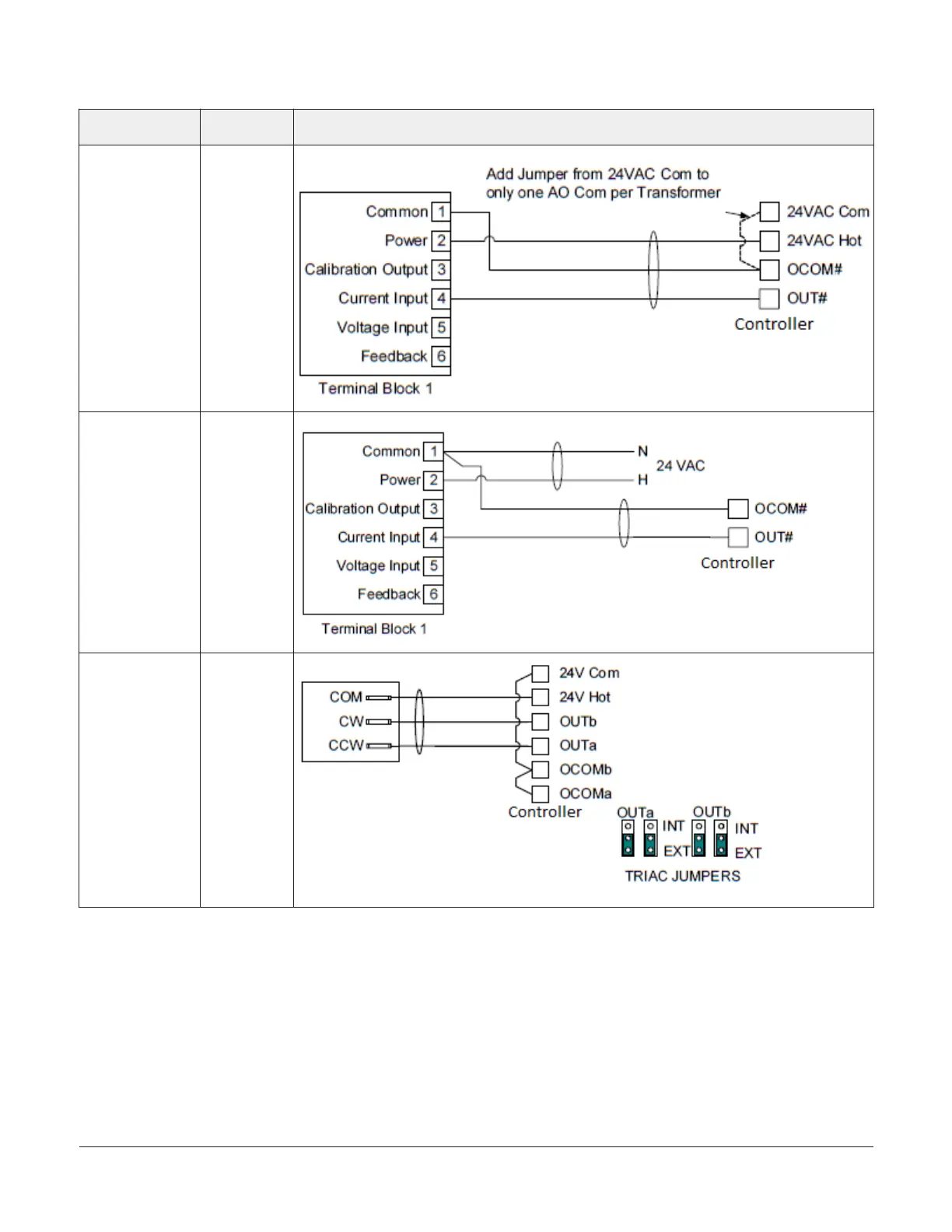

Table 5: Termination details
Type of field
device
Type of Input/
Output
Termination diagrams
4–20 mA Output to
Actuator
AO
4–20 mA Output to
Actuator
AO
Incremental
Control to
Actuator (Switch
Low, Externally
Sourced)
(Triac Jumpers
Where Applicable)
BO
FAC2611 Advanced Application Field Equipment Controller Installation Guide14
