FIRECLASS Fire detection system Connect repeaters
Installation Guide Doc. version 2.0 18
5 Configure the Ethernet switch as described in its
instruction leaflet.
7.1.2 FC1DS Compact Repeater
connection
How to connect the FC1DS Compact Repeater
to the Control Panel
1 Connect the FC1DS compact repeater to the control
panel via:
– Ethernet cable from XP15 on the FC-FI card
– Ethernet cable from standard port on the Ethernet
Switch
– Ethernet fiber optic cable from fiber optic port on
the Ethernet Switch using the O-Ring redundant
interconnection.
2 Connect the mains earth lead to the earth tag.
3 Connect the 24 VDC power from FC-FI to the com-
pact repeater using the redundant lines as shown in
Table 2.
7.1.3 FC8AS AC Repeater connection
How to connect the FC8AS AC Repeater to the
Control Panel
1 Connect the GUI of the FC8AS repeater to the con-
trol panel via:

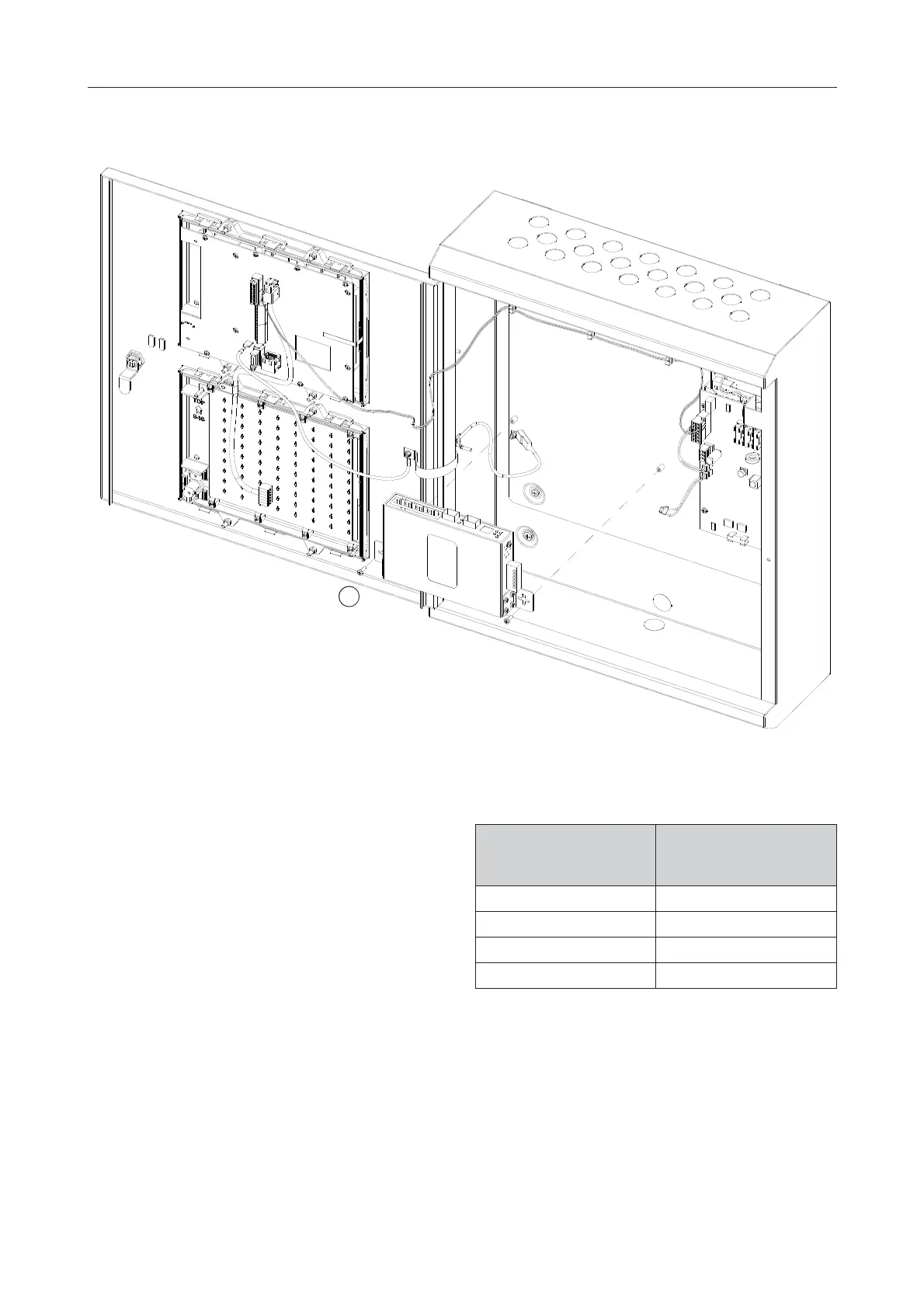

Fig. 16: Mounting a FC8AS repeater with an Ethernet Switch
1– Earth cable screw (optional)
1
FC-FI Power
Terminals
GUI (Graphical User
Interface)- Power
Terminals
XT5 (24V OUT1) + X501 (+24V DC)
XT5 (24V OUT1) - X501 (0V)
XT5 (24V OUT2) + X502 (+24V DC)
XT5 (24V OUT2) - X502 (0V)
Table 2: Compact Repeater- Power connections to FC-FI
