FIRECLASS Fire detection system Install FCZ4x or FCZ8x Zonal Indicators
Installation Guide Doc. version 2.0 44
16 Install FCZ4x or FCZ8x Zonal
Indicators
At this stage, install any FCZ4x (40 LEDs) or FCZ8x zonal
indicators (80 LEDs) that may be included in the system.
The FCZ8x and FCZ4x can be used with a panel or with
a FC1DS or a FC8AS repeater. Fit these to the panel
door.
FCZ8DS (FireClass 80 Zone Display) Details
The LEDs are divided between ‘Part A’ and ‘Part B’, with
40 LEDs each. Part A has its lowest address Bit.0 = 0
and Part B has its lowest Address Bit.0 = 1 on the I2C
BUS.

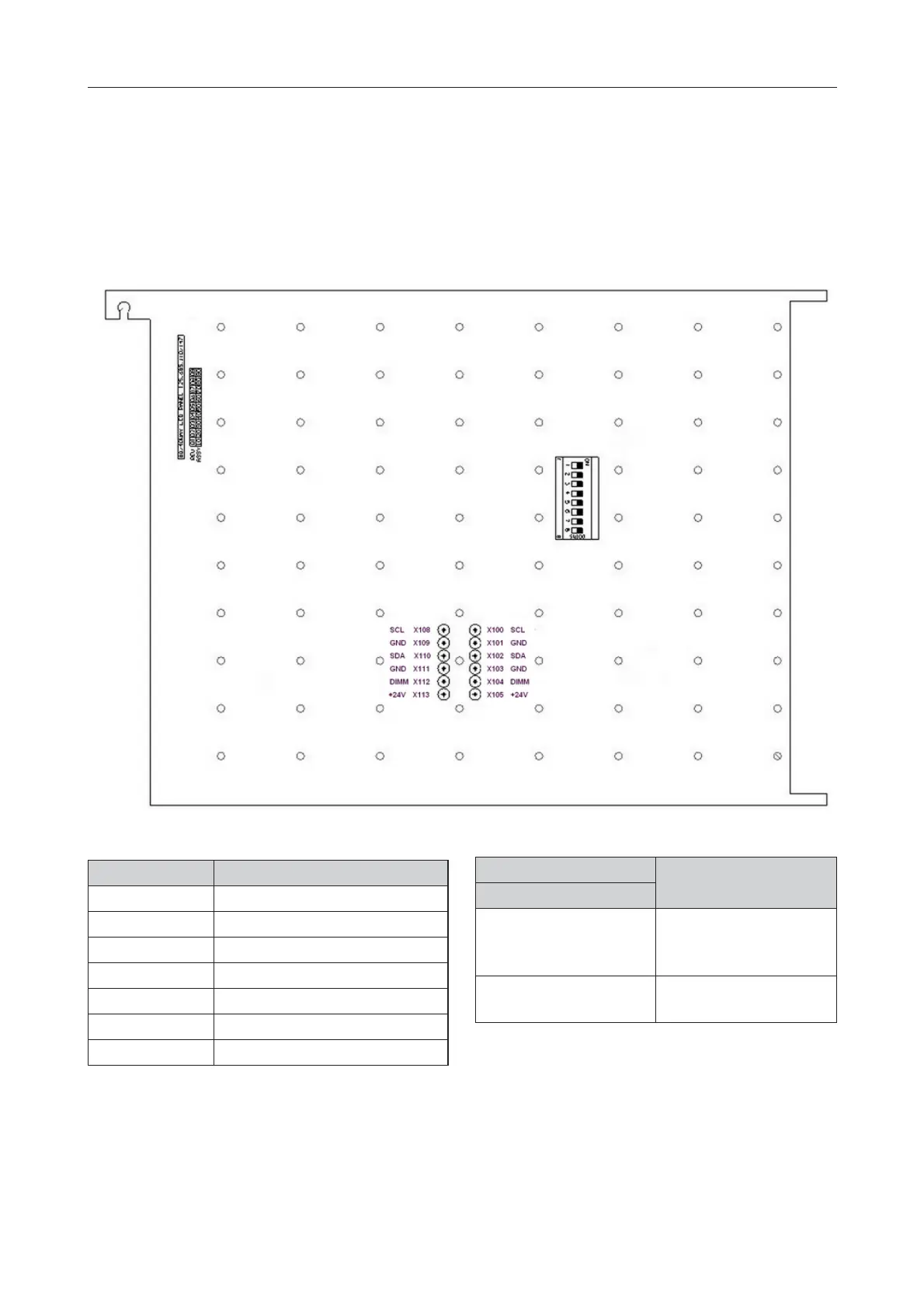

Fig. 34 :FCZ8DS – Switch and terminal positions
Item Function
SW100 DIP switch
X100, X108 New X-BUS – (SCL of I2C)
X101, X109 New X-BUS – (GND)
X102, X110 New X-BUS – (SDA of I2C)
X103, X111 New X-BUS – (GND)
X104, X112 New X-BUS – (Dimming)
X105, X113 New X-BUS – (Power +24V)
Table 39: FCZ8DS – Switch and terminal functions
SW100 Address-Part A
Position 1 and 2
ON Binary coded address
SW100.1=Bit.1
SW100.2=Bit.2
OFF * ON=0
OFF=1
Table 40: FCZ8DS - Address setting-Part A
* Default.
