FIRECLASS Fire detection system Install CCU3 and MOXA modules
Installation Guide Doc. version 2.0 41
15 Install CCU3 and MOXA
modules
15.1 Fit DIN Rail Modules
You need to fit the DIN rail to the left side of the panel
housing, at the top, as shown in Fig. 33. You need to
purchase the DIN rail, the M4 Nyloc nut and the M4
washer separately. The recommended slotted DIN rail
size is 180 mm.

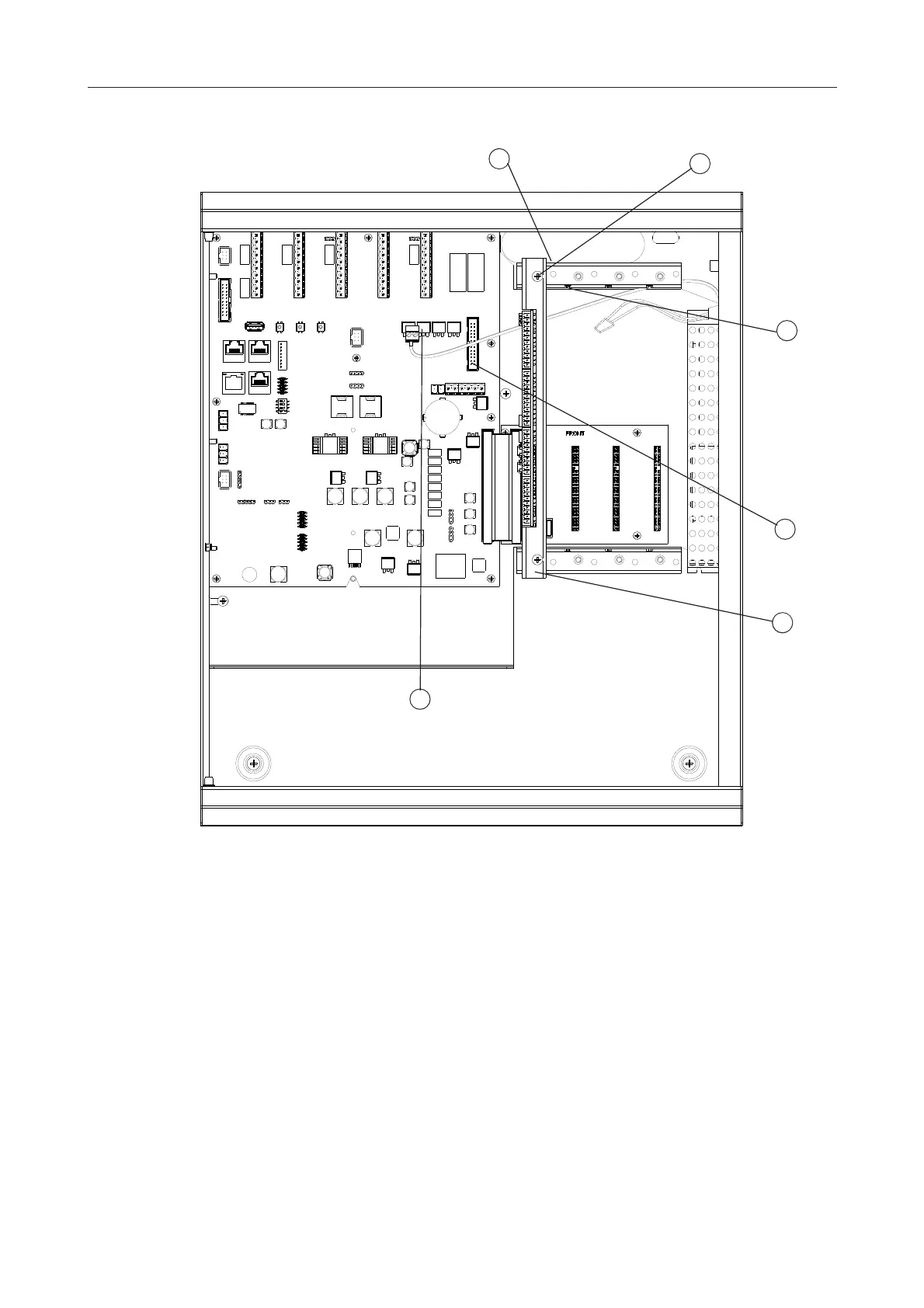

Fig. 32: FB800 and IOB800 - Fitting to FC700 series panels - Part 2
1 – Iron mounting plate
2 – Screw for fixing the iron mounting plate
3 – Second position (second IOB800)
4 – XP3 IO-BUS interface on FC-FI for connection of IOB800 boards
5 – First position (FB800 or First IOB800)
6 – XT8 Power 24V terminals on FC-FI for connection of FB800
1
2
3
4
5
6
