FIRECLASS Fire detection system Mounting a FC702/708/718 panel to the wall
Installation Guide Doc. version 2.0 7
– Tighten the four screws until the panel is fitted
securely.
– Remove any debris from the housing.

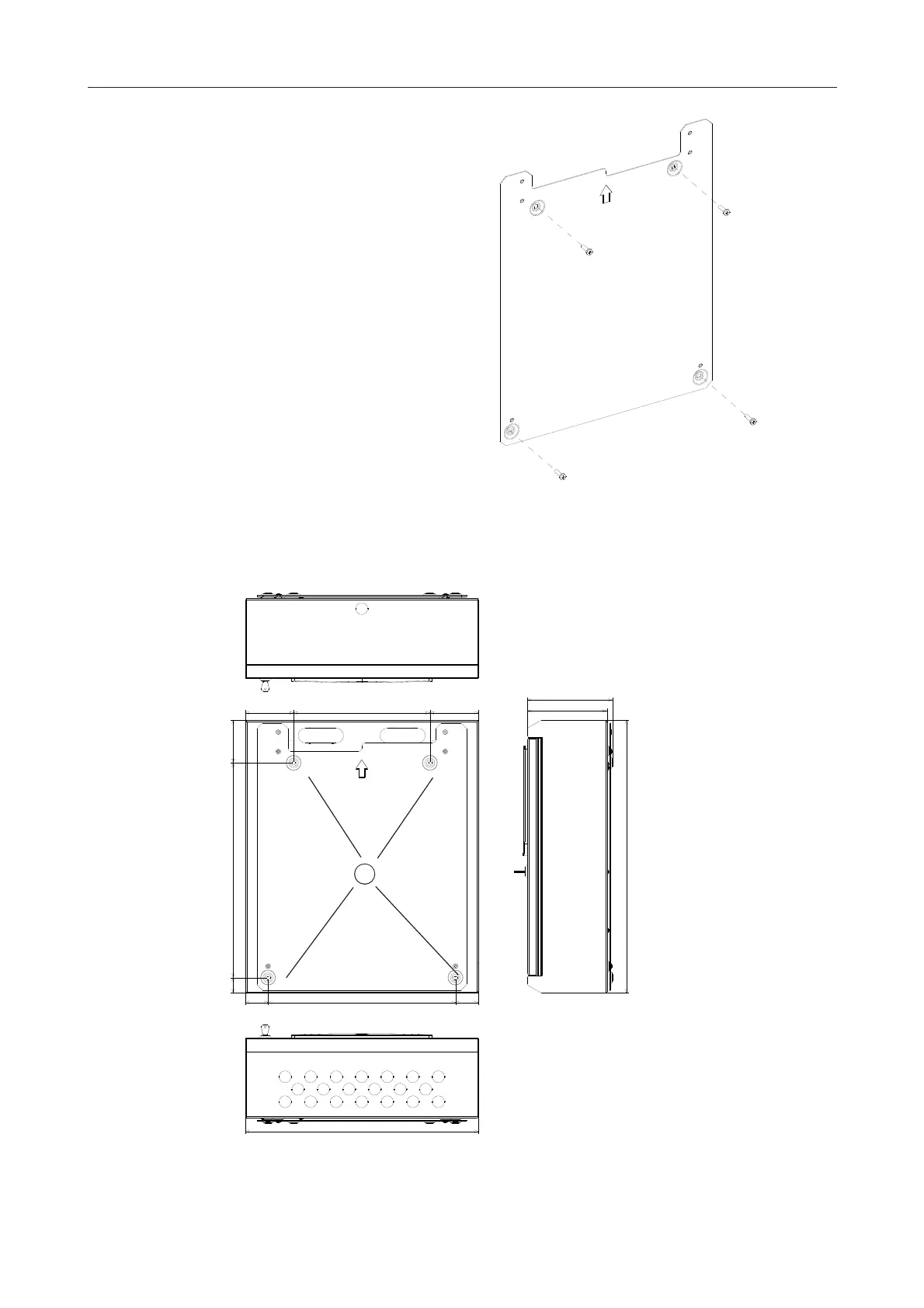

Fig. 1: Fixing the FC702/718/708 panel mounting plate
240
27 378 75
40 330 40
85 85
149.5
140
480
410
Fig. 2: FC702S - Mounting plate fixing and overall dimensions in mm
1 – Mounting frame holes
1
