RWF II ROTARY SCREW COMPRESSOR UNITS
MAINTENANCE
070.610-IOM (JUN 11)
Page 48

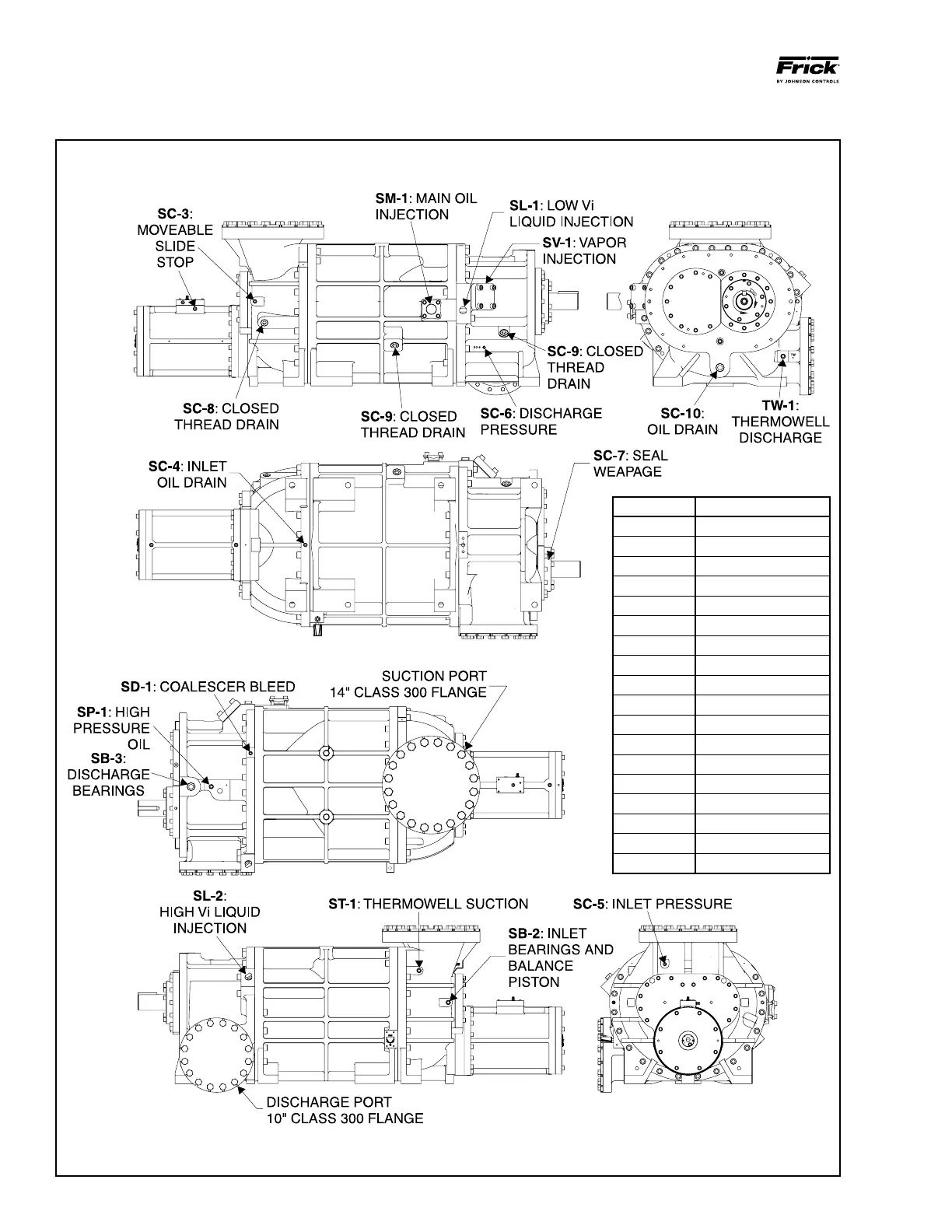

COMPRESSOR PORT LOCATIONS - RWF II 1080
PORT SIZE
SB-2 3/4-14 NPTF
SB-3 1½-11½ NPTF
SC-3 1/2-14 NPTF
SC-4 1/2-14 NPTF
SC-5 3/8-18 NPTF
SC-6 3/8-18 NPTF
SC-7 1/8-27 NPTF
SC-8 1¼-11½ NPTF
SC-9 1½-11½ NPTF
SC-10 1½-11½ NPTF
SD-1 1/2-14 NPTF
SL-1 1¼-11½ NPTF
SL-2 1¼-11½ NPTF
SM-1 2” SQ FLANGE
ST-1 3/4-14 NPTF
SV-1 3” SQ FLANGE
TW-1 3/4-14 NPTF
SP-1 3/4-14 NPTF
