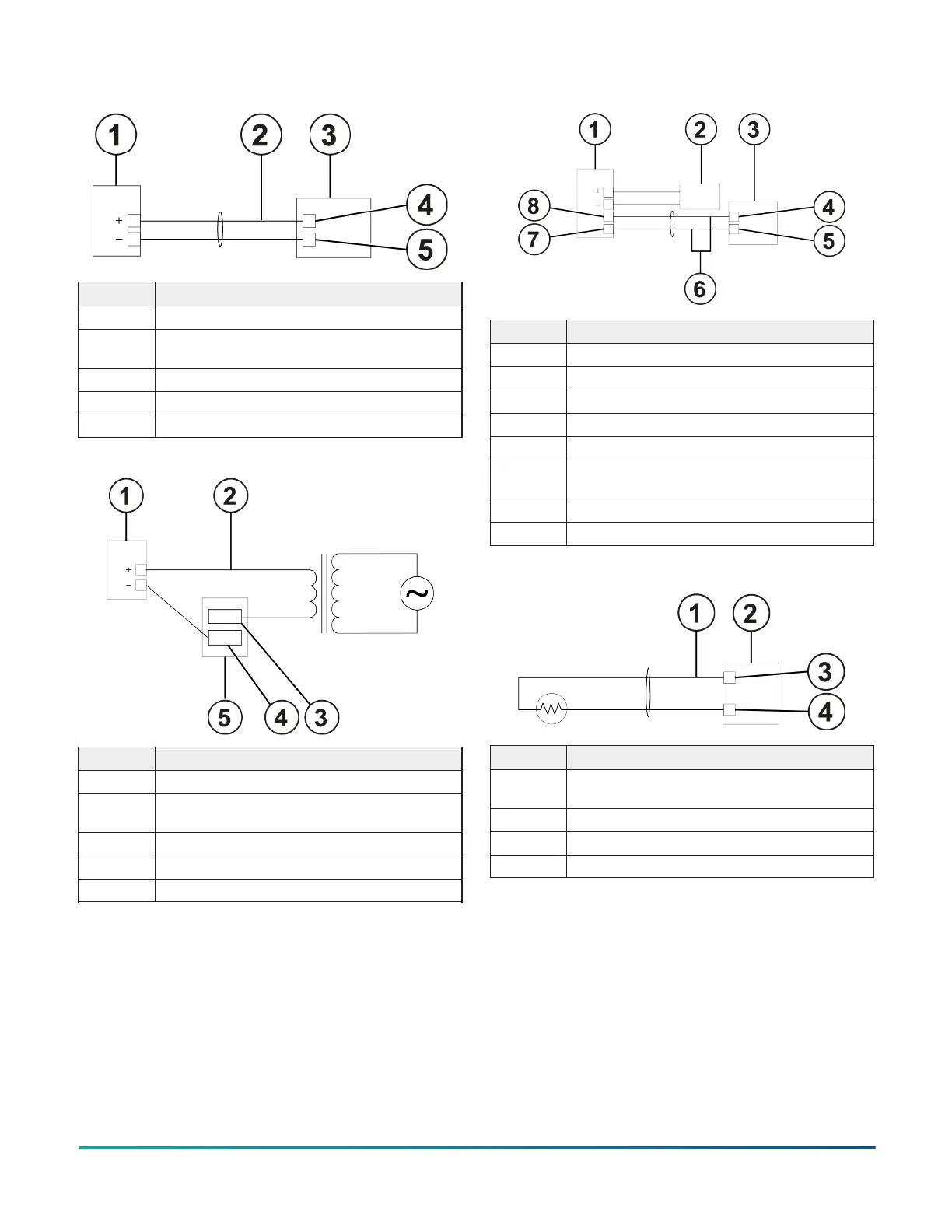

Figure 13: Analog output wiring
Callout Description
1 Field device
2 22 AWG copper stranded twisted wire up to
100 m (328 ft) in length.
3 Controller
4 Analog output (AO) terminal
5 COM terminal
Figure 14: DO wiring
Callout Description
1 Field device
2 20 AWG copper stranded twisted wire up to
100 (328 ft) m in length
3 DO terminal
4 COM terminal
5 Controller
Figure 15: UI voltage mode wiring
Callout Description
1 Field device
2 Power supply
3 Controller
4 UI terminal
5 COM terminal
6 22 AWG copper stranded twisted wire up to
100 m in length
7 COM terminal
8 OUT terminal
Figure 16: UI resistance mode
Callout Description
1 22 AWG copper stranded twisted wire up to
100 m (328 ft) in length
2 Controller
3 UI terminal
4 COM terminal
FW-14 Quick Start Guide6
