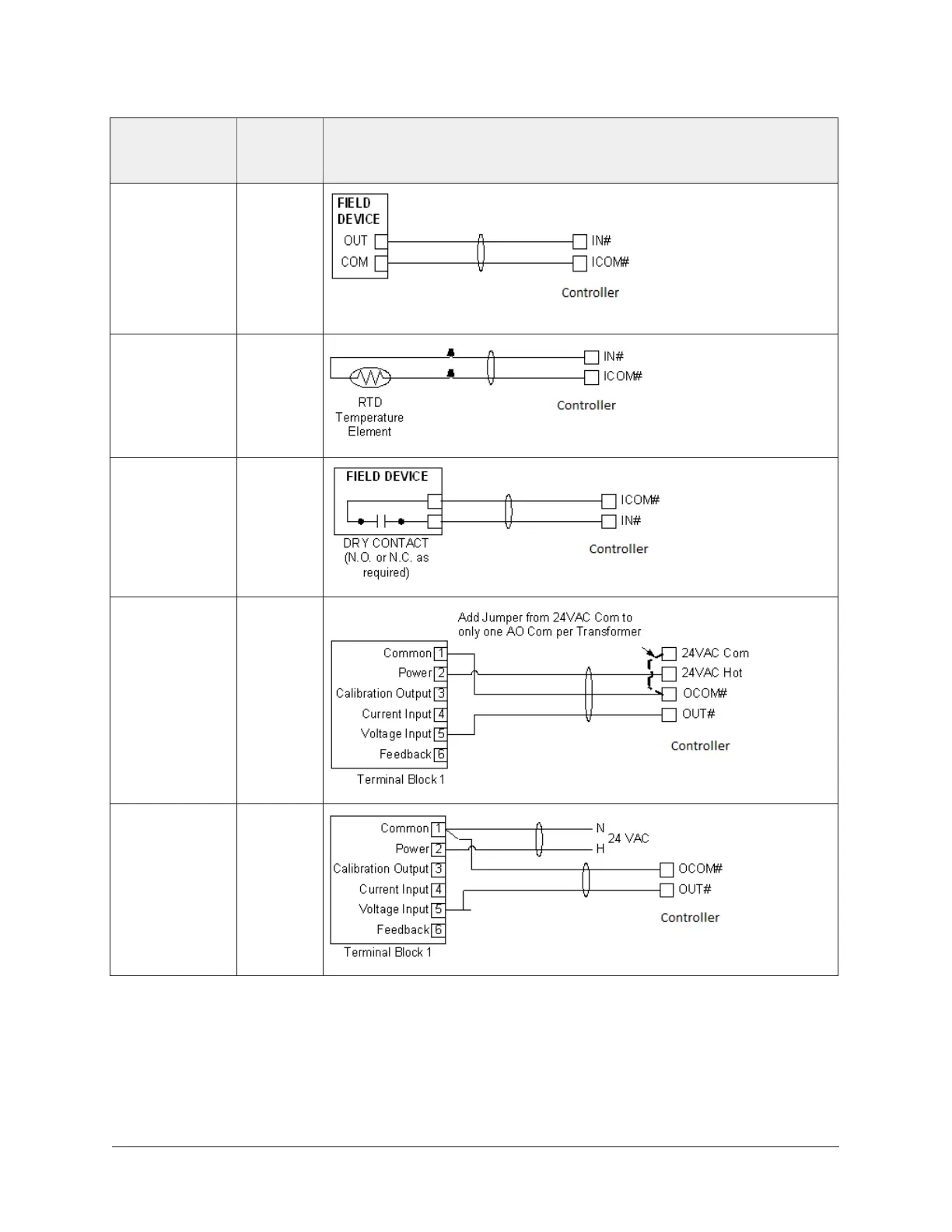

Table 2: Termination details
Type of field
device
Type of
Input/
Output
Termination diagrams
Voltage Input
(Self-Powered)
UI
Temperature
Sensor
UI
Dry Contact UI
0–10 VDC
Output to
Actuator
(External
Source)
CO
0–10 VDC
Output to
Actuator
(Internal
Source)
CO
FX-PCV1615/1626/1628/1630 Programmable VAV Box Controllers Installation Instructions12
