Wiring diagrams
WARNING
High voltage
The outdoor power supply must be disconnected
before maintenance. This equipment uses an inverter
drive that stores hazardous energy up to 5 min after
power is removed. Wait for more than 5 min before
performing electrical work after power is removed.

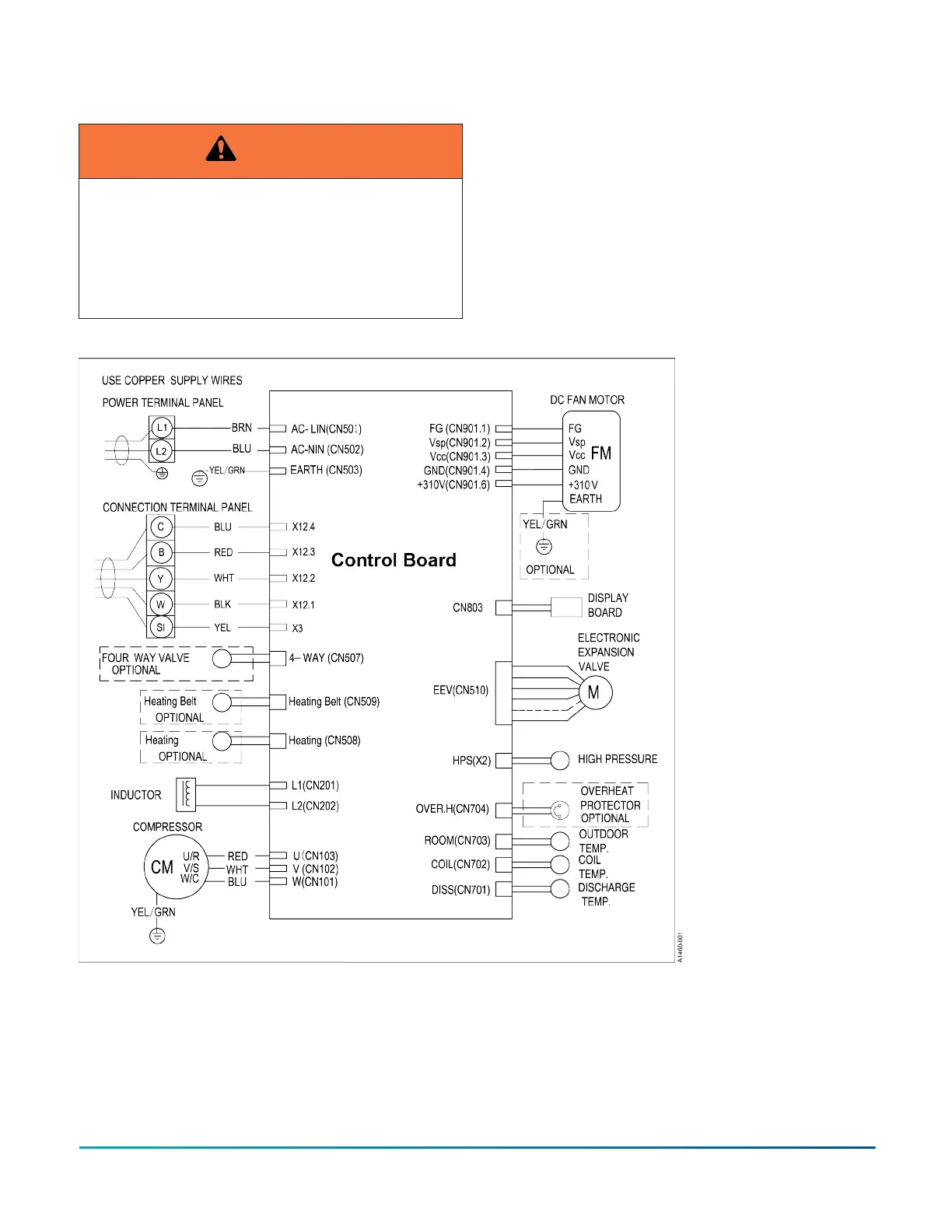

Figure 24: HMH72B24 and HMH72B36 electrical wiring diagram
Installation Manual: HMH7 Series - 17 SEER Horizontal Discharge Modulating Heat Pump22
Johnson Controls Ducted Systems
