6.2 Setting an SLC Address for a Module
FlashScan capable control or relay modules, as well as detectors, can be set to one of 159 addresses
(01-159) and are factory preset with an address of “00”. CLIP mode detectors and panels are
limited to addresses 01-99.
To set an SLC address, use a common screwdriver to adjust the rotary switches on the module to
the desired address. The unit shown in Figure 6.6 is set at address “35”. When finished, mark the
address on the module face in the place provided.

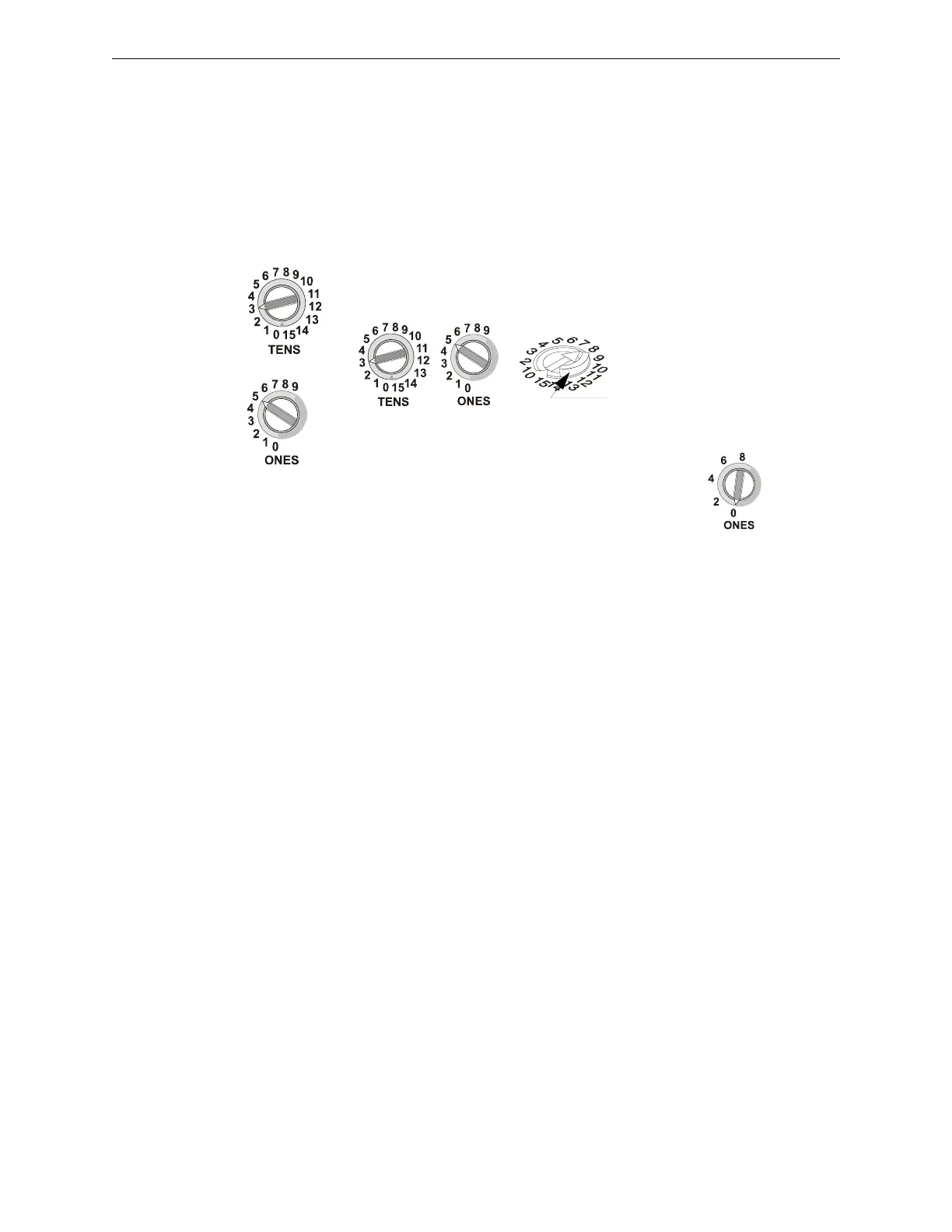

Figure 6.6 Setting SLC Address on Module
Type H Rotary
Switches
Breakaway Tab - Modules come
with a raised breakaway tab on the
TENS rotary switch. This tab must
be removed when the module is on
an FACP that uses more than 99
addresses.
SLC-setadd.cdr,SLC-setaddtpH.wmf, SLCbrktabs.wmf
Dual monitor modules: On dual monitor modules, only even
numbers appear on the ONES rotary switch. The module takes
both the selected address and the next-higher address.
Type V Rotary
Switches
