Connecting a Releasing Device to the Addressable Control Module Control Modules
7.5 Connecting a Releasing Device to the Addressable
Control Module
The M300CJ-REL module can control 1 A of current. Make sure to keep total system current
within the limits of the power supply. You can power the module from the power supply of the
Control Panel or any UL 864-listed 24 VDC regulated power-limited power supply for Fire
Protective Signaling. For more information, refer to the Device Compatibility Document.
Critical Requirements. When connecting a releasing device to the M300CJ-REL module, note
the following:
1. See “Power Considerations” on page 52 for information on monitoring 24 VDC power.
2. Do not T-tap or branch a Style Y or Style Z circuit.
3. Only one (1) 24V solenoid or two (2) 12V solenoids in series can be connected to the M300CJ-
REL.
SLC (-)
SLC (+)
NON-RESETABLE 24 VDC
POWER SUPPLY ISOLATED,
REGULATED, POWER LIMITED
PER NFPA 70. LISTED FOR
FIRE PROTECTION WITH
BATTERY BACKUP.
(-)
(+)
Compatible UL-listed
24 VDC releasing device.
One (1) device maximum.
Module polarities are shown in alarm condition.
All wiring shown is supervised and power-limited.

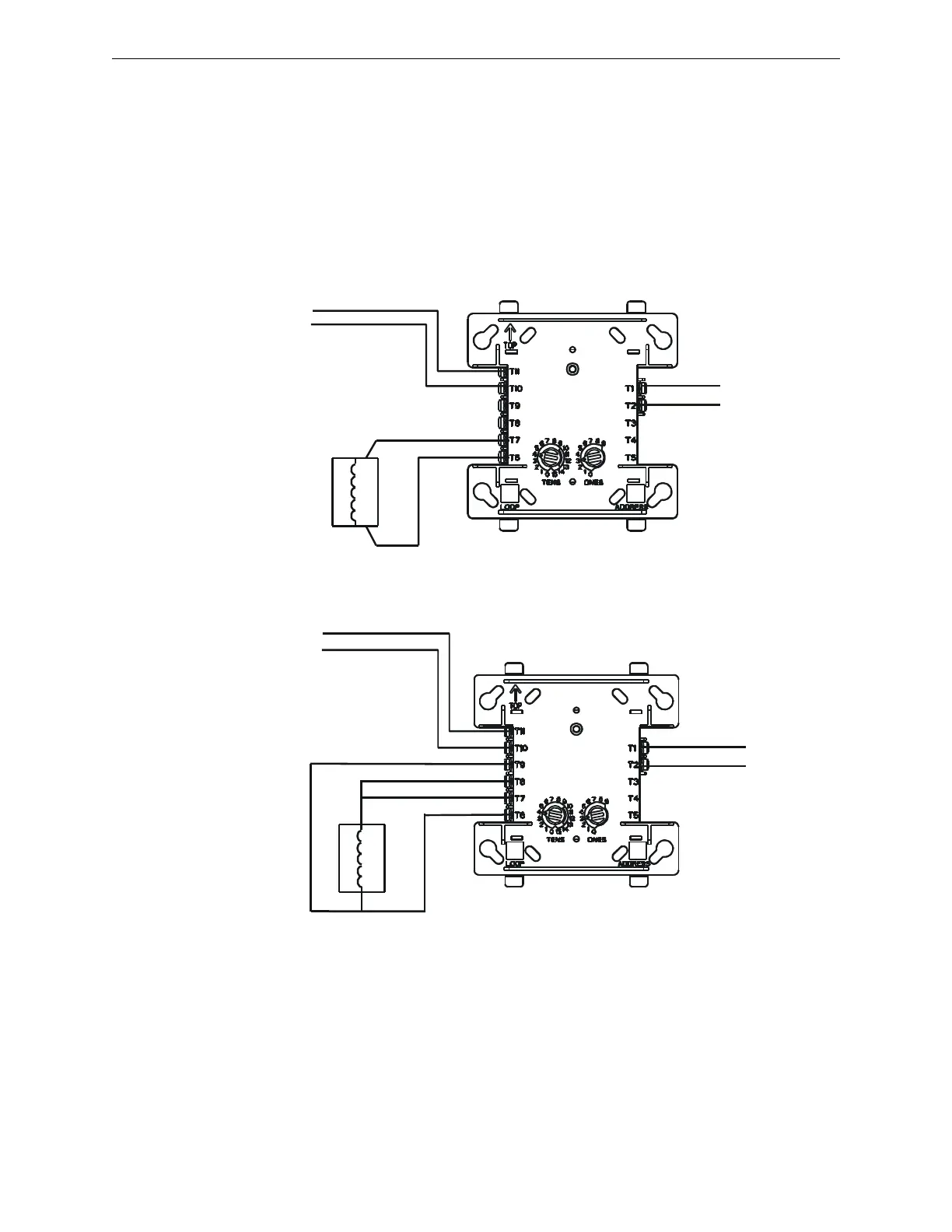

Figure 7.6 NPFA Class B Wiring of the M300CJ-REL
Compatible UL-listed
24 VDC releasing device.
One (1) device maximum.
SLC (-)
SLC (+)
(-)
(+)
Figure 7.7 NPFA Class A Wiring of the M300CJ-REL
Module polarities are shown in alarm condition.
All wiring shown is supervised and power-limited.
M300CJ-REL
M300CJ-REL
When using the
M300CJ-REL for Class B
applications, remove jumper J1.
NON-RESETABLE 24 VDC
POWER SUPPLY ISOLATED,
REGULATED, POWER LIMITED
PER NFPA 70. LISTED FOR
FIRE PROTECTION WITH
BATTERY BACKUP.
