Johnson Controls IFC-1010 Wiring Manual

Johnson Controls, Inc. SLC Wiring Manual — P/N 51870:G 04/23/2009 63
Appendix C: Terminal Conversion Charts for V-type
and H-type Devices
C.1 M300RJ
Table C.1 M300RJ Terminal Conversions
V-type Terminal Number Terminal Function H-type Terminal Number
1SLC -1
2SLC +2
3Unused3
4 Normally Open (1) 5
5 Normally Closed (1) 6
6 Relay Common (1) 7
7 Normally Open (2) 8
8 Normally Closed (2) 9
9 Relay Common (2) 10
N/A Unused 4
N/A Unused 11

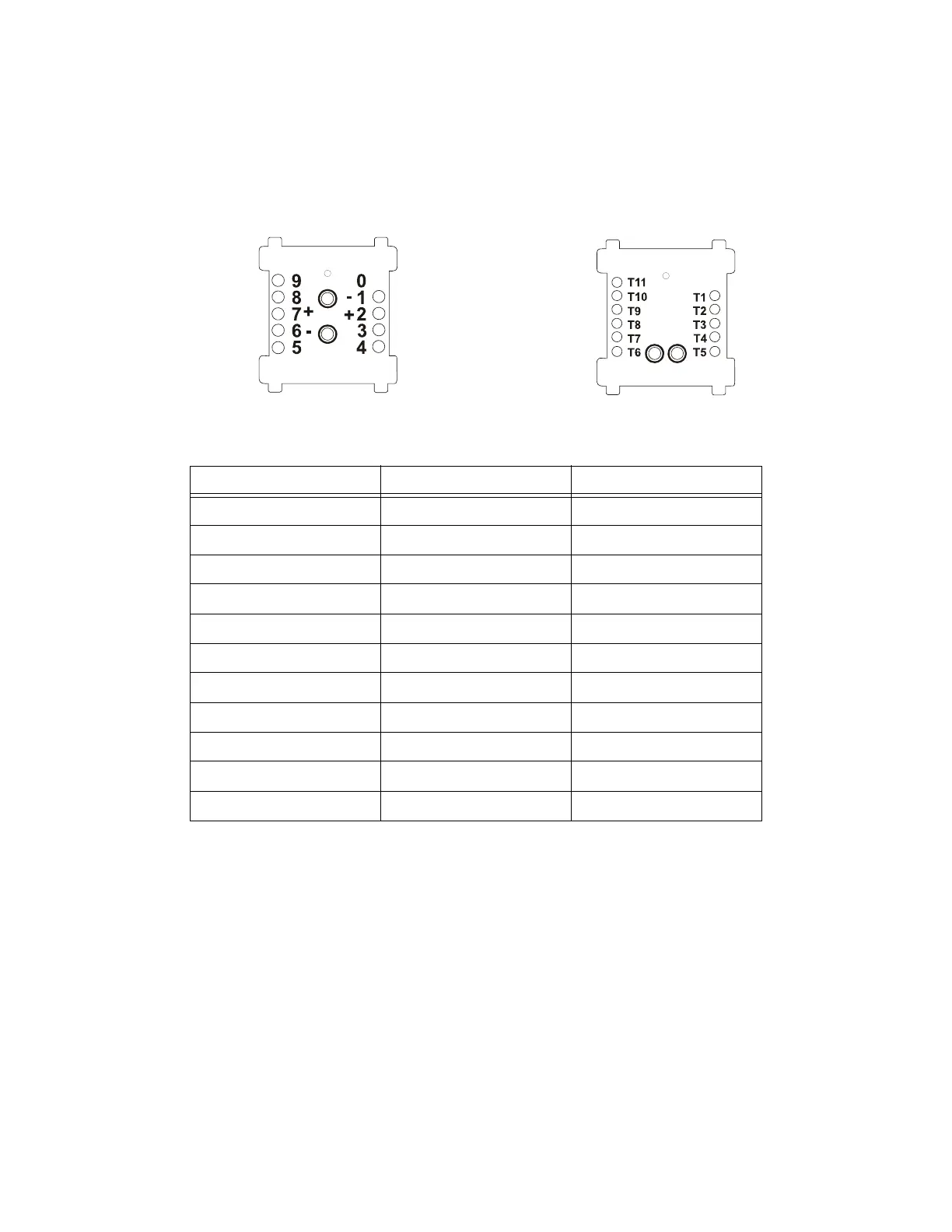

Type V
Type H
Common 2
Closed 2
Open 2
Common 1
Closed 1
Open 1
SLC -
SLC +
SLC -
SLC +
Common 2
Closed 2
Open 2
Common 1
Closed 1
Open 1
