Johnson Controls, Inc. SLC Wiring Manual — P/N 51870:G 04/23/2009 39
NFPA Style B IDC Using Zone Interface Modules Monitor Modules
6.6 NFPA Style B IDC Using Zone Interface Modules
Connect the SLC wiring to the M302MJ module terminals 1 (–) and 2 (+). Each module takes one
address on the SLC. Use the rotary switches on the module to set it to the required SLC address.
Figure 6.10 shows typical wiring for a supervised and power-limited NFPA Style B (Class B) IDC
using the M302MJ module.
Module installation notes:
1. The Initiating Device Circuit (IDC) is supervised and current-limited to 210 microamps
@ 24 VDC (nominal).
2. The IDC provides the following services (do not mix):
Fire alarm service
Automatic and manual waterflow alarm service with normally open contact devices
Sprinkler supervisory service with normally open contact devices
Security service
3. Refer to the Device Compatibility Document for compatible smoke detectors.

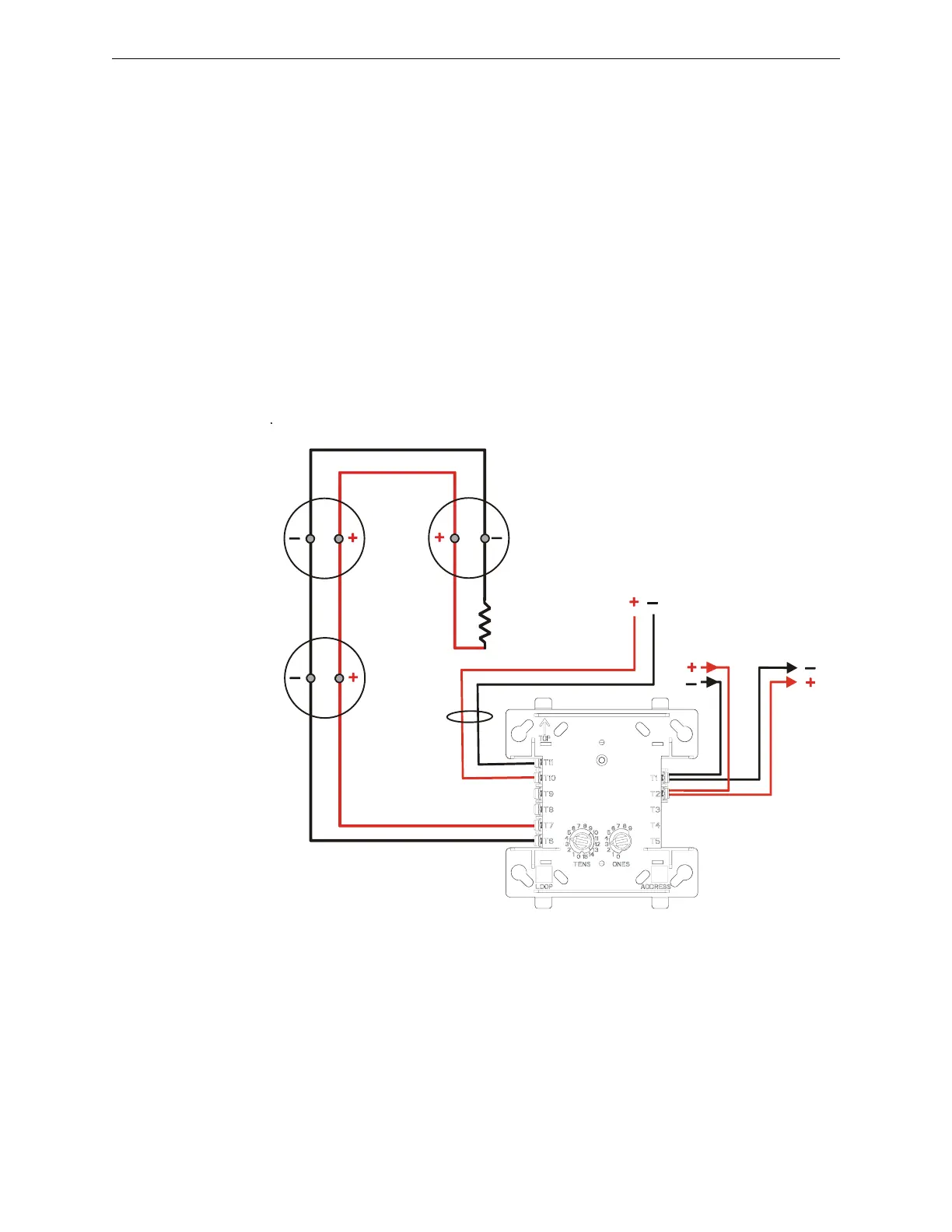

Figure 6.10 Typical Style B IDC Wiring with M302MJ
SLC
IDC
SLC-idcB2tpH.wmf
M302MJ
Two-wire
smoke
detectors
3.9K ELR
(supplied with module)
24 VDC Resettable power.
90 mA External 24 volt supply required
(Non-resettable power may be used for IFC-
320/E/C, IFC2-640/E, IFC-640/E, IFC2-3030,
or IFC-3030 when operating in FlashScan
mode.)
