Johnson Controls IFC-1010 Wiring Manual

Johnson Controls, Inc. SLC Wiring Manual — P/N 51870:G 04/23/2009 49
Wiring a Detector Base Intelligent Detector Bases
Figure 9.2 shows typical wiring of the B501B-FTXJ detector base (for use with a HARSH™
detector) connected to an SLC. An optional RA400Z Remote LED Annunciator is shown
connected to the base.

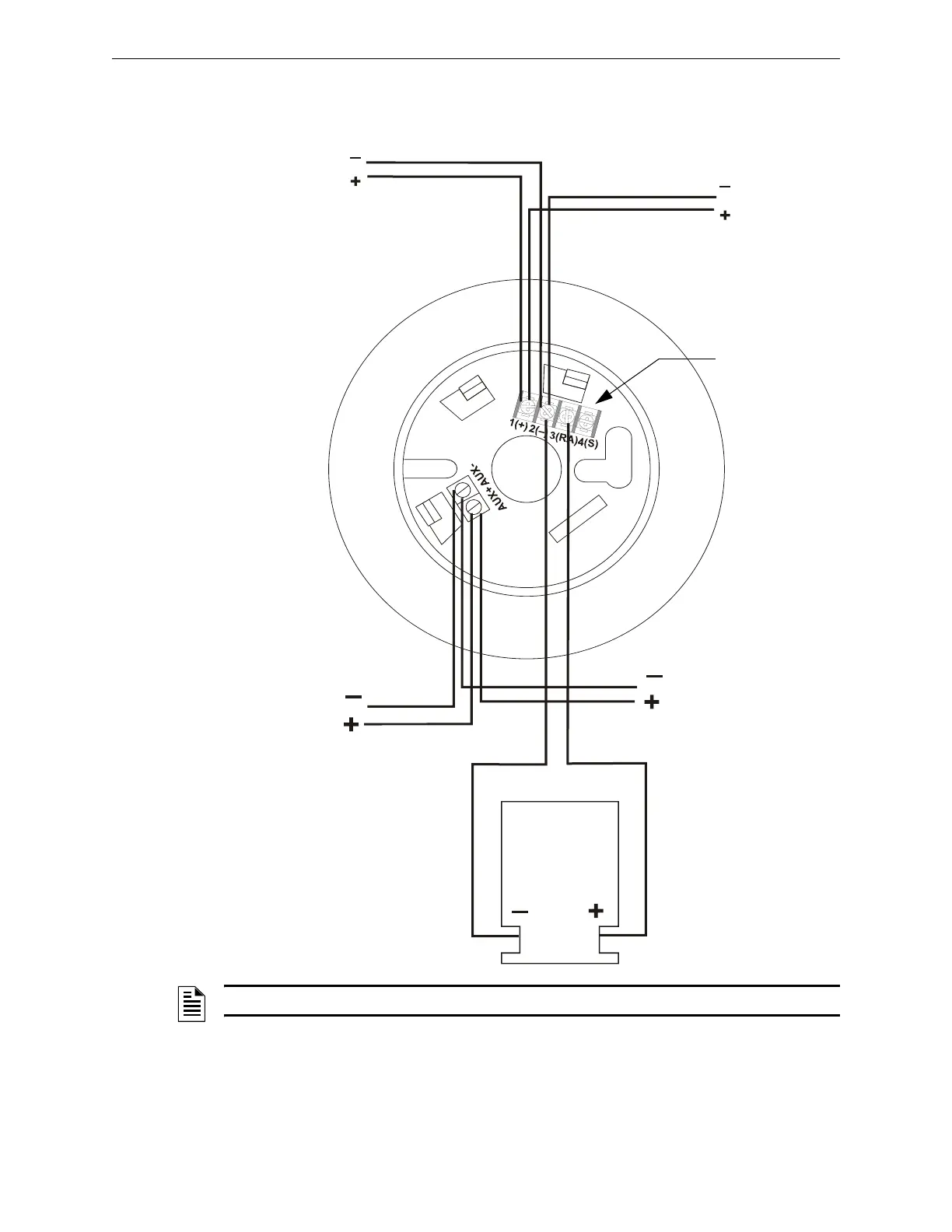

Figure 9.2 Wiring of the B501B-FTXJ Detector Base
RA400Z
Remote LED
Annunciator
(Optional)
SLC
To next device
on SLC
Power to next
device
B710HD.wmf
For connection of
cable shield
To compatible
UL Listed
Power Supply
NOTE: Use a spade lug to wire the Remote LED Annunciator (–) to Terminal 2 (–).
