116
Hardware Installation—Installing the IFC-1010/2020
P1
P4
SIB-2048
or SIB-NET
50 feet Maximum
(Typical)
Wiring distance limited by cable
capacitance. See EIA-232E standard.
nc
Plug this DB-25 connector into the
EIA-232 port of the printer.
Twisted Pair
Twisted Pair
keltrncx
Main Power Supply
TB3-3 (+)
TB3-4 (-)
MPS-24A MPS-24AE
Power-limited
DC IN (-) (+) DC IN
Keltron Printer
Model No. VS4095/5
Keltron Printer
Model No. VS4095/5
12347
5
6
7
8
SIB Connector P3 (Power-limited)

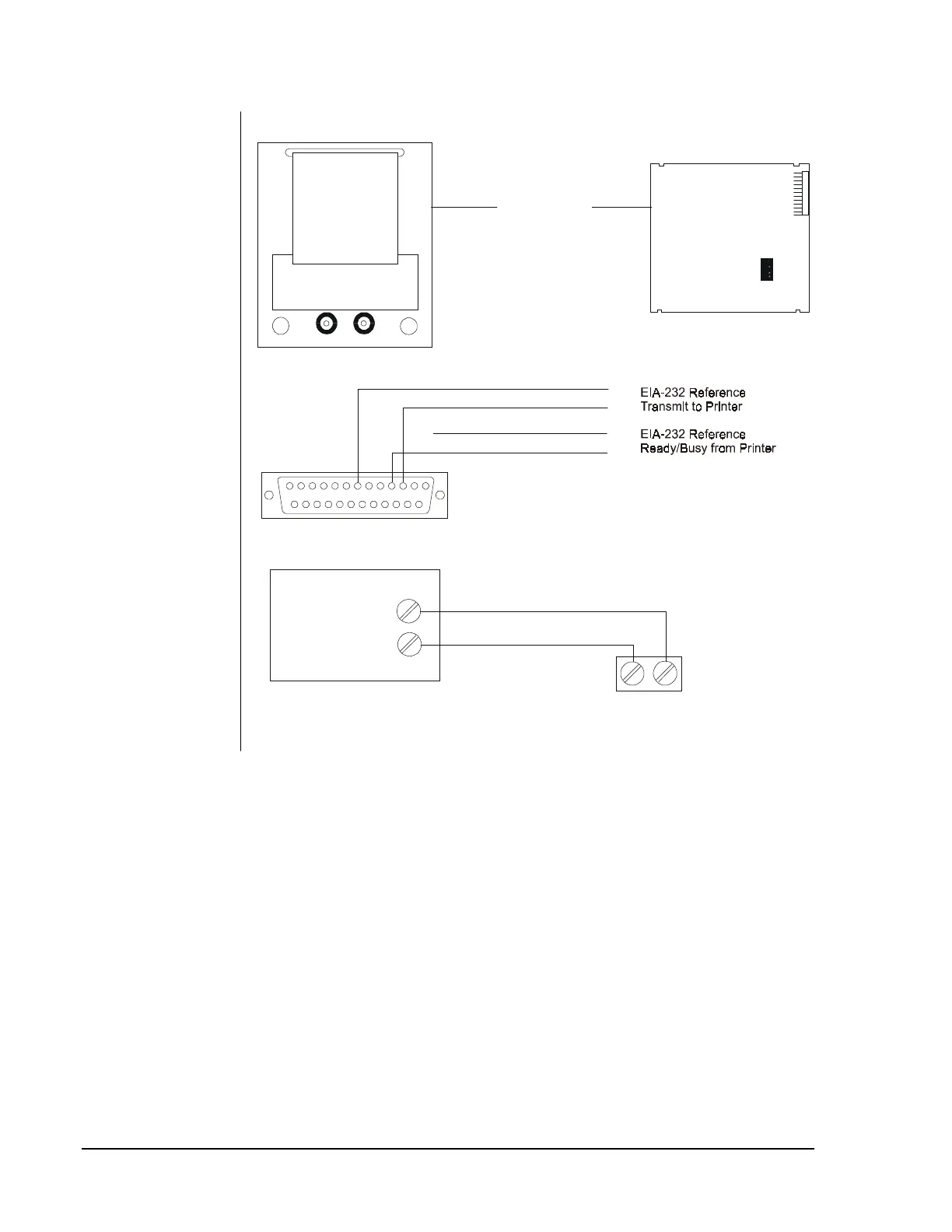

Figure 83: Keltron Printer Connections
