Johnson Controls IFC-2020 User Manual

Hardware Installation—Installing the IFC-1010/2020
93
Remote Supply
AVPS-24/E
Refer to the
for compatible devices.
Device
Compatibility Technical Bulletin
(LIT-445180)
powmod
24 VDC
3.0 Amperes (regulated and power-limited)
24 VDC Special
Application Power
3.0 Amperes (unregulated,
unfiltered and power-limited)
Shield drain wire does not
connect to M5x0CJ but
should continue to the next device.
1
2
9
8
7
6
3
4
5
M5x0CJ
To next M5x0CJ or to a
power supervision relay
at the end of the line
(refer to the next three figures).
UL Listed 24 VDC regulated
power-limited power supply for use
with Fire Protective Signaling Systems.
An auxiliary power supply is needed to power
an M5x0CJ notification appliance circuit when
wiring losses due to long wire runs prevent the
use of the MPS-24A/E or APS-6R in the
IFC-1010/2020 (refer to
).
Circuit/Device Ratings
and Connections Technical Bulletin, LIT-448160
The power supply must have a secondary power
source (i.e., batteries) with a backup capability
equal to the panel's backup (24 or 60 hours).
+24 VDC
Common
P3
P2
P4
P5
P6
TB3
MPS-24A/E
-
+
4321
APS-6R
J2 J1
TB2
J3
J4
TB3
TB1
+
+
-
-
1122
Output Circuit 1: 3A @ 24 VDC
1122
3
Output Circuit 1: 3A @ 24 VDC
Output Circuit 1: 3A @ 24 VDC
Output Circuit 1: 3A @ 24 VDC

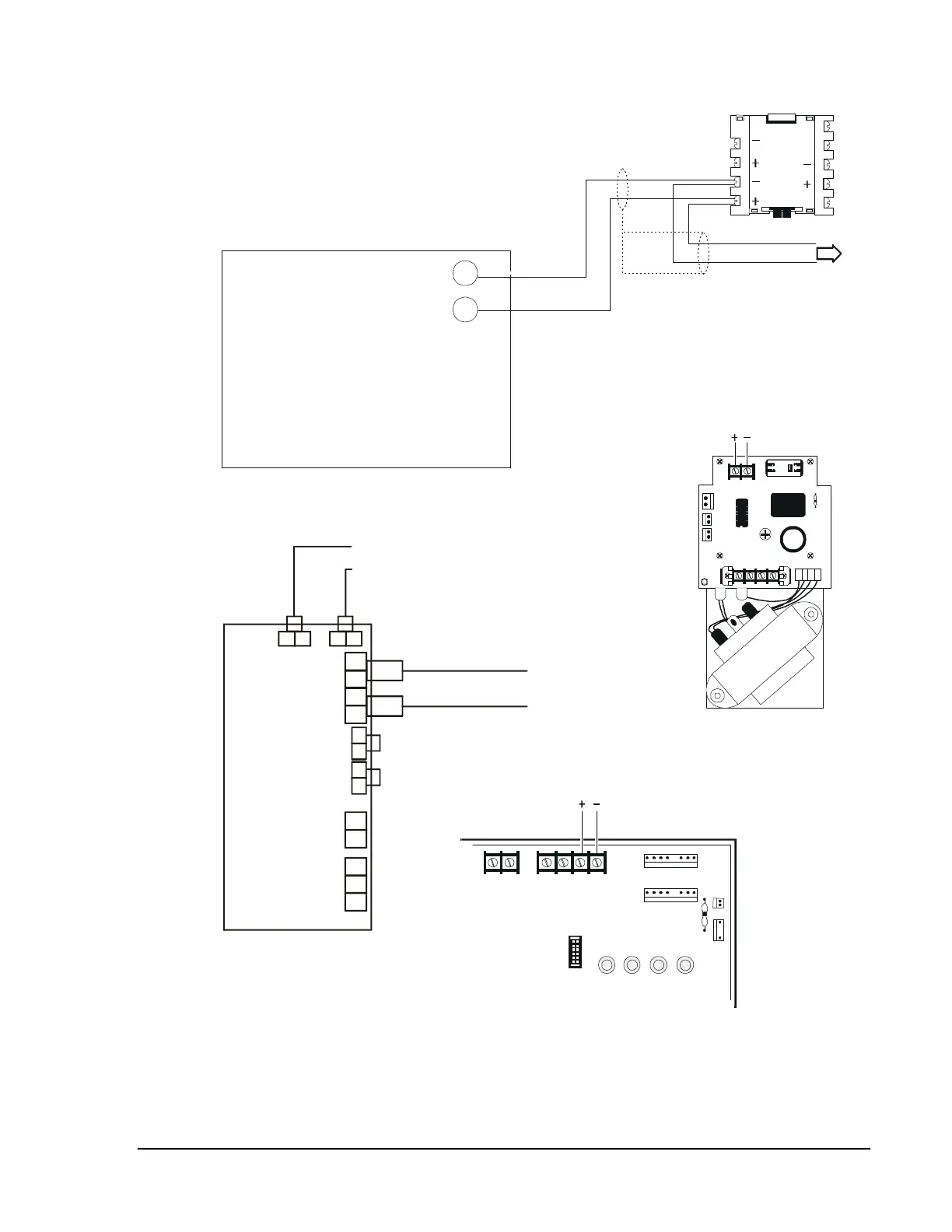

Figure 65: Providing Power to Control Modules
