Hardware Installation—Installing the IFC-1010/2020
97
M5x0CJ
Common
N.C. ContactN.O. Contact
1
5
2
6
3
7
4
8
9
Break off both tabs
to enable Form-C operation.
LIB Channel
Terminal 3 (-)
Terminal 1 (+)
Shield Drain Wire
To next device
on SLC Loop
SLC Loop Channel A
Power-limited and Supervised
cjformc
+
-

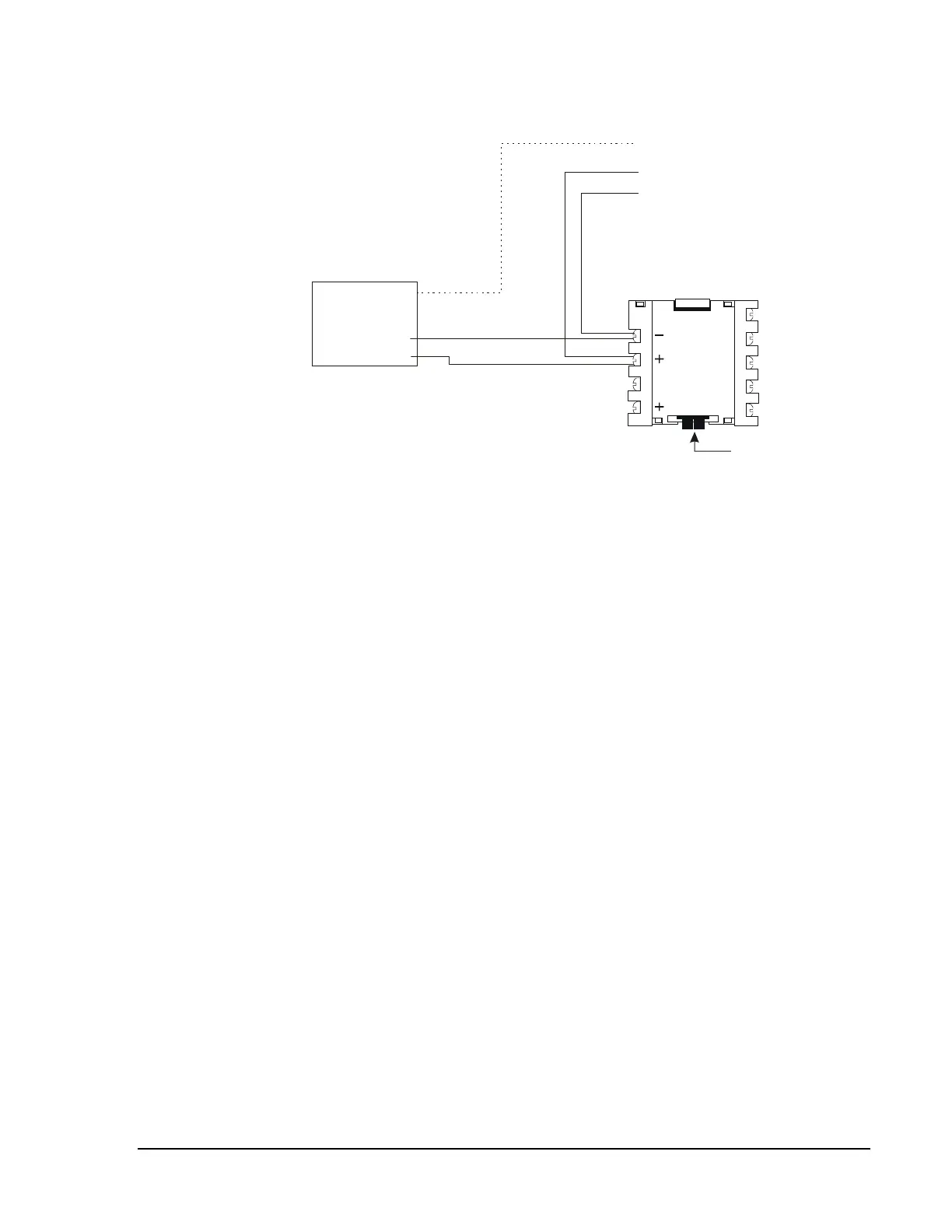

Figure 69: Using the M5x0CJ as a Form-C Relay
