FORM 145.05-EG2 (618)
36
JOHNSON CONTROLS

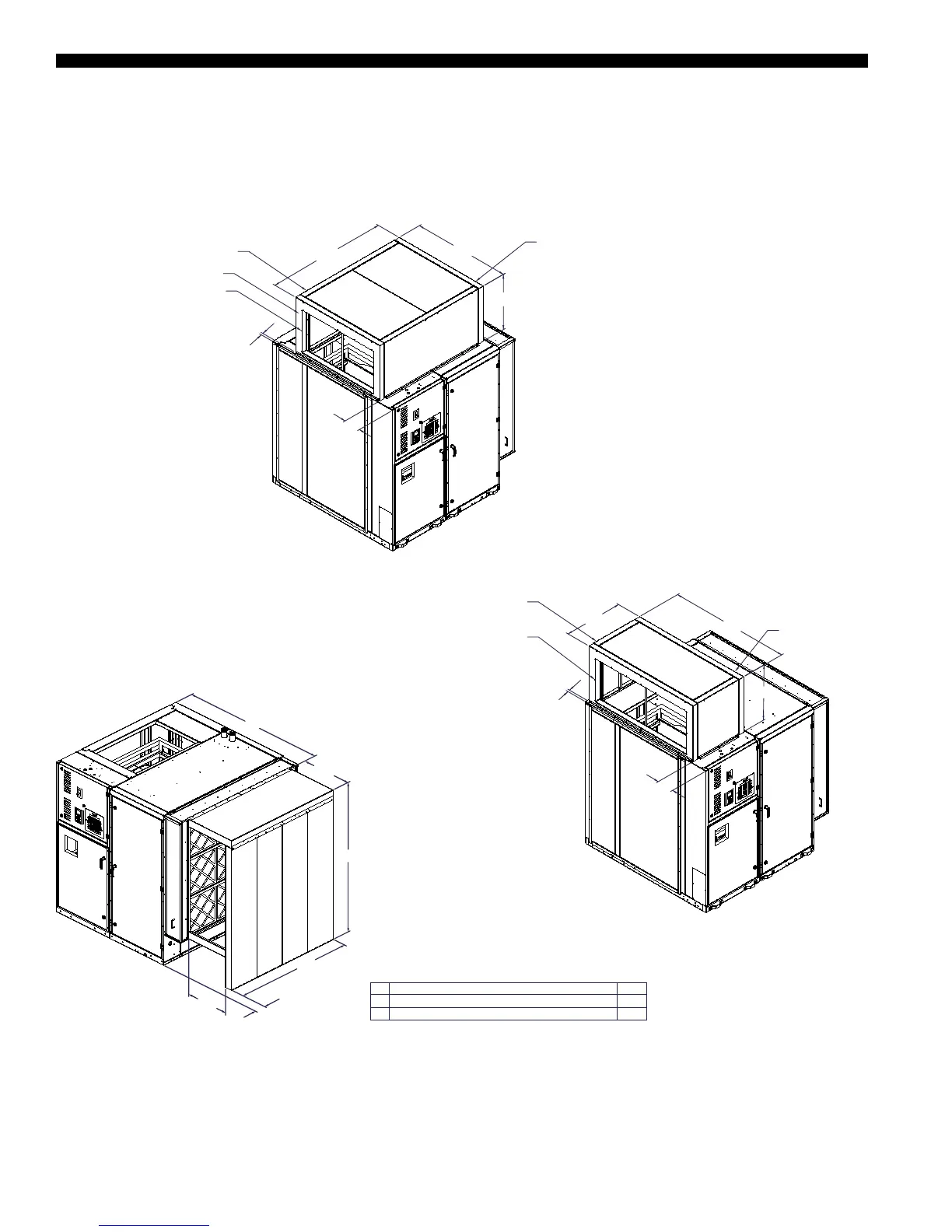

PLENUM OPTIONS
LSWU025–040 MODELS
67.38
54.75
14.25
1.04
31.22
FIELD-CUT OPENING IS STANDARD;
FACTORY-CUT OPENINGS
ARE AVAILABLE ON FOUR SIDES
FRONT
RIGHT
REAR
LEFT
OPTIONAL FULL PLENUM
NOTE: OPTIONAL HOT WA
BE INSIDE FULL PLENUM
32.75
67.38
9.25
1.04
31.23
OPENING IS STANDARD;
OPTIONAL FACTORY-CUT
OPENINGS ARE AVAILABLE
ON FRONT & REAR SIDES ONLY
FRONT
RIGHT
REAR
LEFT
OPTIONAL HALF PLENUM
(POSITIONED OVER FAN SECTION ONLY)
NO. FILTER OPTIONS "A"
1
2
4" FILTER 76.43
4" PRE-FILTER + 4" HIGH EFFICIENCY FILTER 80.68
66.09
79.38
27.94
5.95
23.94
"A"
OPTIONAL SOUND-ATTENUATING (INLET) PLENUM OPTION
NOTES:
SOUND-ATTENUATING PLENUM OPTION CAN BE COMBINED1.
WITH ANY FILTER SECTION OPTION.
SOUND-ATTENUATING PLENUM SHIPS SEPARATELY FROM2.
BASE UNIT SEGMENT(S).
OPTION IS NOT AVAILABLE WITH DUCTED CONNECTIONS.3.
WITH THIS OPTION THE TOP ROW OF FILTERS CAN ONLY BE4.
REMOVED FROM THE END OF THE FILTER RACK.
NO. FILTER OPTIONS "A"
1
2
4" FILTER 76.43
4" PRE-FILTER + 4" HIGH EFFICIENCY FILTER 80.68
66.09
79.38
27.94
5.95
23.94
"A"
OPTIONAL SOUND-ATTENUATING (INLET) PLENUM OPTION
NOTES:
SOUND-ATTENUATING PLENUM OPTION CAN BE COMBINED1.
WITH ANY FILTER SECTION OPTION.
SOUND-ATTENUATING PLENUM SHIPS SEPARATELY FROM2.
BASE UNIT SEGMENT(S).
OPTION IS NOT AVAILABLE WITH DUCTED CONNECTIONS.3.
WITH THIS OPTION THE TOP ROW OF FILTERS CAN ONLY BE4.
REMOVED FROM THE END OF THE FILTER RACK.
Dimensional Data (Cont’d)
